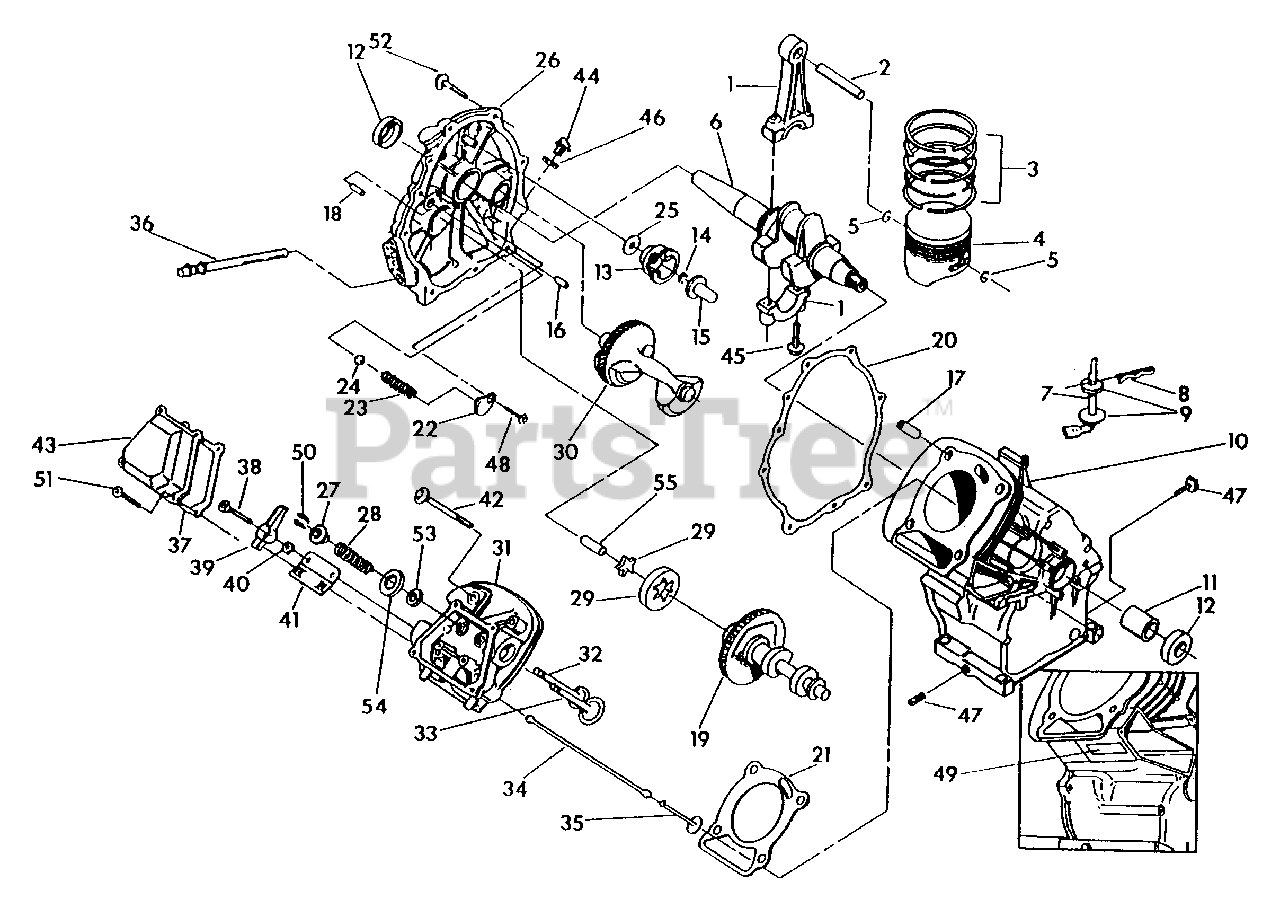

9779-1 - Generac XL 6,500 Watt Portable Generator Engine Long Block Parts Diagram

XL 6,500 Watt Portable Generator

Engine Long Block Parts Diagram

  • Title
1

Briggs & Stratton 71978

Connecting Rod with cap and bolt

$

$

Currently unavailable

$

$

Currently unavailable

3

Briggs & Stratton 71977

Piston Ring Set

$

$

Currently unavailable

$

$

Currently unavailable

5

Briggs & Stratton 71983

Piston Pin Retainer

$

$

Not available

6

Briggs & Stratton 76378

Crankshaft Assm. with gears

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Briggs & Stratton 78658

Governor Arm "R" Pin

$

$

Not available

9

Briggs & Stratton 78659

Governor Arm Washer

$

$

Not available

10

Briggs & Stratton 88261

Crankcase H.S. w/plugs

$

$

Currently unavailable

11

Briggs & Stratton 72654

Sleeve Bearing

$

$

Currently unavailable

12

Briggs & Stratton 72655

Crankshaft Seal

$11.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 83912

Governor Gear Assembly

$

$

Currently unavailable

14

Briggs & Stratton 78645

Governor Retainer ("C" Ring)

$

$

Not available

15

Briggs & Stratton 76365

Governor Spool

$

$

Currently unavailable

16

$

$

Currently unavailable

17

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Briggs & Stratton 83932

Camshaft Assembly

$

$

Currently unavailable

20

Briggs & Stratton 76701

Crankcase Gasket

$

$

Not available

21

Briggs & Stratton 73142

Cylinder Head Gasket
(Superseded to 7073142YP)

$16.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 78691

Oil Pressure Relief Cover

$

$

Not available

23

Briggs & Stratton 83918

Pressure Relief Spring

$

$

Currently unavailable

24

Briggs & Stratton 76362

Pressure Relief Ball

$

$

Currently unavailable

25

Briggs & Stratton 76361

Thrust Washer

$

$

Not available

26

$

$

Currently unavailable

27

Briggs & Stratton 86514

Valve Spring Retainer

$

$

Not available

28

Briggs & Stratton 91308

Valve Spring
(Superseded to 690281)

$31.99

$

Usually ships in 2-12 days

0

29

$

$

Not available

$

$

Currently unavailable

31

Briggs & Stratton 83923

Cylinder Head with Valve Seat and Guides

$

$

Currently unavailable

32

Briggs & Stratton 86516

Exhaust Valve

$

$

Not available

33

$

$

Not available

$

$

Currently unavailable

$

$

Not available

36

Briggs & Stratton 77158

Oil Pick-up Assembly

$

$

Not available

37

Briggs & Stratton 71987

Rocker Cover Gasket
(Superseded to 7071987YP)

$12.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72694

Pivot Ball Stud

$

$

Not available

39

$

$

Not available

40

Briggs & Stratton 72696

Jam Nut, Rocker Arm

$

$

Currently unavailable

41

Briggs & Stratton 78694

Push Rod Guide Plate

$

$

Not available

42

Briggs & Stratton 73149

Head Bolt-M10 x 100mm

$

$

Currently unavailable

43

Briggs & Stratton 83938

Rocker Cover Breather Asm.

$

$

Not available

44

Briggs & Stratton 76329

Oil Fill Plug

$

$

Not available

45

Briggs & Stratton 71979

Connecting Rod Bolt

$

$

Currently unavailable

$

$

Currently unavailable

47

Briggs & Stratton 26925

PLUG, Pipe, NPT, 3/8"
(Superseded to 691599)

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 78692

Screw-M5-0.8 x 8mm

$

$

Currently unavailable

$

$

Currently unavailable

50

Briggs & Stratton 86515

Valve Spring Keeper

$

$

Not available

51

Briggs & Stratton 78606

M6-1.0 x 12mm Screw with Washer

$

$

Currently unavailable

52

Briggs & Stratton 73144

Flange Bolt M8-1.25 x 45mm

$

$

Currently unavailable

53

Briggs & Stratton 78672

Valve Stem Seal

$

$

Not available

54

Briggs & Stratton 89673

Valve Spring Washer

$

$

Not available

55

Briggs & Stratton 83921

Gen. Bearing Tube Shaft

$

$

Currently unavailable
