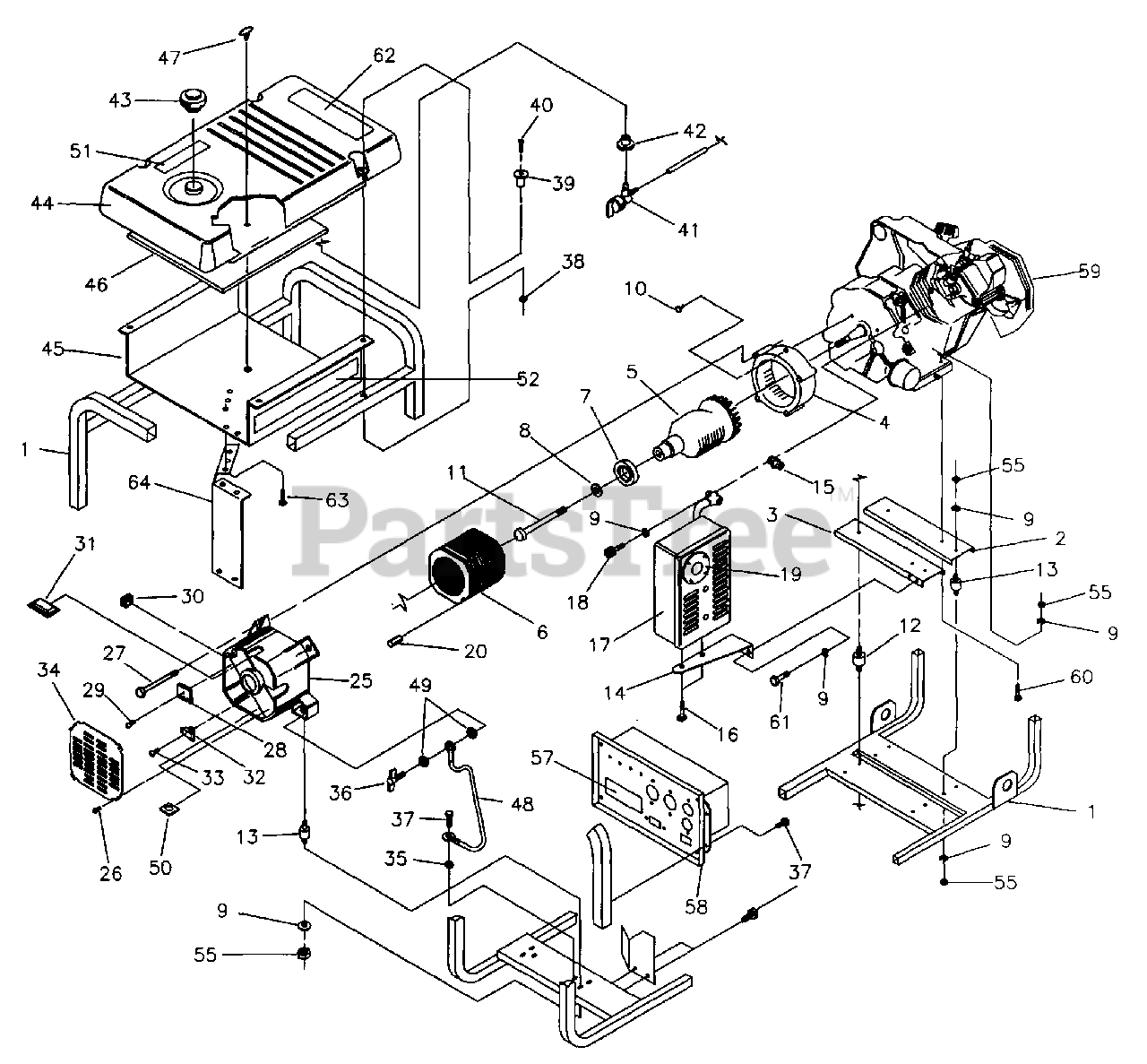

9778-6 - Generac XL 5,500 Watt Portable Generator Generator Parts Diagram

XL 5,500 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 92432

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton 92531

SUPPORT, ENGINE

$

$

Currently unavailable

3

Briggs & Stratton 92731

SUPPORT, ENGINE & MUFFLER
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247

HOUSING, ENGINE ADAPTOR
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92678G

ASSEMBLY, ROTOR
(Superseded to 92678GGS)

$

$

Not available

6

Briggs & Stratton 92680G

ASSEMBLY, STATOR
(Superseded to 92680GGS)

$

$

Not available

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796

WASHER, M8 FLAT
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22129

WASHER, M8 LOCK
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

SCREW
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 28092

SCREW
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609

MOUNT, VIBRATION
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

MOUNT, VIBRATION
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532

BRACKET, MUFFLER
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239

GASKET, EXHAUST
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476

SCREW
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 91153

MUFFLER
(Superseded to A7433GS)

$

$

Not available

18

Briggs & Stratton 40976

SCREW

$

$

Not available

19

Briggs & Stratton 83083

SCREEN, SPARK ARREST
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 81917

PIN, 4mm X 10 roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825C

CARRIER, REAR BEARING
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908

PATITIE
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308A

BOLT
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

RECTIFIER, BATT CHARGE
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849A

TAPTITE
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

GROMMET, RUBBER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132

ASSEMBLY, POWER REGULATOR
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66386

ASSEMBLY, BRUSH HOLDER
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 66849

TAPTITE
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67025

COVER, BEARING CARRIER

$

$

Currently unavailable

35

Briggs & Stratton 22769

WASHER
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

SCREW
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395

NUT, M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

GROMMET, TANK
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 79931B

HHMS, M6

$

$

Currently unavailable

41

Briggs & Stratton 80270

VALVE, TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

BUSHING, PLASTIC TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 94834

CAP, FUEL
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 93595

TANK, FUEL
(Superseded to 193500GS)

$

$

Not available

45

Briggs & Stratton 92039

SHIELD, HEAT

$

$

Currently unavailable

46

Briggs & Stratton 92665

INSULATION
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

CLIP, INSULATION
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

WIRE, GROUND

$

$

Not available

49

Briggs & Stratton 26850

WASHER, M6

$

$

Not available

50

Briggs & Stratton 57593

MOUNT, CABLE TIE
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982

DECAL, DANGER
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 92611

DECAL, HEAT SHIELD

$

$

Not available

55

Briggs & Stratton 25244

NUT
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 92639

DECAL, CONTROL PANEL
(Superseded to 92639GS)

$5.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 92630

ASSEMBLY, CONTROL PANEL
(Superseded to 92630GS)

$490.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton ~NSP

ENGINE, GPS GN320

$

$

Currently unavailable

60

Briggs & Stratton 22531

HHCS
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 22142

SCREW
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93826

DECAL, START INSTRUCTIONS
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 56893

SCREW
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

64

Briggs & Stratton 96068

HEAT SHIELD

$

$

Currently unavailable
