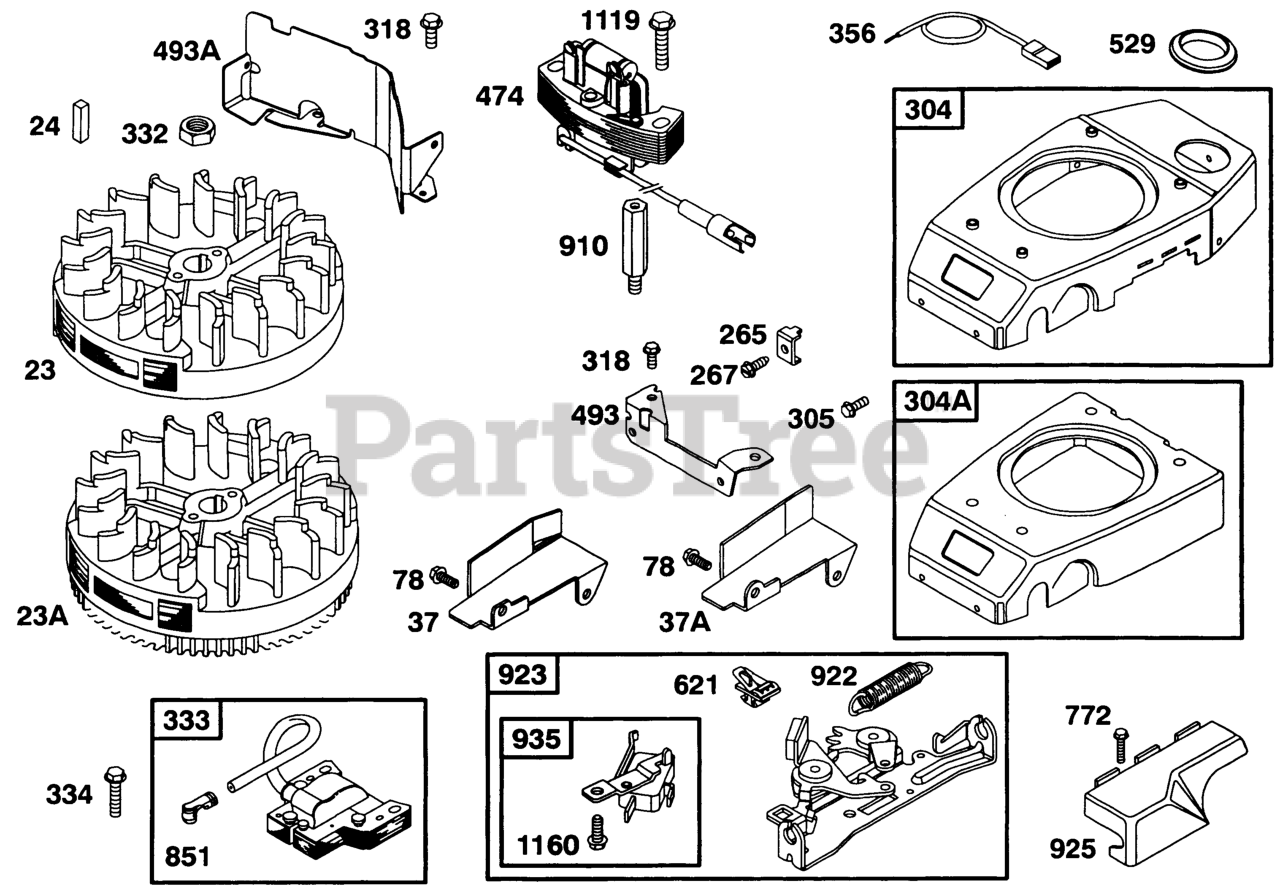

97777-0122-01 - Briggs & Stratton Vertical Engine Blower Hsg, Flywheels, Elect Parts Diagram

Vertical Engine

Blower Hsg, Flywheels, Elect Parts Diagram

  • Title

23A

Briggs & Stratton 691987

Flywheel

$112.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 692315

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

Key-Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37A

Briggs & Stratton 224402

Guard-Flywheel

$8.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 224685

Guard-Flywheel

$7.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 94786

Screw (Flywheel Guard)
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 691044

SCREW

$3.99

$

In Stock, Qty 6

0

304A

Briggs & Stratton 497216

Housing-Blower (Compliance)(less Fuel Tank)

$52.99

$

Usually ships in 2-12 days

0

304A

Briggs & Stratton 494941

Housing-Blower (Non-compliance)(rewind Starter Less Fuel Tank)

$67.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 493326

Housing-Blower (Compliance)(electric Starter)

$54.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 493327

Housing-Blower (Compliance)(electric Starter)

$

$

Not available

304

Briggs & Stratton 494051

Housing-Blower (Non-compliance)(rewind Starter)

$

$

Not available

304

Briggs & Stratton 497028

Housing-Blower (Compliance)(electric Starter)

$

$

Not available

305

Briggs & Stratton 94582

Screw (Blower Housing)

$3.99

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 94786

Screw (Mounting Bracket)
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

332

Briggs & Stratton 690662

Nut

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 691991

Alternator

$118.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 224395

Bracket-Mounting

$7.49

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 224686

Bracket-Mounting

$64.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 281050

Grommet

$5.49

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

772

Briggs & Stratton 691648

Screw (Linkage-Cover)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

910

Briggs & Stratton 691094

Stud (Alternator)

$10.99

$

In Stock, only 2 left!

0

922

Briggs & Stratton 691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 691994

Brake
(Superseded to 796387)

$

$

Not available

925

Briggs & Stratton 281046

Cover-Linkage

$6.99

$

Usually ships in 2-12 days

0

935

Briggs & Stratton 398758

Switch-Interlock
(Superseded to 499421)

$31.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691648

Screw (Alternator)

$4.99

$

Usually ships in 2-12 days

0

1160

Briggs & Stratton 691627

Screw
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0
