9777-4 - Generac XL 4,000 Watt Portable Generator Main Unit Parts Diagram

XL 4,000 Watt Portable Generator

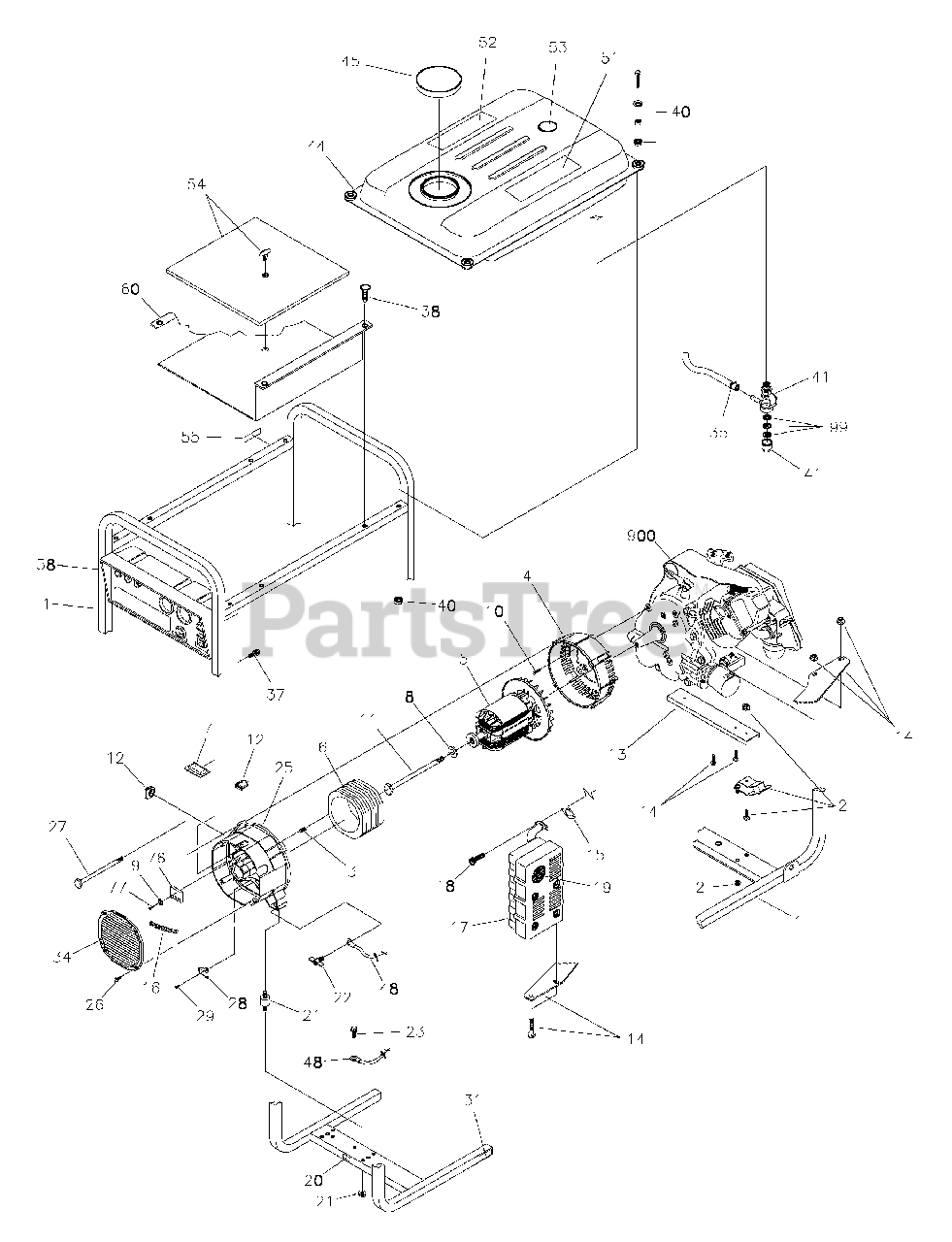

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M197027GS

CRADLE

$362.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194552GS

KIT,Vibration Mount

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 81917GS

PIN, Roll M4 x 10

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141JGS

ASSY, Rotor

$278.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83540AGS

ASSY, Stator
(Superseded to 187105AGS)

$

$

Not available

7

Briggs & Stratton 84132GS

ASSY, Drive Module Pwr Reg

$126.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Shakeproof #10

Note: (Purchase locally)

$

$

Not available

10

HHCS, 5/16-24 x 3/4 Lg.

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7" Lg.

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton M84021GS

SUPPORT, Engine, Red

$20.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 194578GS

KIT, Muffler Bracket w/ Hardware

$26.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 89476GS

GASKET, Exhaust

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84409GS

SLEEVING, Flexo, HW 1/2" x 10"

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 83071GS

MUFFLER

$

$

Not available

18

SHCS, M8 1.25 x 20 Lg.

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10 Lg.

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308GS

BOLT, M6 - 1.0 x 115

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66386GS

ASSY, Brush Holder

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 66849GS

TAPTITE, M5 0.8 x 16 Lg.

$4.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 189568GS

CLAMP, Hose

$5.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

HHCS, 12 - 14 x 7/8 Self Drill

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B1797GS

CLIP,Tree

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 193661GS

KIT, Fuel Tank Hardware

$

$

Not available

41

Briggs & Stratton 189133GS

KIT,Valve,Tank
(Superseded to 310573GS)

$11.99

$

In Stock, Qty 15

0

44

Briggs & Stratton 193574GS

ASSY,Tank, Fuel
(Superseded to 193680GS)

Note: (Includes Items 41, 51 & 52)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP,Tank Fuel,Vented

$20.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 93826GS

DECAL, Operating Instructions

$14.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189136GS

GAUGE, Fuel

$18.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194527GS

KIT, Insulation w/ Clip

$37.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 191545GS

DECAL, Fuel Shut Off

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 87116GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

60

Briggs & Stratton J84042GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

77

Briggs & Stratton 66849AGS

TAPTITE, M5 0.8 x 20 Lg.

$4.49

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton BB3061GS

OIL BOTTLE

Note: Not Shown

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483GS

PLUG, 250V 20A 4-Prong
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

PLUG, 125V 30A 3-Prong

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 70185GS

OIL FILTER

Note: Not Shown

$

$

Not available

Briggs & Stratton 78601GS

AIR CLEANER

Note: Not Shown

$13.99

$

In Stock, Qty 6

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Not Shown

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193524GS

MANUAL, Owners

Note: Not Shown

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A8926GS

MANUAL, Engine

Note: Not Shown

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84882GS

WRENCH, Spark Plug

Note: Not Shown

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 72347GS

SPARK PLUG
(Superseded to 491055S)

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

Briggs & Stratton 84895GS

COVER, Storage
(Superseded to B4767GS)

Note: Not Shown

$108.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193575GS

KIT, Decals

Note: Not Shown

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessories Not

$29.99

$

Usually ships in 2-12 days

0
