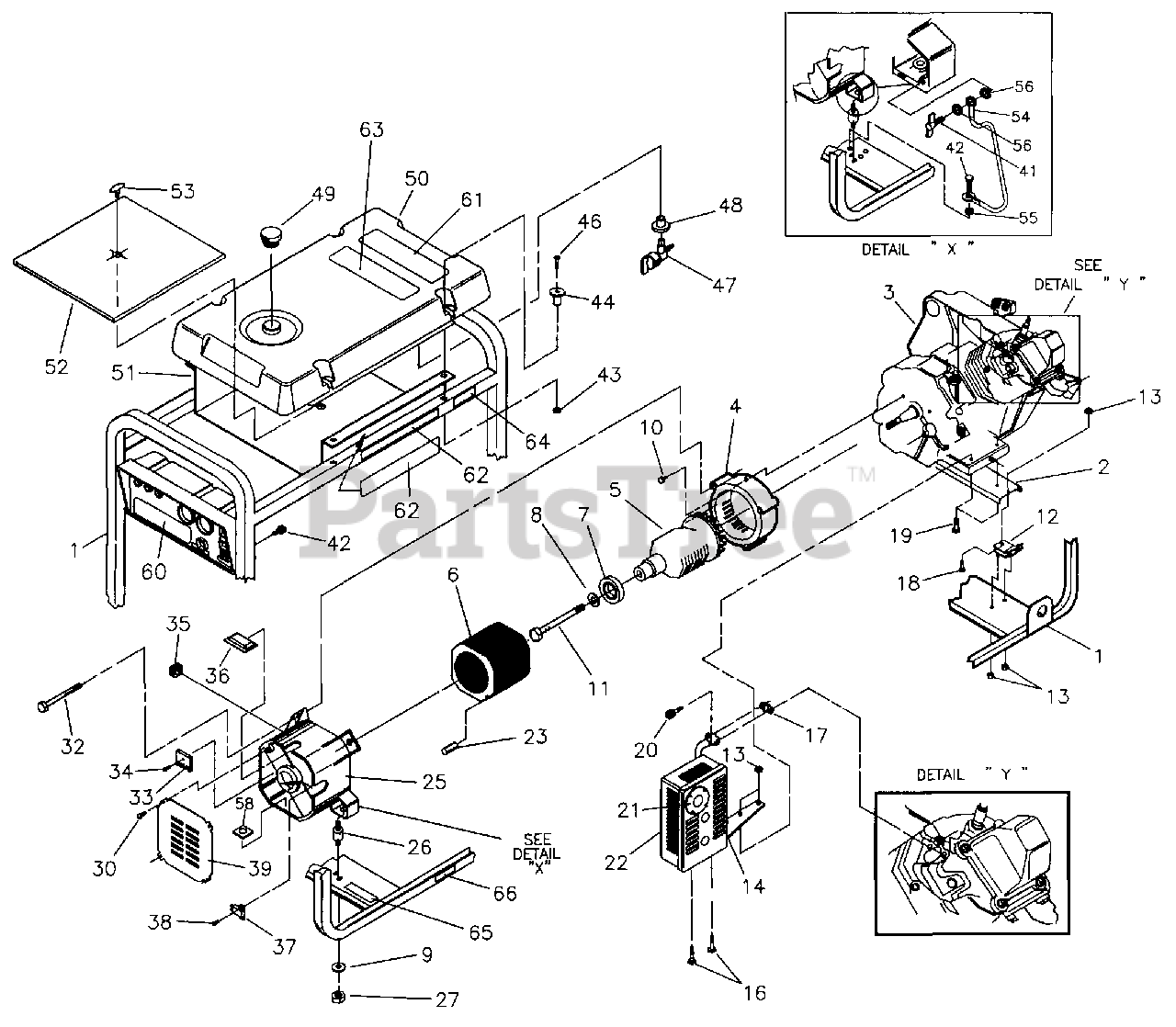

9777-1 - Generac XL 4,000 Watt Portable Generator Generator Parts Diagram

XL 4,000 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 93199

CRADLE, XL
(Superseded to M197027GS)

$362.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84021

SUPPORT, Engine
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton ~NSP

ENGINE, ENG A1388

$

$

Currently unavailable

4

Briggs & Stratton 66365

HOUSING, Engine Adapter
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141

ASSEMBLY, Rotor

$

$

Currently unavailable

6

Briggs & Stratton 83540

ASSEMBLY, Stator

$

$

Currently unavailable

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

WASHER, M8 Flat

$

$

Currently unavailable

9

Briggs & Stratton 22129

WASHER, M8 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

HHMS, 5/16-24 x 3/4 Lg.
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47480

HHCS, 5/16-24 x 7" Lg.
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508

MOUNT, Vibration 45°.
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 52858

NUT, M8 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 83208

BRACKET, Muffler
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476

HHMS, LW M6 1.00 x 12 Lg.
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89476

GASKET, Exhaust
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644

PPHMS, M8 1.25 x 20 Lg.
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

PPHMS, M8 x 35 Lg.
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976

SHCS, M8 1.25 x 20 Lg.

$

$

Not available

21

Briggs & Stratton 83083

SCREEN, Spark Arrest
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 83071

MUFFLER
(Superseded to 83071GS)

$

$

Not available

23

Briggs & Stratton 81917

PIN, Roll M4 x 10
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

26

Briggs & Stratton 85652

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 7

0

27

Briggs & Stratton 45771

NUT, M8 Hex

$

$

Not available

30

Briggs & Stratton 74908

TAPTITE, M5-0.8 x 10 Lg.
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 86308

BOLT, M6-1.0 x 115
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

34

Briggs & Stratton 66849A

TAPTITE, M5 0.8 x 20 Lg.
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

ASSEMBLY, Drive Module Pwr Reg.
(Superseded to 84132GS)

$126.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 66386

ASSEMBLY, Brush Holder
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 66849

TAPTITE, M5 0.8 x 16 Lg.
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

39

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

41

Briggs & Stratton 86494

SCREW, M6-1.0 x 16 Lg. Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 86292

HHCS, 10-16 x Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 77395

NUT, M6 Flange Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465

GROMMET, Tank
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

46

Briggs & Stratton 78831B

HHMS, M6 1.0 x 60 (blk)
(Superseded to 78831BGS)

$

$

Not available

47

Briggs & Stratton 80270

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134

CAP, Fuel
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 88325

TANK, Fuel
(Superseded to 195617GS)

$

$

Not available

51

Briggs & Stratton 84042

SHIELD, Heat

$

$

Currently unavailable

52

Briggs & Stratton 84687

INSULATION, #2-1/4" Thick
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

54

14353621

WIRE, Ground

$

$

Not available

55

Briggs & Stratton 23762

WASHER, Shakeproof #10
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850

WASHER, M6 Shakeproof

$

$

Not available

58

Briggs & Stratton 57593

MOUNT, Cable Tie
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 92810

DECAL, Control Panel

$

$

Not available

61

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 92610

DECAL, Heat Shield
(Superseded to 92610GS)

$16.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 93826

DECAL, Operating Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

64

UNKNOWN

$

$

Not available

65

UNKNOWN

$

$

Not available

66

UNKNOWN

$

$

Not available
