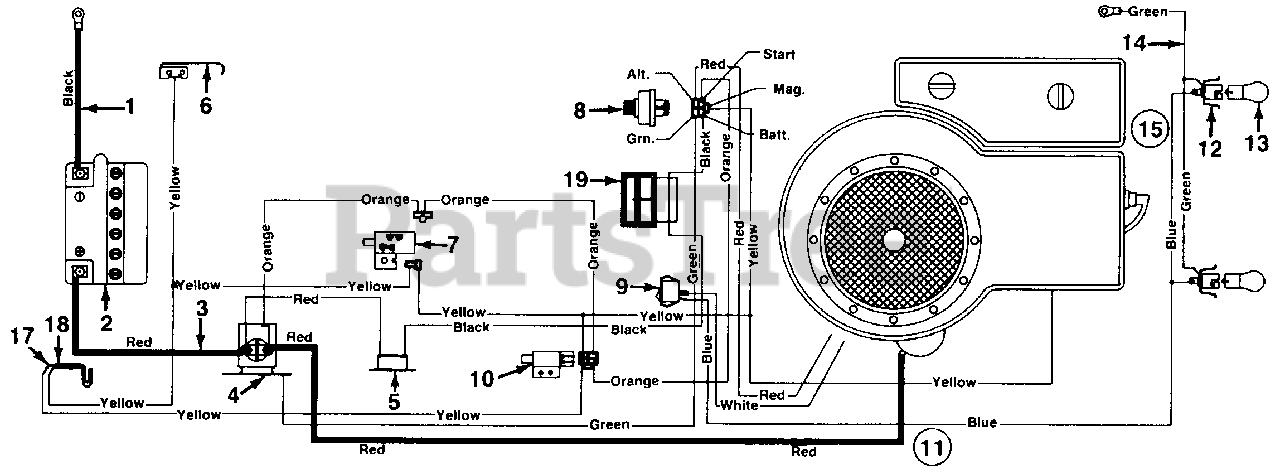

97008 (131A451F062) - Task Force Lawn Tractor (1991) (Lowes) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0976A

Ground Wire

$

$

Not available

2

MTD 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

3

MTD 725-1351

Electric Wire-8.0" Lg.

$

$

Not available

4

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

5

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

6

MTD 732-0758

Spring Switch
(Superseded to 753-0580)

Note: (Reverse)

$

$

Not available

7

MTD 725-0819A

Safety Switch
(Superseded to 925-0819A)

Note: (Deck)

$30.99

$

Usually ships in 3-6 days

0

8

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

10

MTD 725-3169A

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$24.99

$

In Stock, Qty 8

0

11

MTD 725-1475

Harness

Note: (B&S)

$

$

Not available

MTD 629-0031

Harness

$

$

Not available

MTD 629-0032

Harness

Note: (Tec.) -Style 1

$

$

Not available

12

MTD 725-1058A

Socket
(Superseded to 925-1058A)

Note: (Sq. Headlights)

$

$

Not available

MTD 725-1458

Socket

Note: (Sq. Headlights) -Style 1

$

$

Not available

13

MTD 725-0963

Bulb
(Superseded to 925-0963)

Note: (Sq. Headlights)

$7.49

$

In Stock, only 1 left!

0

14

MTD 725-0916A

Ground Wire

$

$

Not available

15

MTD 725-1477

Headlight Harness

$

$

Not available

MTD 629-0051

Headlight Harness

Note: (Style 1)

$

$

Not available

MTD 725-0222

Headlight (Round)
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

17

MTD 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

18

MTD 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 10

0

19

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Style 1)

$31.99

$

In Stock, Qty 6

0
