97-40BM01 - Toro 40" Grader Blade (1981) SNOW BLADE-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 96-42BX01 Parts Diagram

40" Grader Blade

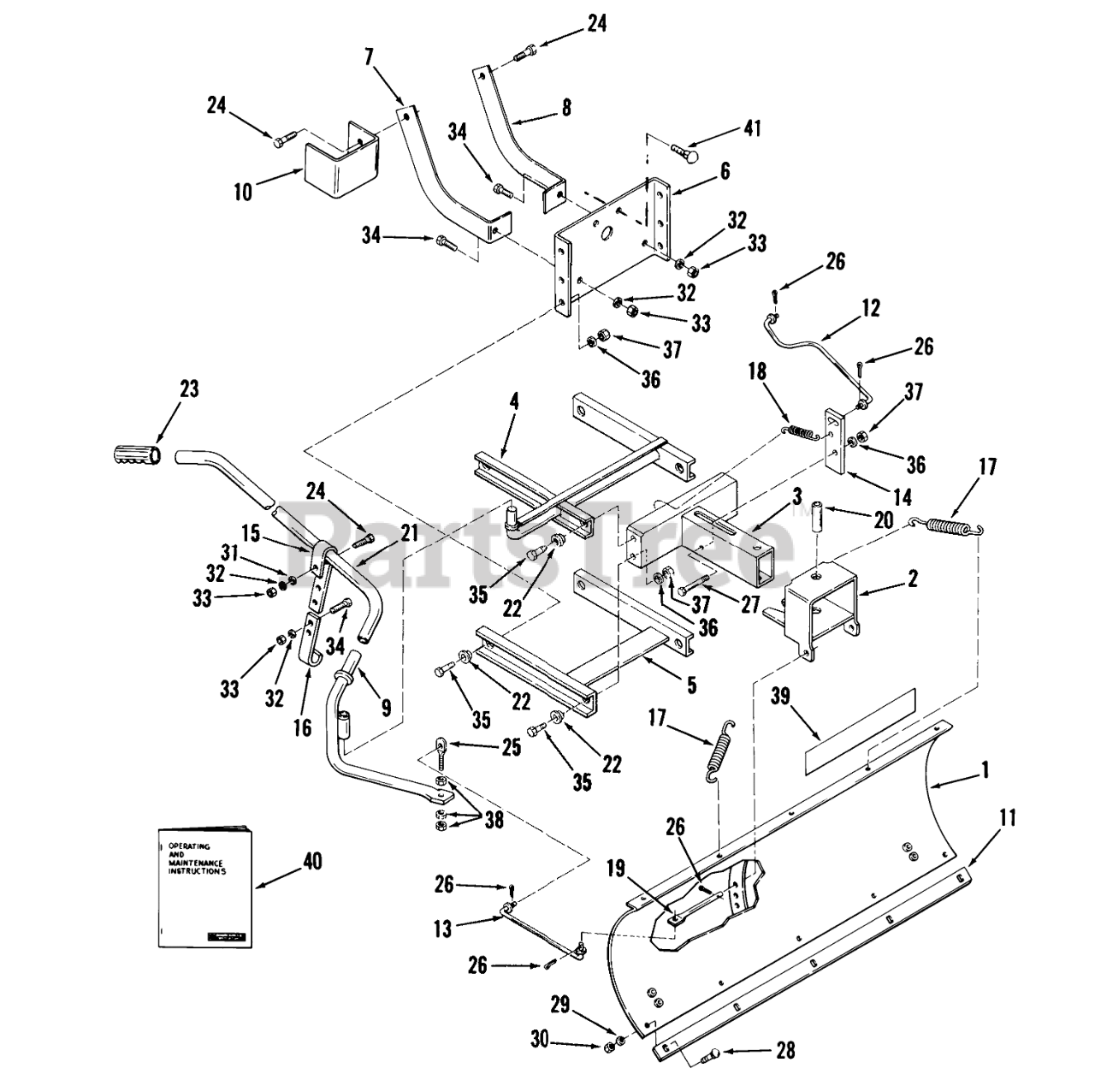

SNOW BLADE-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 96-42BX01 Parts Diagram

  • Title

1

Toro 226350

Blade

$

$

Currently unavailable

2

Toro 226351

Quadrant

$

$

Not available

3

Toro 226352

Frame

$

$

Not available

4

Toro 226353

Upper Parallel Bar

$

$

Not available

5

Toro 226354

Lower Parallel Bar

$

$

Not available

6

Toro 226355

Frame Mount

$

$

Not available

7

Toro 226356

R.H. Frame Mount Brace

$

$

Not available

8

Toro 226357

L.H. Frame Mount Brace

$

$

Not available

9

Toro 226358

Lower Handle

$

$

Not available

10

Toro 226359

Latch Bracket

$

$

Not available

11

Toro 226360

Blade Edge

$

$

Not available

12

Toro 226361

LINK INDEX

$

$

Not available

13

Toro 226362

Pivot Link

$

$

Not available

14

Toro 226363

Index Bar

$

$

Not available

15

Toro 226364

Upper Latch

$

$

Not available

16

Toro 226373

Lower Latch

$

$

Not available

17

Toro 226365

Trip Spring

$

$

Not available

18

Toro 226366

SPRING-TENSION

$

$

Not available

19

Toro 226367

PIN-QUADRANT

$

$

Not available

20

Toro 226368

ROD-QUADRANT

$

$

Not available

21

Toro 226369

Extension Handle

$

$

Not available

22

Toro 226370

SPACER-PAR BAR

$

$

Not available

23

Toro 226371

GRIP-HANDLE BAR

$

$

Not available

24

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

25

Toro 226372

Eye Bolt

$

$

Not available

26

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 908040

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

28

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

29

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

30

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

31

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

32

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

33

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

34

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

35

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

36

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

37

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

38

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

39

Toro 106601

Decal-Rear
(Superseded to 10-8580)

$

$

Not available

40

Toro 810015R1

Operating and Maintenance Instructions

$

$

Currently unavailable

41

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0
