97-36TL01 - Toro 36" Tiller Attachment (1979) TILLER-50 IN. (127 CM)(VEHICLE IDENTIFICATION NUMBER 97-50TL01) Parts Diagram

36" Tiller Attachment

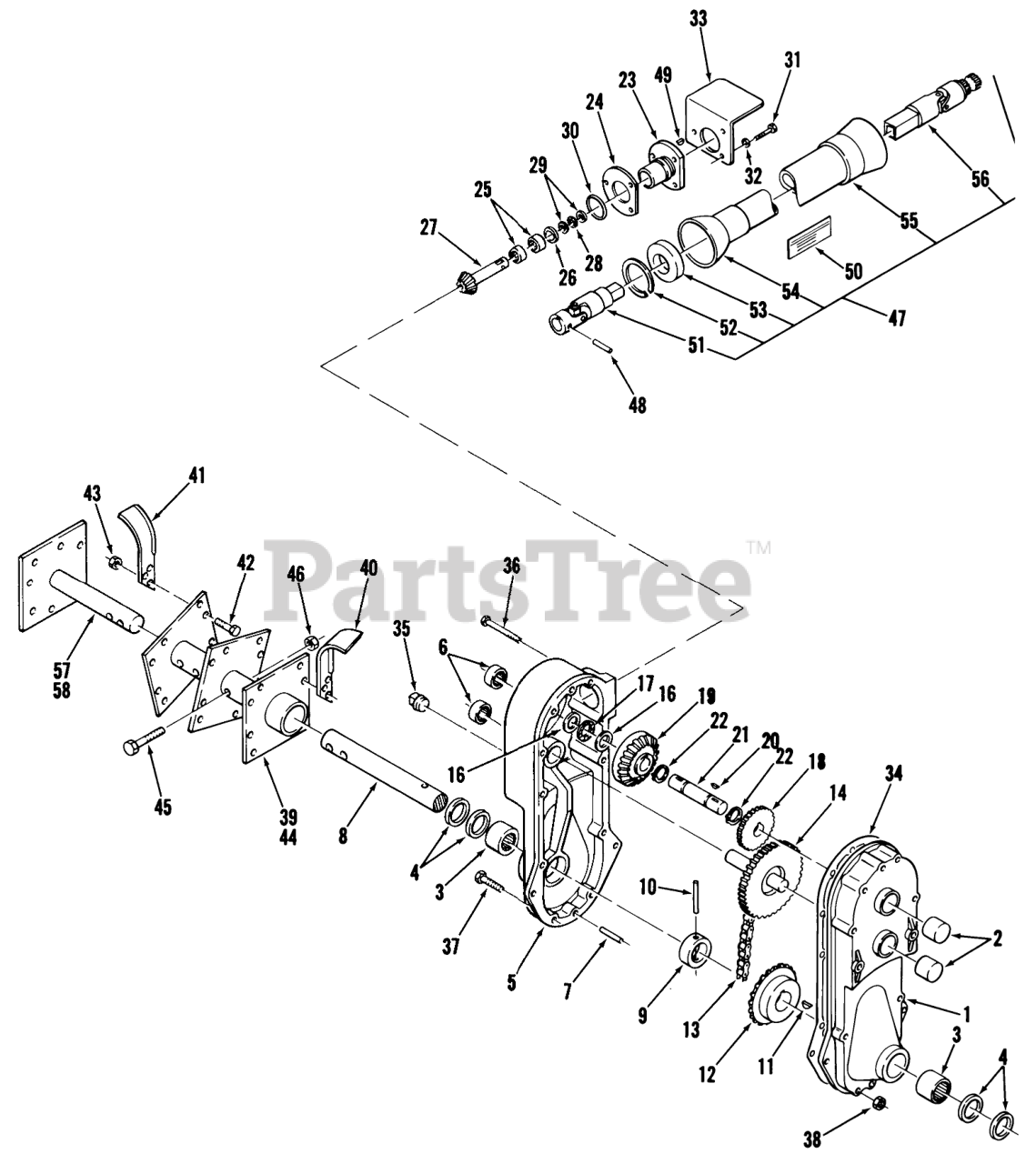

TILLER-50 IN. (127 CM)(VEHICLE IDENTIFICATION NUMBER 97-50TL01) Parts Diagram

  • Title

1

Toro 101974

Case-R.H.

$

$

Not available

2

Toro 9423

BEARING-NEEDLE 1X1

$

$

Not available

3

Toro 9409

Needle Bearing 11/2 x 1

$

$

Not available

4

Toro 6663

SEAL-OIL

$11.99

$

In Stock, only 1 left!

0

5

Toro 101975

Case-L.H.

$

$

Not available

6

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

7

Toro 933242

ROLL PIN 3/8 X 1

$

$

Not available

8

Toro 100878

Tine Shaft 1 1/2 Dia.

$

$

Not available

9

Toro 100879

Spacer

$

$

Not available

10

Toro 933234

Spirol Pin 5/16 x 2 1/2

$

$

Not available

11

Toro 937045

Key #129 Woodruff

$

$

Not available

12

Toro 100881

Sprocket-20 T-#60

$

$

Not available

13

Toro 103102

Chain #60-3/4 P x 44 P

$

$

Not available

14

Toro 107701

GEAR ASSY

$

$

Not available

16

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

17

Toro 9865

BEARING-THRUST
(Superseded to 252-66)

$12.99

$

In Stock, only 2 left!

0

18

Toro 5963

GEAR

$

$

Not available

19

Toro 100430

Bevel Gear 40 T

$

$

Not available

20

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

21

Toro 100880

SHAFT

$

$

Not available

22

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 16

0

23

Toro 101973

HOUSING-INPUT SHAFT

$

$

Not available

24

Toro 104149

Gasket

$

$

Not available

25

Toro 9411

BEARING-NEEDLE

$

$

Not available

26

Toro 103103

SEAL-OIL

$

$

Not available

27

Toro 107722

PINION&SHAFT

$

$

Not available

28

Toro 9864

Bearing-Thrust

$

$

Not available

29

Toro 9546

SHIM WASHER

$

$

Not available

30

Toro 103104

O-RING

$

$

Not available

31

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

32

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

33

Toro 100885

PTO Shield

$

$

Not available

34

Toro 100927

GEAR CASE GASKET

$

$

Not available

35

Toro 943421

SOLID PIPE PLUG

$

$

Not available

36

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

37

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

38

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

39

Toro 102968

R.H. Tine Shaft Assembly

$

$

Not available

40

Toro 102802

TINE RH R

$

$

Not available

41

Toro 102803

TINE LH

$

$

Not available

42

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

43

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

44

Toro 102969

L.H. Tine Shaft Assembly

$

$

Not available

45

Toro 908091

Bolt 5/8-11 x 2 3/4

$

$

Not available

46

Toro 915667

E.S. Nut 5/8-11

$

$

Not available

47

Toro 101373

Drive Shaft Assembly

$

$

Not available

48

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

49

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

50

Toro 103809

Washer

$

$

Not available

51

Toro 103177

U-Joint with tube

$

$

Not available

52

Toro 103181

Bearing Retainer
(Superseded to 92-9989)

$

$

Not available

53

Toro 103180

Bearing

$

$

Not available

54

Toro 103179

ASSY SHIELD

$

$

Not available

55

Toro 103178

Shield-2"

$

$

Not available

56

Toro 103176

U-Joint with shaft
(Superseded to 93-8455)

$1715.99

$

Usually ships in 3-6 days

0

57

Toro 103044

R.H. Tine Shaft Assembly

$

$

Not available

58

Toro 103045

L.H. Tine Shaft Assembly

$

$

Not available
