97-30GN01 - Toro 3kW Generator (1979) PORTABLE GENERATORS 3000/5000 WATT (VEHICLE IDENTIFICATION NUMBERS 97-30GN01 & 97-50GN01) Parts Diagram

3kW Generator

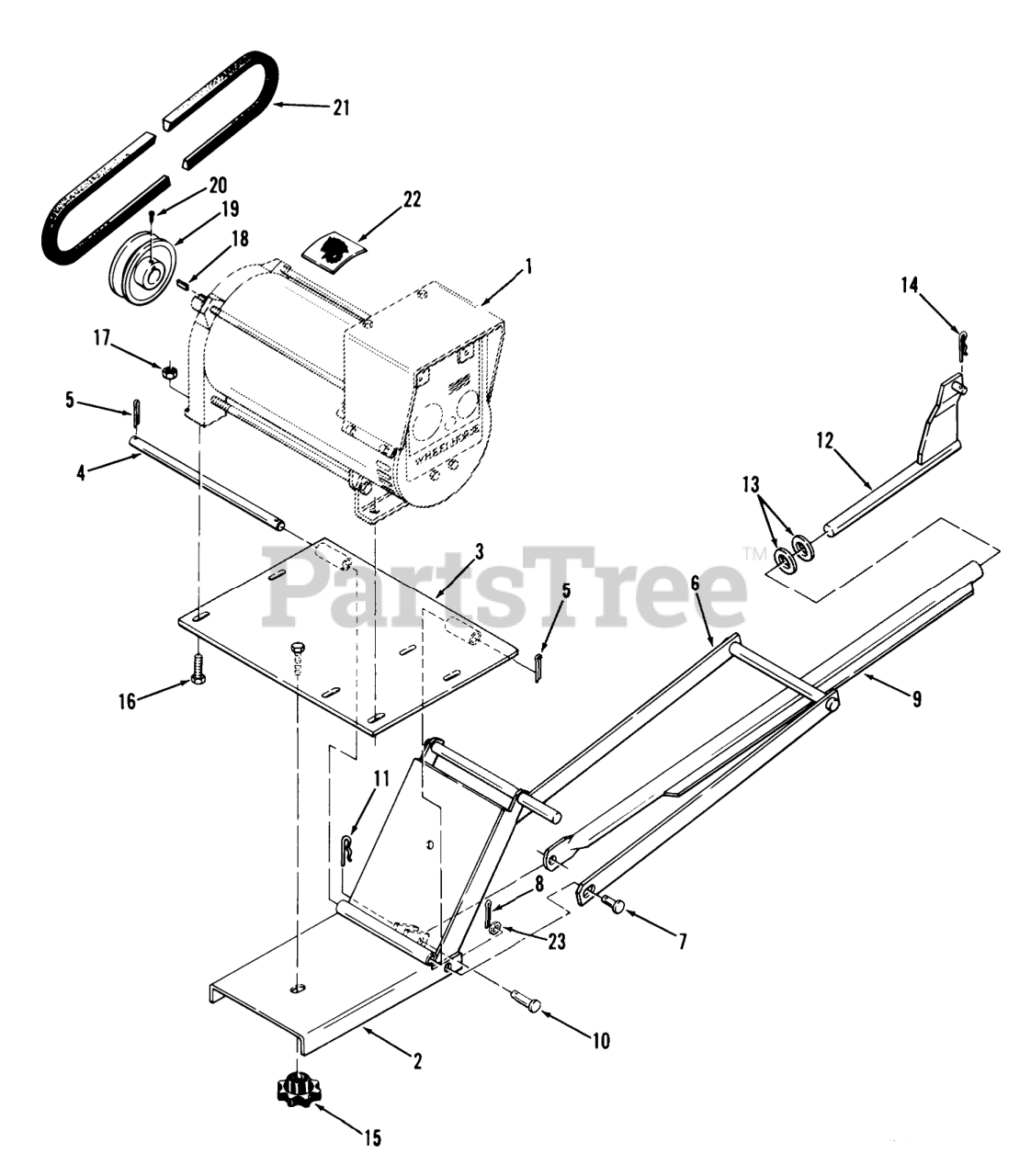

PORTABLE GENERATORS 3000/5000 WATT (VEHICLE IDENTIFICATION NUMBERS 97-30GN01 & 97-50GN01) Parts Diagram

  • Title

1

Toro 107713

Alternator 3000 Watt (Generac No. 6509-0)

$

$

Not available

1

Toro 107714

Alternator 5000 Watt (Generac No. 6511-1)

$

$

Not available

2

Toro 107946

Front Hitch

$

$

Not available

3

Toro 107730

Mounting Plate

$

$

Not available

4

Toro 107733

Pivot Rod

$

$

Not available

5

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

6

Toro 107734

Mid Hitch

$

$

Not available

7

Toro 932960

PIN

$

$

Not available

8

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

9

Toro 107737

Lift Tube

$

$

Not available

10

Toro 932958

Clevis Pin 5/16 x 1 1/4
(Superseded to 9329584)

$

$

Not available

11

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

12

Toro 107738

Lift Rod

$

$

Not available

13

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

14

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

15

Toro 2196

Knob
(Superseded to 5280)

$31.99

$

Usually ships in 3-6 days

0

16

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

18

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, Qty 12

0

19

Toro 107739

Pulley

$

$

Not available

20

Toro 909849

USE 909849P SCREW

$

$

Not available

21

Toro 107740

Drive Belt

$

$

Not available

22

Toro 251053

DECAL-LOGO

$27.99

$

Usually ships in 3-6 days

0

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0
