97-10DC01 - Toro 10 Cubic Foot Cart (1979) AERATOR-36 IN. (92 CM)(VEHICLE IDENTIFICATION NUMBER 97-36AR01) Parts Diagram

10 Cubic Foot Cart

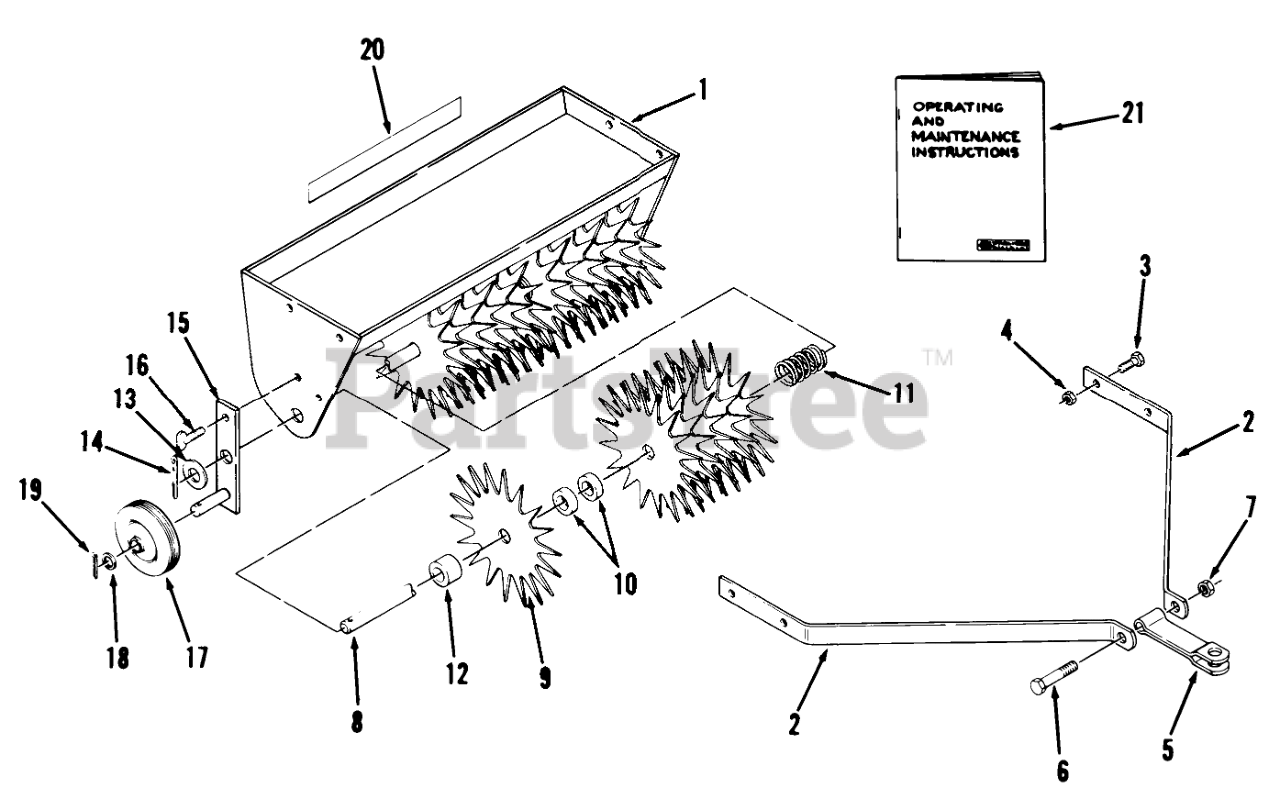

AERATOR-36 IN. (92 CM)(VEHICLE IDENTIFICATION NUMBER 97-36AR01) Parts Diagram

  • Title

1

Toro 226078

Weight Tray Assembly

$

$

Not available

2

Toro 226079

Side Bar

$

$

Not available

3

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

4

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

5

Toro 226080

Hitch Assembly

$

$

Not available

6

Toro 908067

Bolt 1/2-13 x 3 1/2

$

$

Not available

7

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

8

Toro 226081

Axle

$

$

Not available

9

Toro 2859

Spike

$

$

Not available

10

Toro 2858

Cup Spacer

$

$

Not available

11

Toro 2861

Spring

$

$

Not available

12

Toro 226082

BUSHING

$

$

Not available

13

Toro 226083

Washer

$

$

Not available

14

Toro 932028

Cotter Pin
(Superseded to 3272-19)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 226086

R.H. Wheel Holder

$

$

Not available

Toro 226084

L.H. Wheel Holder

$

$

Not available

16

Toro 226085

Thumb Screw

$

$

Not available

17

Toro 103665

Wheel
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

18

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

19

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

20

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

21

Toro 803724R1

Operating and Maintenance Instructions

$

$

Currently unavailable
