97-06CL01 - Toro Rear Bagger (1979) REAR GRASS BAGGER-5 BUSHEL (.2 CU. M)(VEHICLE IDENTIFICATION NUMBER 97-06CL01) Parts Diagram

Rear Bagger

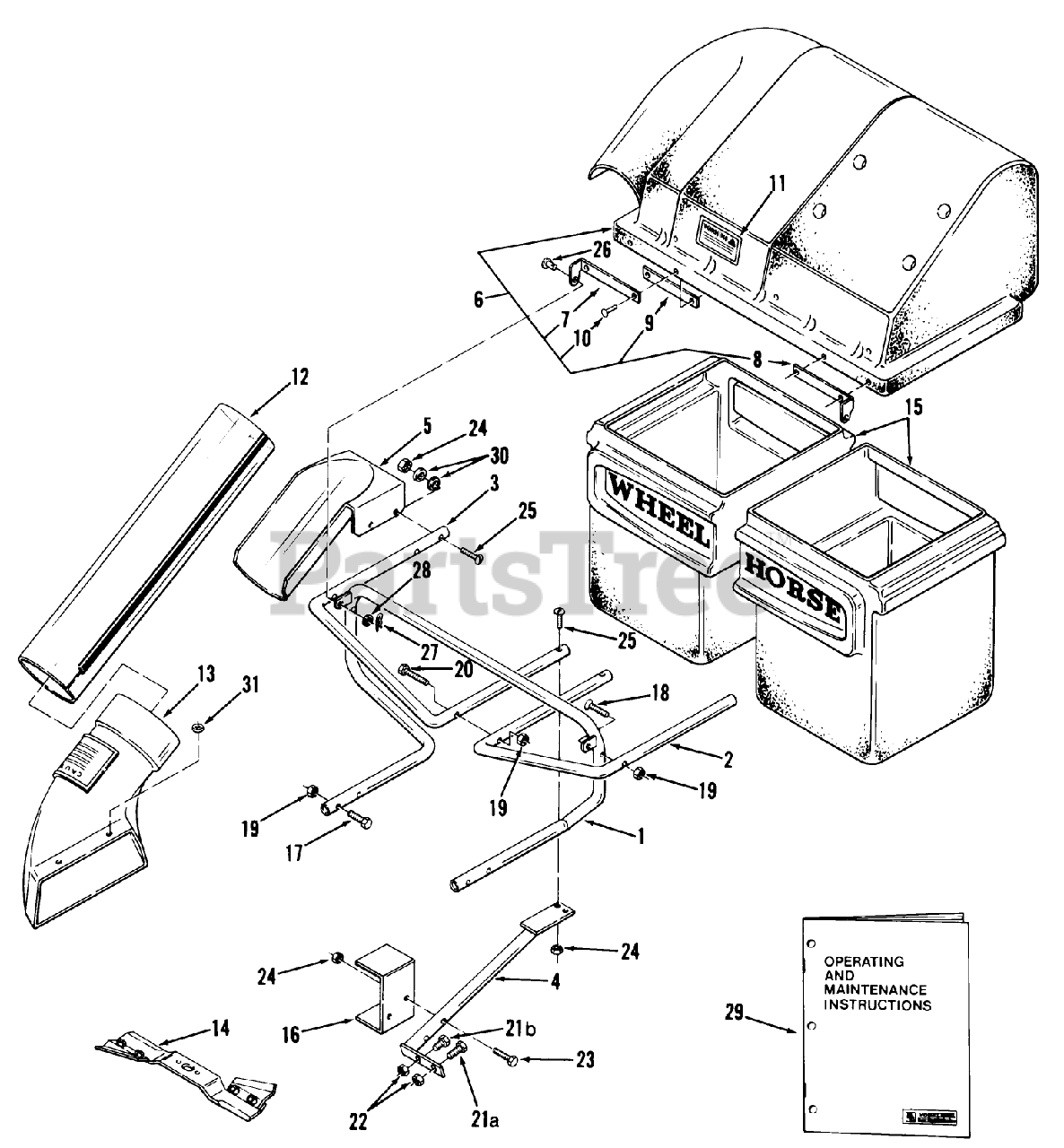

REAR GRASS BAGGER-5 BUSHEL (.2 CU. M)(VEHICLE IDENTIFICATION NUMBER 97-06CL01) Parts Diagram

  • Title

1

Toro 107562

Main Frame

$

$

Not available

2

Toro 107565

SUPPORT-LEFT TUBE

$

$

Not available

3

Toro 107566

Support Tube R. H.

$

$

Not available

4

Toro 107567

Brace Tube
(Superseded to 108592)

$

$

Not available

5

Toro 107571

SUPPORT-COLLECTOR TB

$

$

Not available

6

Toro 107572

Collector Top Assy.

Note: Non-Serviced Parts of this Assembly are Secured with 923792 Poprivets (5/32 Dia. x 3/8 Long); 920003 Backup Washers ( Num 6 SAE) are used on Rivets Securing Screen in Place.

$

$

Not available

7

Toro 107706

Hinge R.H.

$

$

Not available

8

Toro 107707

Hinge L.H.

$

$

Not available

9

Toro 107708

BACKING PLATE

$

$

Not available

10

Toro 923792

POPRIVET

$

$

Not available

11

Toro 107581

Warning Decal

$

$

Currently unavailable

12

Toro 107582

Tube
(Superseded to 110150)

$

$

Not available

13

Toro 107585

Elbow
(Superseded to 108305)

$311.99

$

Usually ships in 3-6 days

0

14

Toro 107586

High Lift Blade
(Superseded to 108684)

$

$

Not available

15

Toro 107590

CAN-CLIPPINGS

$

$

Not available

16

Toro 107591

Muffler Shield (8 HP Engine Only)

Note: Indicates Part of Loose Parts Package 803260.

$

$

Not available

17

Toro 908021

Bolt
(Superseded to 322-7)

Note: Indicates Part of Loose Parts Package 803260.

$1.49

$

In Stock, Qty 20+

0

18

Toro 908843

Screw Flat Hd. Mach. 5/16 x 2 1/2

Note: Indicates Part of Loose Parts Package 803260.

$

$

Currently unavailable

19

Toro 975112

Eslok Nut 5/16-18

Note: Indicates Part of Loose Parts Package 803260.

$

$

Currently unavailable

20

Toro 908025

HHCS
(Superseded to 322-12)

Note: Indicates Part of Loose Parts Package 803260.

$2.49

$

In Stock, Qty 10

0

21a

Toro 908032

Bolt
(Superseded to 323-4)

Note: Indicates Part of Loose Parts Package 803260.

$3.99

$

In Stock, only 1 left!

0

21b

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

22

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803260.

$0.99

$

In Stock, Qty 14

0

23

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

Note: Indicates Part of Loose Parts Package 803260.

$4.99

$

Usually ships in 3-6 days

0

24

Toro 915111

Nut
(Superseded to 3217-5)

Note: Indicates Part of Loose Parts Package 803260.

$0.99

$

In Stock, Qty 8

0

25

Toro 908825

Srew Flat Hd. Mach. 1/4-20 x 1 1/4

Note: Indicates Part of Loose Parts Package 803260.

$

$

Not available

26

Toro 932960

PIN

Note: Indicates Part of Loose Parts Package 803260.

$

$

Not available

27

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 803260.

$1.99

$

In Stock, Qty 20+

0

28

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 803260.

$0.99

$

In Stock, Qty 15

0

29

Toro 810101R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 803260.

$

$

Currently unavailable

30

Toro 920037

WASHER

Note: Indicates Part of Loose Parts Package 803260.

$

$

Not available

31

Toro 920038

Collar
(Superseded to 3-2563)

Note: Indicates Part of Loose Parts Package 803260.

$0.99

$

In Stock, Qty 20+

0
