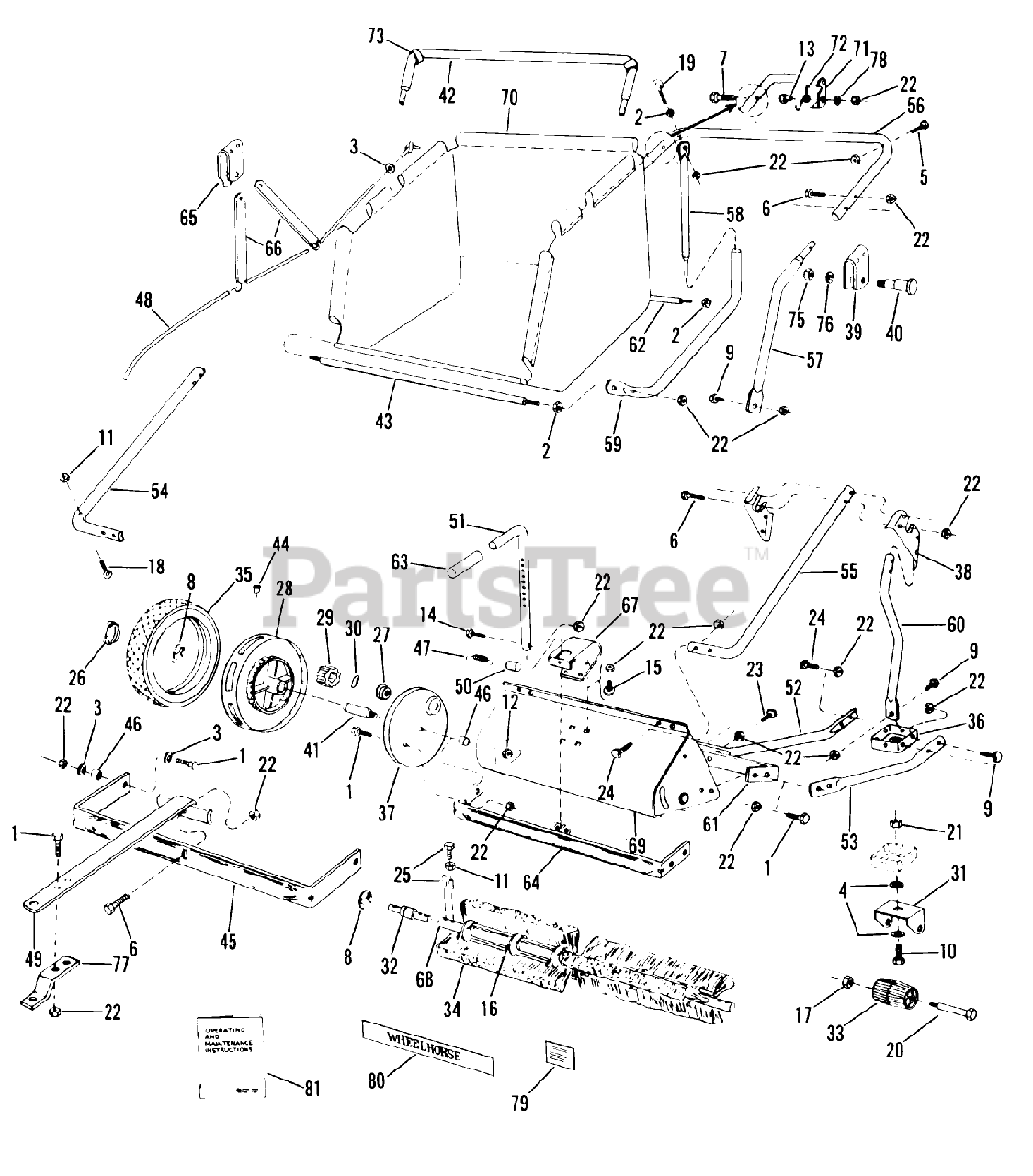

97-06CL01 - Toro Rear Bagger (1979) LAWN SWEEPERS 31 IN. (78.7CM)(VEHICLE IDENTIFICATION NUMBER 97-31SW01) Parts Diagram

Rear Bagger

LAWN SWEEPERS 31 IN. (78.7CM)(VEHICLE IDENTIFICATION NUMBER 97-31SW01) Parts Diagram

  • Title

1

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

2

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

3

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

4

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

5

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

6

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

7

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

8

Toro 4736

RING LAM L 262

$

$

Not available

9

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

10

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

12

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

13

Toro 101551

Bolt Nut 5/16-18

$

$

Not available

14

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 3 left!

0

15

Toro 101552

Bolt-Carriage 5/16-18 x 5/8

$

$

Not available

16

Toro 101553

SPRING

$

$

Not available

17

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

18

Toro 101554

Bolt-Eye 1/4-20 x 2
(Superseded to 102555)

$

$

Not available

19

Toro 101555

Bolt-Eye 5/16-18 x 2 3/4

$

$

Not available

20

Toro 101556

STUD CASTER

$65.99

$

Usually ships in 3-6 days

0

21

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

22

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

23

Toro 101557

Bolt-Tube 5/16-18 x 1 1/4

$

$

Not available

24

Toro 101558

BOLT

$

$

Not available

25

Toro 933186

ROLLPIN 3/16 X 7/8

$

$

Not available

26

Toro 4733

PLUG BUTTON

$

$

Not available

27

Toro 101559

BEARING

$

$

Not available

28

Toro 4705

Wheel Ass-y.

$

$

Not available

29

Toro 4715

PINION GEAR

$

$

Not available

30

Toro 101560

PINION PAWL

$

$

Not available

31

Toro 101561

Bracket-Caster

$

$

Not available

32

Toro 102500

BRUSH STUB AXLE

$

$

Not available

33

Toro 101563

CASTER ROLLER

$

$

Not available

34

Toro 102501

STRIP

$

$

Not available

35

Toro 102492

Tire 10 x 2.25

$

$

Not available

36

Toro 101566

Caster, Plate Ass-y.

$

$

Not available

37

Toro 101567

SHIELD WHEEL

$

$

Not available

38

Toro 101568

Bracket-Frame Pivot

$

$

Not available

39

Toro 101569

Bracket-Hamper Pivot

$

$

Not available

40

Toro 101570

PIVOT PIN

$

$

Not available

41

Toro 101571

WHEEL STUD

$

$

Not available

42

Toro 102502

Tube-Pivot Stand

$

$

Not available

43

Toro 102503

Rod-Hamper Tie

$

$

Not available

44

Toro 101574

Oiler

$

$

Not available

45

Toro 102504

Hitch-U Bar

$

$

Not available

46

Toro 101577

Spacer

$

$

Not available

47

Toro 101578

Spring-Adjustment

$

$

Not available

48

Toro 101579

Dump Rope

$

$

Not available

49

Toro 102505

Tongue-Hitch

$

$

Not available

50

Toro 101581

TUBE SPRING

$

$

Not available

51

Toro 101582

TUBE ADJUSTING

$

$

Not available

52

Toro 101583

Brace-Pivot Stand

$

$

Not available

53

Toro 102506

TUBE

$

$

Not available

54

Toro 101585

Tube R.H. Support

$

$

Not available

55

Toro 101586

Tube L.H. Support

$

$

Not available

56

Toro 102507

Tube Top Hamper

$

$

Not available

57

Toro 101588

Tube Side Hamper

$

$

Not available

58

Toro 101589

TUBE

$

$

Not available

59

Toro 101590

Tube Bottom

$

$

Not available

60

Toro 101591

Support R.H. Pivot

$

$

Not available

60

Toro 101592

Support L.H. Pivot

$

$

Not available

61

Toro 102508

Stiffner-Bar

$

$

Not available

62

Toro 102509

Rod-Rear Hamper

$

$

Not available

63

Toro 101595

Grip

$

$

Not available

64

Toro 102510

Bumper Ass-y.

$

$

Not available

65

Toro 101597

ASSY BRACKET

$

$

Not available

66

Toro 101598

Lever-Dump

$

$

Not available

67

Toro 101599

Bracket-Adjustment

$

$

Not available

68

Toro 102511

ASSY BRUSH AXLE & DS

$

$

Not available

69

Toro 102512

Shield-Ass-y.

$

$

Not available

70

Toro 102513

HAMPER ASSY

$

$

Not available

71

Toro 101603

Latch-Hamper

$

$

Not available

72

Toro 101604

Spring-Latch

$

$

Not available

73

Toro 101605

Sleeve-Rubber

$

$

Currently unavailable

75

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

76

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

77

Toro 101606

BRACKET-HITCH PIN

$

$

Not available

78

Toro 920040

Washer, 7/16

$

$

Not available

79

Toro 102491

Decal Adjustment

$

$

Not available

80

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

81

Toro 803722R1

Operating and Maintenance Instructions

$

$

Currently unavailable

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

25

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

32

Toro 101562

AXLE BRUSH STUD

$

$

Not available

34

Toro 101564

STRIP BRUSH

$

$

Not available

42

Toro 101572

Tube-Pivot Stand

$

$

Not available

43

Toro 101573

Rod-Hamper Tie

$

$

Not available

45

Toro 102493

Hitch-U Bar

$

$

Not available

49

Toro 102497

Tongue-Hitch

$

$

Currently unavailable

56

Toro 101587

Tube Top Hamper

$

$

Not available

61

Toro 102495

Stiffner-Bar

$

$

Not available

62

Toro 101594

Rod-Rear Hamper

$

$

Not available

64

Toro 102496

Bumper Ass-y.

$

$

Currently unavailable

68

Toro 101600

Axle-Brush

$

$

Not available

69

Toro 101601

Shield-Ass-y.

$

$

Currently unavailable

70

Toro 101602

Hamper-Ass-y.

$

$

Not available
