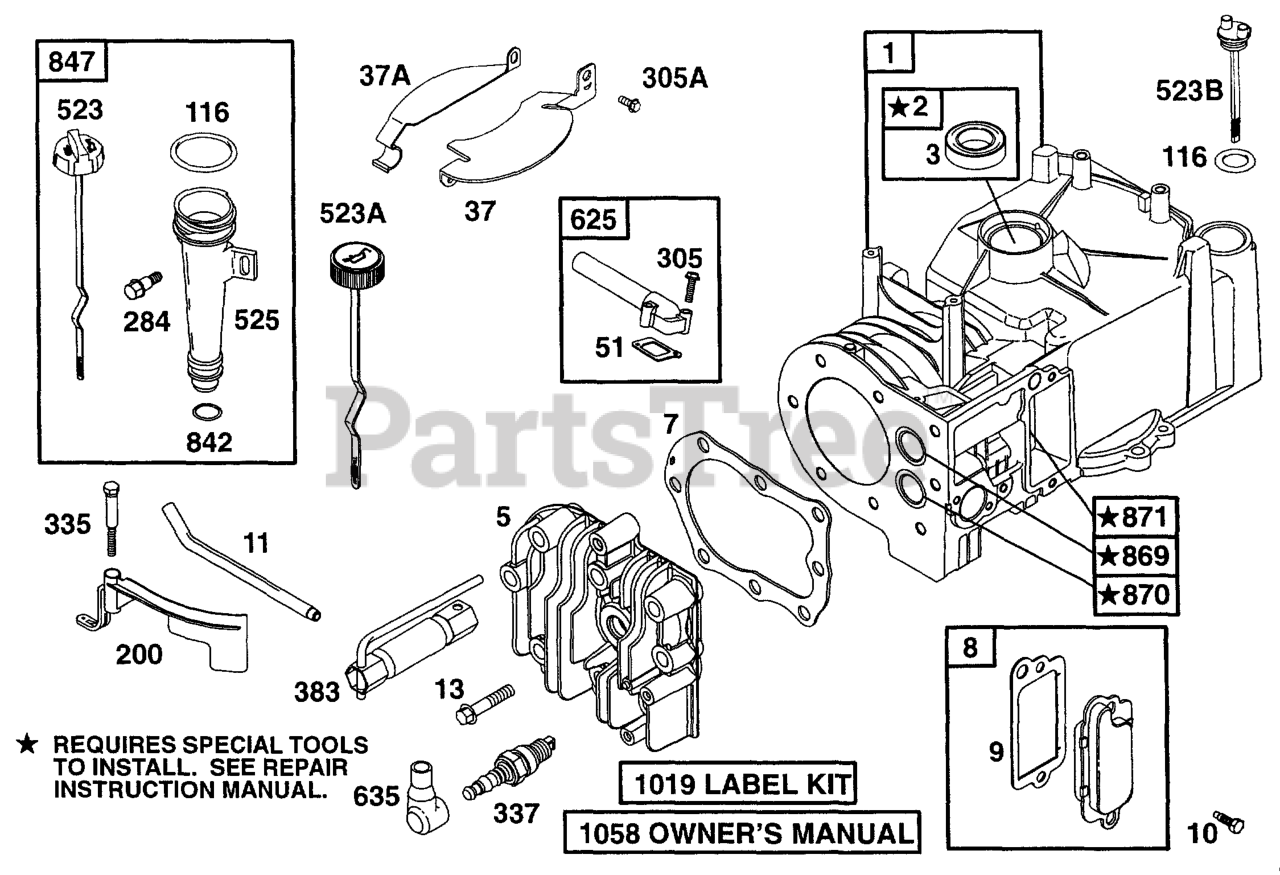

96902-0106-02 - Briggs & Stratton Vertical Engine Cylinder,Cylinder Head Parts Diagram

Vertical Engine

Cylinder,Cylinder Head Parts Diagram

  • Title

1

Briggs & Stratton 399164

Cylinder Assy (Air Vane)
(Superseded to 699653)

$

$

Not available

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 298989

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 213942

Head-Cylinder
(Superseded to 790169)

Note: Used on Engines With Muffler Guard.

$

$

Not available

7

Briggs & Stratton 272536

Gasket-Cylinder Head
(Superseded to 698717)

Note: Included in Gasket Set-Valve Overhaul-Part No. 498526. Included in Gasket Set-Part No. 298989

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495785

Breather Assy (Includes Gasket)
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272602

Gasket-Breather
(Superseded to 695890)

Note: Included in Gasket Set-Valve Overhaul-Part No. 498526. Included in Gasket Set-Part No. 298989

$4.49

$

In Stock, only 2 left!

0

11

Briggs & Stratton 231774

Tube-Breather
(Superseded to 691245)

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93111

Screw, Machine Hex (15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 94960

Screw, Machine Hex (1-15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

37A

Briggs & Stratton 222403

Guard-Flywheel

Note: Used Before Code Date 92110200

$7.99

$

Usually ships in 2-12 days

0

37A

Briggs & Stratton 224819

Guard, Flywheel Car (Carburetor Side)
(Superseded to 690482)

Note: Used After Code Date 92110100

$10.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 223150

Guard-Flywheel (Muffler Side)
(Superseded to 691209)

$10.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 270345

Gasket-Intake Elbow
(Superseded to 270345S)

Note: Included in Gasket Set-Part No. 298989

$4.49

$

In Stock, Qty 6

0

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 271485

Seal, Oil Fill Tube
(Superseded to 691876)

Note: Included in Gasket Set-Part No. 298989

$5.49

$

In Stock, Qty 11

0

200

Briggs & Stratton 281024

Blade-Governor
(Superseded to 691912)

$13.99

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94073

Screw, Hex Washer H
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

305A

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

305

Briggs & Stratton 93485

Screw-Hex
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

335

Briggs & Stratton 94732

Screw, Hex Wash Hea
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523B

Briggs & Stratton 281081

Plug-Oil Filler
(Superseded to 691913)

$9.99

$

Usually ships in 2-12 days

0

523A

Briggs & Stratton 495234

Dipstick

Note: Used Before Code Date 95030600

$14.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 497306

Dipstick
(Superseded to 692040)

Note: Used Before Code Date 95101600

$14.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 497968

Dipstick
(Superseded to 692040)

Note: Used After Code Date 95101500

$14.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 280578

Tube-Oil Filler
(Superseded to 694531)

$

$

Not available

625

Briggs & Stratton 298775

Tube-Intake
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

842

Briggs & Stratton 271485

Seal, Oil Fill Tube
(Superseded to 691876)

Note: Included in Gasket Set-Part No. 298989

$5.49

$

In Stock, Qty 11

0

847

Briggs & Stratton 399030

Tube-Oil
(Superseded to 691440)

Note: Used Before Code Date 95030600

$25.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 497306

Dipstick
(Superseded to 692040)

Note: Used After Code Date 95030500 and Before Code Date 95101600

$14.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 497969

Dipstick/Tube Assy.
(Superseded to 691440)

Note: Used After Code Date 95101500

$25.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Bushing-Guide (Exhaust Valve)

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 496757

Label Kit

$46.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272308

Owner's Manual (Non Emission Engines)

$

$

Not available
