968999515 - Husqvarna 48", 54" Grass Catcher (2007-02) General Assembly Parts Diagram

48", 54" Grass Catcher

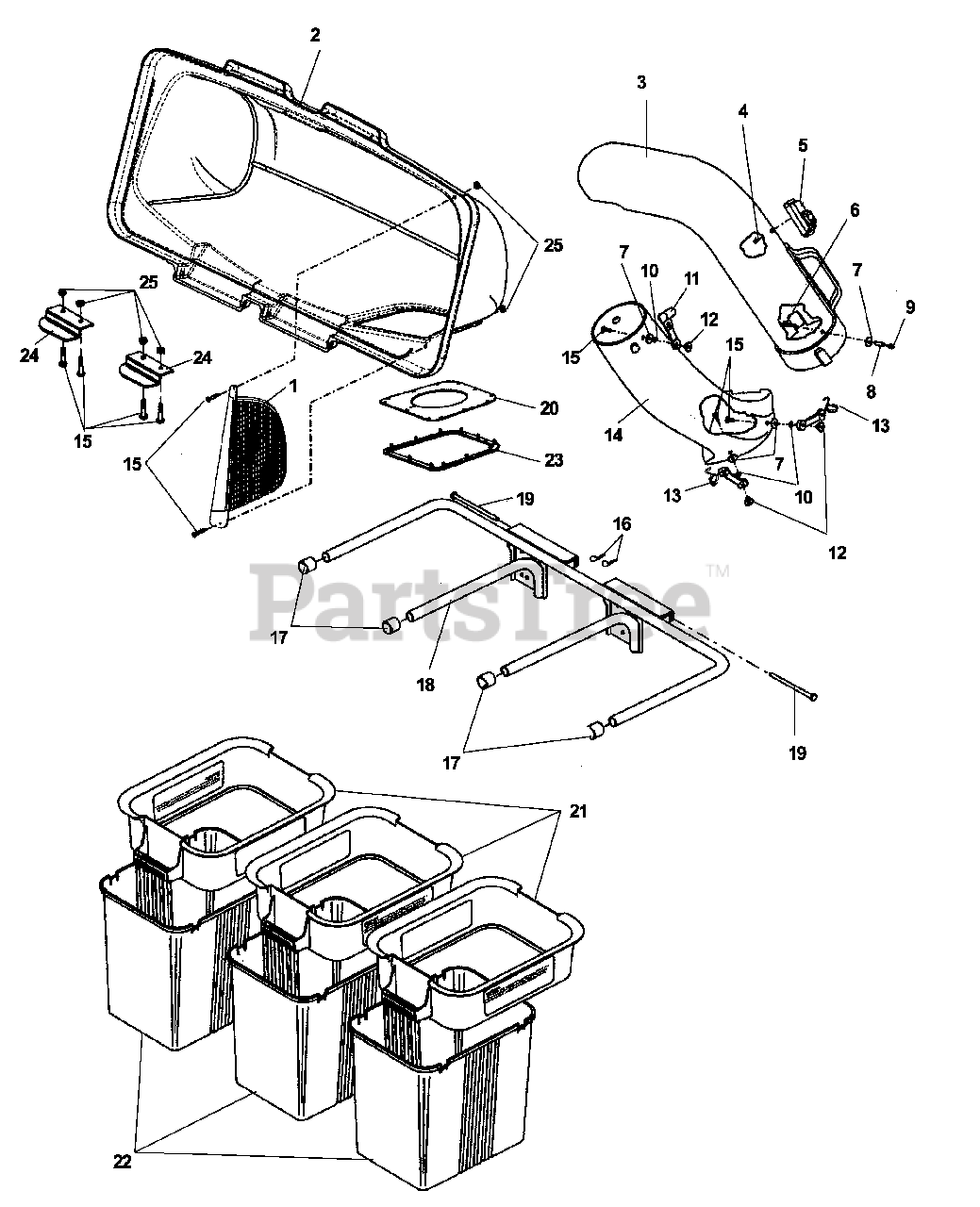

General Assembly Parts Diagram

  • Title
1

Husqvarna 532192709

Screen, cover

$26.99

$

Usually ships in 3-10 days

0

$278.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539108141

Chute, upper,

$120.99

$

In Stock, only 1 left!

0

4

Husqvarna 539108081

Screw, #10-14 x 1/2, special
(Superseded to 818021008)

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539108082

Dump bag indicator
(Superseded to 532140572)

$8.99

$

In Stock, only 1 left!

0

6

Husqvarna 539108083

Screw, #10-24 x 1 1/8

$3.99

$

In Stock, only 1 left!

0

7

Husqvarna 539108084

Washer, 3/16 x 3/4 x 16 Ga.

$4.99

$

In Stock, Qty 15

0

8

Husqvarna 539108085

Spacer, split
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

9

Husqvarna 539108086

Nut, #10-24, acorn

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 539109552

Lockwasher, 3/16

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108088

Latch, chute
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

12

Husqvarna 539108089

Nut, weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539108194

Latch, assembly
(Superseded to 597000601)

$6.99

$

In Stock, Qty 12

0

14

Husqvarna 539113204

Chute, lower, 54" deck
(Superseded to 532187300)

$133.99

$

Usually ships in 3-10 days

0

Husqvarna 539108092

Chute, lower, 48" deck
(Superseded to 532174345)

$133.99

$

In Stock, only 1 left!

0

15

Husqvarna 539976952

Screw, #10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

16

Husqvarna 539108096

Spring, retainer

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 539108097

Plug, tubing end
(Superseded to 532174083)

$7.49

$

In Stock, only 3 left!

0

18

Husqvarna 539108098

Bagger, frame
(Superseded to 532176990)

$121.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532192786

Pin, hinge

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532192550

Gasket, cover

$20.99

$

In Stock, only 4 left!

0

21

Husqvarna 539108101

Container, top
(Superseded to 532183286)

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108102

Container, bottom
(Superseded to 532129586)

$80.99

$

In Stock, only 4 left!

0

23

Husqvarna 532192603

Seal, cover

$10.99

$

In Stock, Qty 7

0

24

Husqvarna 532130895

Handle, bagger cover

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539976977

Nut, #10-24, crownlock

$

$

Not available
