968999195 - Husqvarna Grass Catcher (2003-10) FRAME Parts Diagram

Grass Catcher

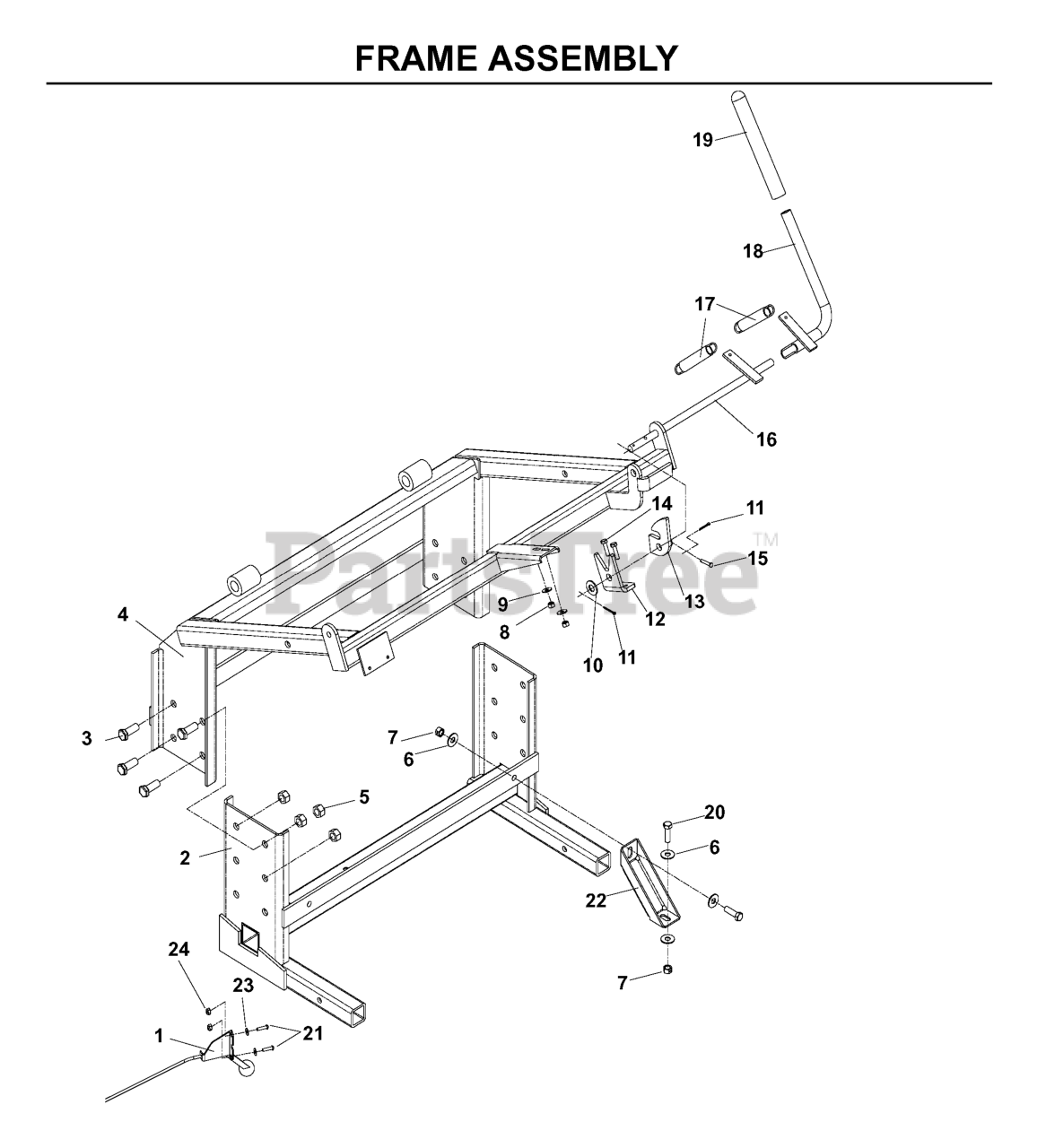

FRAME Parts Diagram

  • Title

3

Husqvarna 540099069

BOLT 1/2 X 1.25
(Superseded to 539108369)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540000382

PIN, CLEVIS, 3/16 X 1

$

$

Currently unavailable

7

Husqvarna 540099065

NUT 3/8 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 540000415

FLAT WASHER 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 540001062

SCREW, #10-24 X 3/4, RD. HD., SLOTTED

$

$

Currently unavailable

9

Husqvarna 540000405

WASHER, 1/4

$

$

Currently unavailable

4

Husqvarna 540200510

UPPER FRAME

$

$

Currently unavailable

13

Husqvarna 540200708

WELDMENT, LATCH CATCH BLK
(Superseded to 539200708)

$103.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540062072

LOWER FRAME

$

$

Currently unavailable

14

Husqvarna 540099008

BOLT, 1/4-28 X 1

$

$

Currently unavailable

17

Husqvarna 540010195

SPRING
(Superseded to 539010195)

$47.99

$

In Stock, Qty 8

0

12

Husqvarna 540200423

LATCH BASE

$

$

Currently unavailable

1

Husqvarna 540061651

THROTTLE CABLE
(Superseded to 539061651)

$

$

Not available

22

Husqvarna 540061532

HITCH BRACKET

$

$

Not available

19

Husqvarna 540061481

GRIP
(Superseded to 539119974)

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540000425

FLAT WASHER 1/2"

$

$

Not available

24

Husqvarna 540002004

Nut, Hex, Nylon Lock, #10-24

$

$

Currently unavailable

5

Husqvarna 540093082

NUT 1/2 NYLOC
(Superseded to 539101331)

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 540003585

PIN, COTTER, 3/32 X 3/4

$

$

Currently unavailable

18

Husqvarna 540200712

RELEASE LEVER
(Superseded to 539200712)

$169.99

$

Usually ships in 3-10 days

0

20

Husqvarna 540099020

BOLT 3/8 X 1.25
(Superseded to 539976941)

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 540099072

Nut, Hex, Nylon Lock, 1/4"-20

$

$

Currently unavailable

23

Husqvarna 540000403

FLAT WASHER #10

$

$

Not available

16

Husqvarna 540200710

LATCH ROD

$

$

Currently unavailable
