966793101 - Husqvarna Grass Catcher (2012-05) FAN Parts Diagram

Grass Catcher

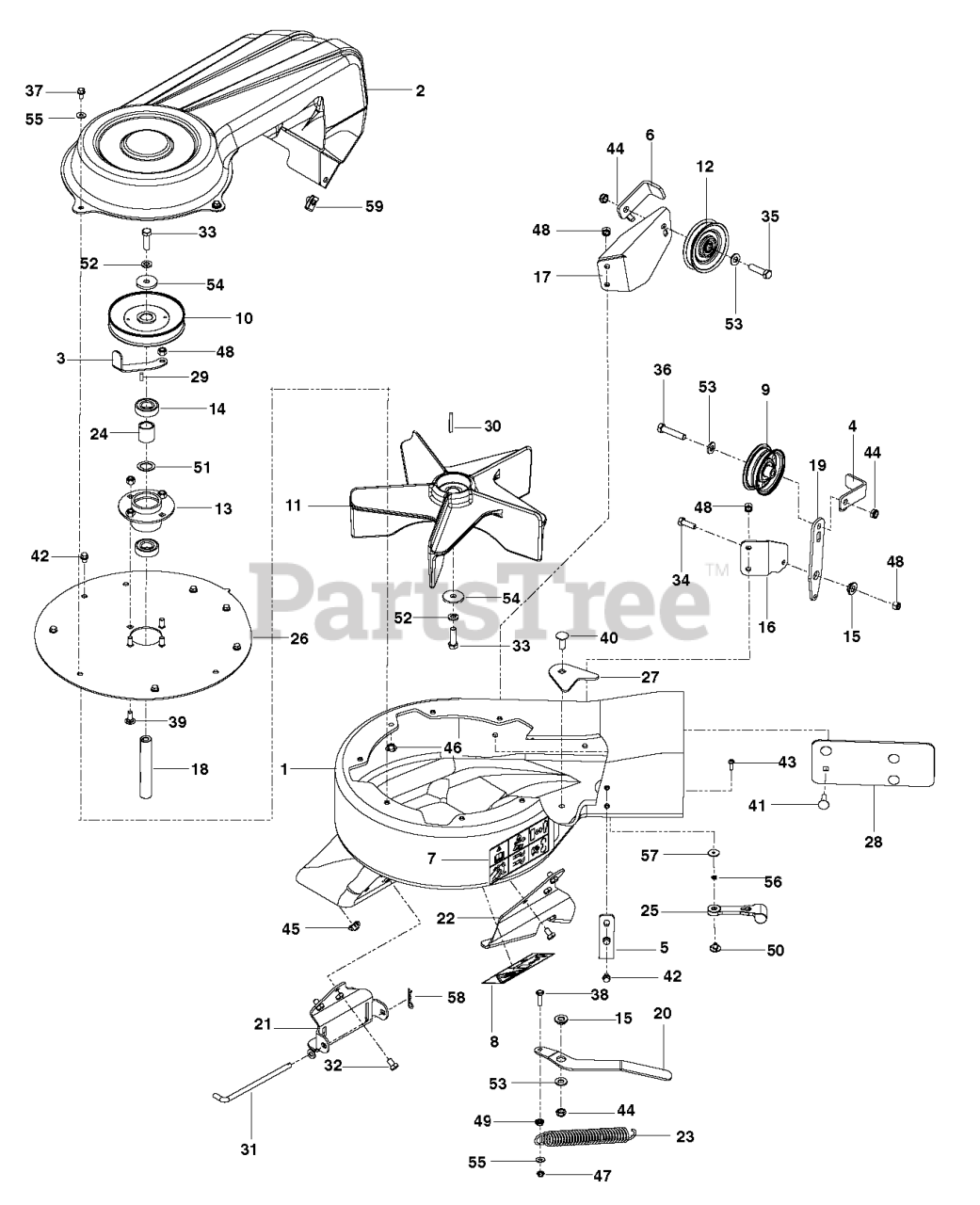

FAN Parts Diagram

  • Title
16

Husqvarna 579137402

MOUNT.IDLER.UPPER

$

$

Not available

$4.99

$

In Stock, Qty 15

0

38

Husqvarna 874780414

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539105785

DECAL, EURO WARNING

$10.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

51

Husqvarna 539910935

WASHER .787 X 1.125 X .06

$4.99

$

In Stock, only 3 left!

0

2

Husqvarna 539130293

COVER, BELT

$80.99

$

Usually ships in 3-10 days

0

$

$

Not available

46

Husqvarna 539130314

NUT 1/4-20 TEE

$4.99

$

In Stock, Qty 18

0

44

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

9

Husqvarna 579150802

PULLEY, IDLER, BACKSIDE

$31.99

$

In Stock, only 1 left!

0

17

Husqvarna 579137502

MOUNT IDLER LOWER

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579137602

KEEPER FLAT UPPER BLK

$8.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539132124

PLATE, BACKING

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539130341

PLATE, OUTER

$74.99

$

In Stock, only 1 left!

0

53

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

36

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539106741

EURO DECAL, IMPELLER

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539130344

BLOWER.HOUSING.W/DECALS.COLLEC

$

$

Not available

47

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

33

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 532109808

LATCH.HOOD.

$6.99

$

In Stock, Qty 13

0

37

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

$20.99

$

Usually ships in 3-10 days

0

40

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

$2.99

$

Usually ships in 3-10 days

0

34

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

14

$9.99

$

In Stock, only 2 left!

0

45

Husqvarna 539130313

NUT 5/16-18 TEE

$4.99

$

In Stock, Qty 8

0

19

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539125229

KEY-SQ. 3/16 X 1 1/2

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 539130340

BRKT, MT, REAR

$34.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539115667

KEY, 3/16 X 1/2

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 579137702

KEEPER FLAT LOWER BLACK

$

$

Not available

35

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

$53.99

$

In Stock, only 3 left!

0

54

Husqvarna 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

12

$66.99

$

Usually ships in 3-10 days

0

43

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

28

Husqvarna 539132122

PLATE.BACKING.BLACK

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131085

KEEPER, BELT, OUTER

$12.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

18

Husqvarna 539130316

SHAFT, IMPELLER

$74.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539130295

HUB, BEARING

$93.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874780508

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539130292

IMPELLER.COLLECTION.BLOWER.BLA

$120.99

$

In Stock, only 1 left!

0

50

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990302

HWST 1/4C X 3/8

$

$

Not available

21

Husqvarna 539130339

BRKT, MT, FRONT

$45.99

$

Usually ships in 3-10 days

0

$17.99

$

In Stock, Qty 10

0

$48.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

15

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539130338

ARM, TENSION

$31.99

$

Usually ships in 3-10 days

0
