966793002 - Husqvarna Grass Catcher (2013-04) FAN 2 Parts Diagram

Grass Catcher

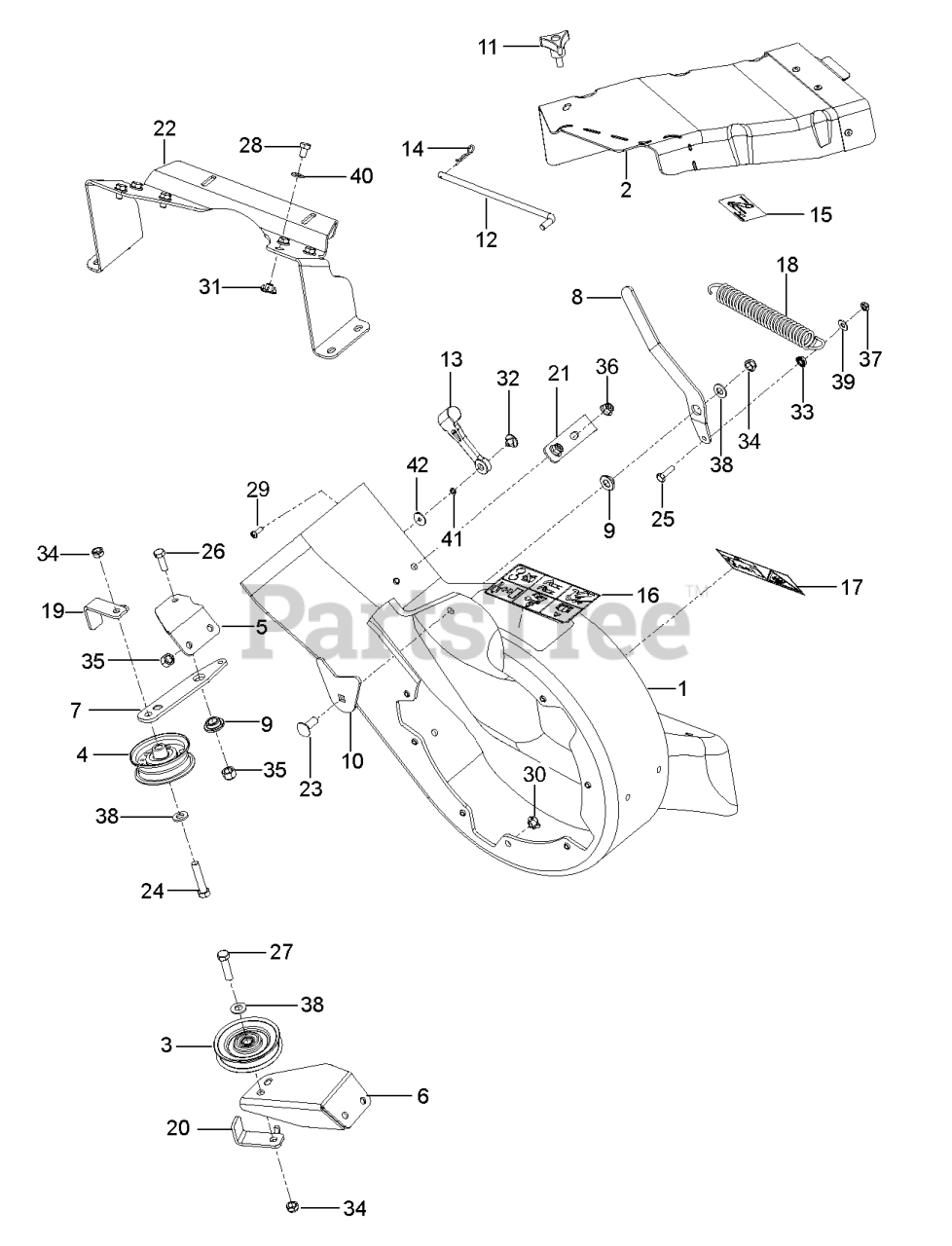

FAN 2 Parts Diagram

  • Title

37

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539130346

KEEPER

$

$

Not available

16

Husqvarna 539105785

DECAL, EURO WARNING

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539130301

BUSHING

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 579137302

ARM IDLER

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539130349

DECAL, BELT ROUTING

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 522909801

PIN, RETENTION

$

$

Not available

4

Husqvarna 539130324

PULLEY

$53.99

$

In Stock, only 3 left!

0

42

Husqvarna 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

31

Husqvarna 539130313

NUT 5/16-18 TEE

$4.99

$

In Stock, Qty 8

0

28

Husqvarna 874780508

HCS 5/16-18 X 1/2 GR 5 ZD

Note: Bolt 5/16-18 x 1/2 Hex Head

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

32

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539106741

EURO DECAL, IMPELLER

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539130314

NUT 1/4-20 TEE

$4.99

$

In Stock, Qty 18

0

10

Husqvarna 544264301

SCREW
(Superseded to 512847901)

$4.99

$

In Stock, only 3 left!

0

29

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

13

Husqvarna 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

38

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539130338

ARM, TENSION

$31.99

$

Usually ships in 3-10 days

0

22

Husqvarna 522909602

BRACKET.MOUNT.BLACK

$133.99

$

Usually ships in 3-10 days

0

23

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 579137602

KEEPER FLAT UPPER BLK

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

34

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

26

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579137402

MOUNT.IDLER.UPPER

$

$

Not available

3

Husqvarna 539113683

V-IDLER

$66.99

$

In Stock, only 1 left!

0

6

Husqvarna 579137502

MOUNT IDLER LOWER

$15.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539130344

BLOWER.HOUSING.W/DECALS.COLLEC

$

$

Not available

25

Husqvarna 874780414

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574411501

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 579137702

KEEPER FLAT LOWER BLACK

$

$

Not available
