966613801 - Husqvarna Mower Deck Assembly (2012-06) MOWER DECK / CUTTING DECK Parts Diagram

Mower Deck Assembly

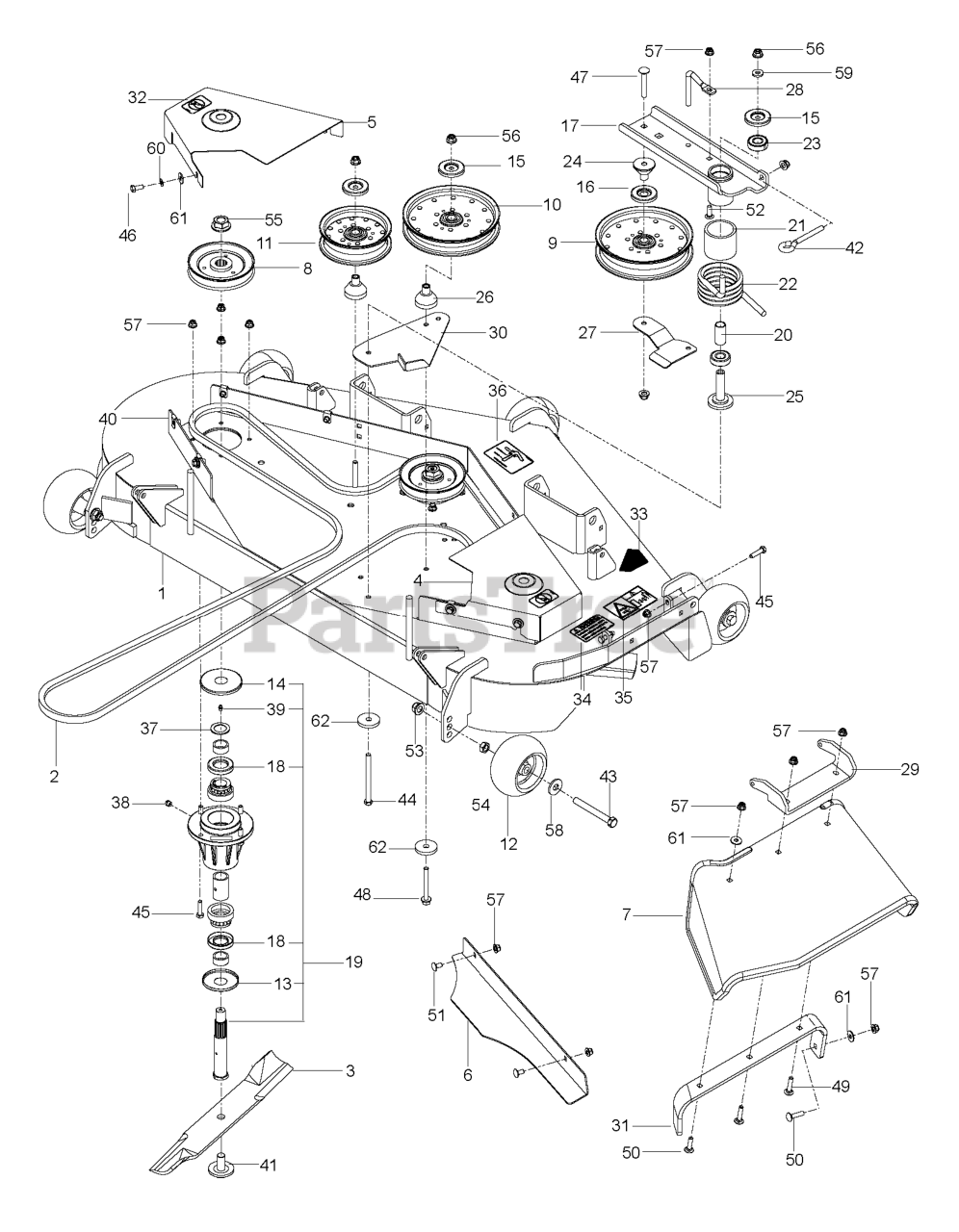

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

44

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

27

Husqvarna 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539113224

DECAL, CAUTION

$9.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

36

Husqvarna 574437301

DECAL, BELT ROUTING

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

50

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

62

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

32

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

25

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

43

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

22

Husqvarna 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

26

Husqvarna 577073401

BEARING, IDLER STANDOFF

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 510254501

DUST SHIELD

$

$

Not available

53

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

1

Husqvarna 576769202

DECK.SVC.W/DECALS.52.PZT.ORNGE

$

$

Not available

46

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

28

Husqvarna 574262201

BELT KEEPER

$

$

Not available

5

Husqvarna 521969503

SHIELD.BELT.52".LH.ORANGE

$

$

Not available

59

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 525598201

PULLEY - 7" NARROW

$

$

Not available

24

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 8

0

52

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

3

Husqvarna 539105712

BLADE - HEAVY DUTY 18"

$28.99

$

In Stock, Qty 6

0

39

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

20

Husqvarna 510264201

SPACER, IDLER BEARINGS

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539131383

HOUSING ASM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

57

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 525464402

IDLER.ARM.BLACK

$109.99

$

Usually ships in 3-10 days

0

56

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

30

Husqvarna 576388702

BRACKET, SPRING STOP

$23.99

$

Usually ships in 3-10 days

0

4

Husqvarna 521969403

SHIELD BELT 52" RH ORANGE

$

$

Not available

61

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

41

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

40

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

47

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

60

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

29

Husqvarna 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

49

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

2

Husqvarna 576479802

BELT, "B"

$157.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

48

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 539112124

PULLEY, 52

$45.99

$

In Stock, only 1 left!

0

54

Husqvarna 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

21

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

45

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

42

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

9

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available
