966529401 - Husqvarna Grass Catcher (2009-11) HOUSING Parts Diagram

Grass Catcher

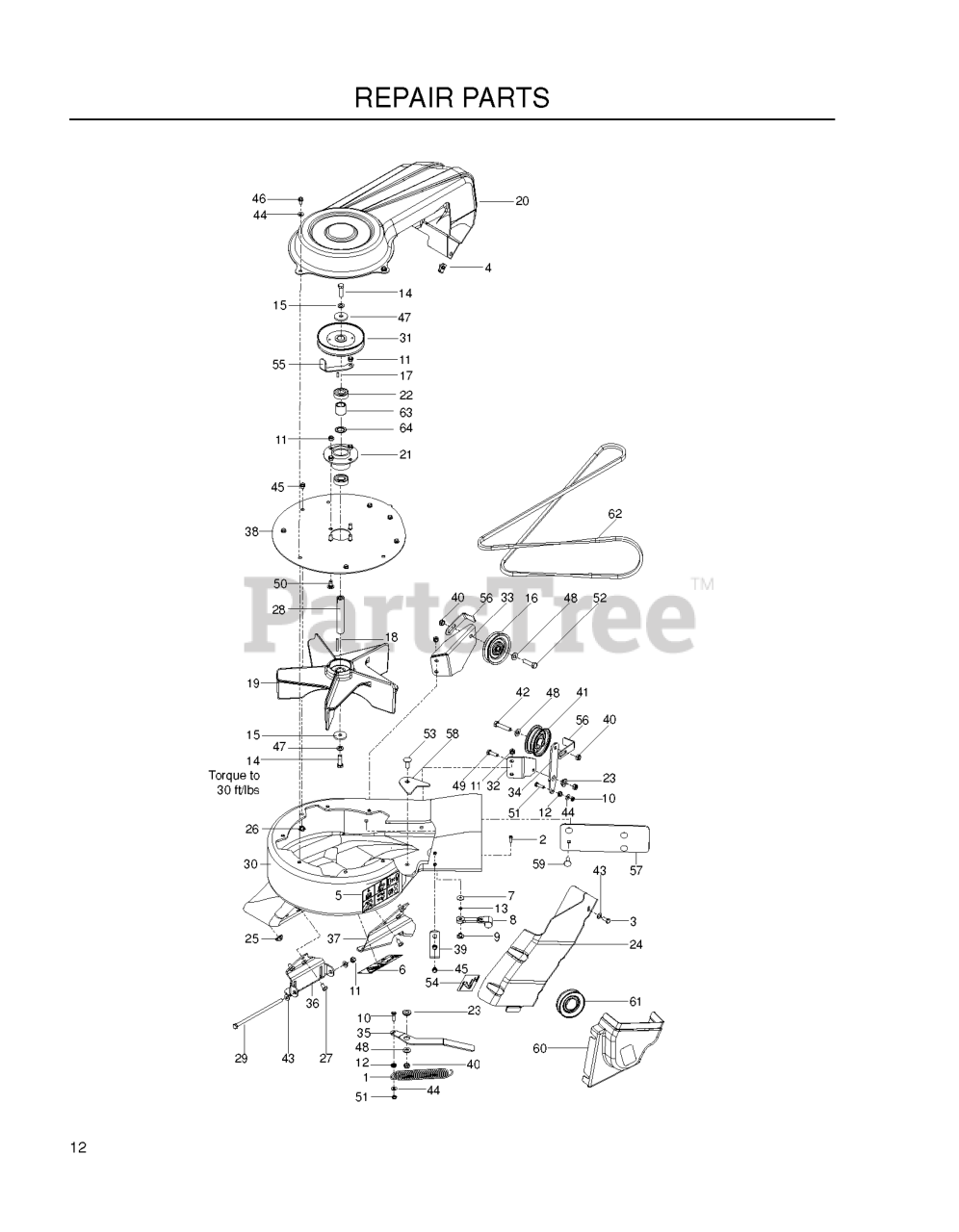

HOUSING Parts Diagram

  • Title

4

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

9

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539130340

BRKT, MT, REAR

$34.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, only 3 left!

0

53

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

33

Husqvarna 539130336

MOUNT, IDLER, LOWER

$43.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539130337

ARM, IDLER

$30.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539130295

HUB, BEARING

$93.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539130301

BUSHING

$9.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539132347

BELT

$40.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

29

Husqvarna 539105826

BOLT - 5/16 X 7

$4.99

$

In Stock, only 1 left!

0

50

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

57

Husqvarna 539132122

PLATE.BACKING.BLACK

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539130309

COVER, BELT

$44.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990302

HWST 1/4C X 3/8

$

$

Not available

49

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539125229

KEY-SQ. 3/16 X 1 1/2

$4.99

$

In Stock, only 3 left!

0

63

Husqvarna 539130323

SPACER

$48.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110321

BOLT, HEX 3/8-24 X 1.25 GR 8
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

59

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539130292

IMPELLER.COLLECTION.BLOWER.BLA

$120.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

12

Husqvarna 539108735

NUT 1/4-20 HEX FLG LK ZD

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

32

Husqvarna 539130335

MOUNT, IDLER, UPPER

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

43

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539106741

EURO DECAL, IMPELLER

$6.99

$

Usually ships in 3-10 days

0

61

Husqvarna 573944001

PULLEY, 42

$91.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

60

Husqvarna 573944201

SHIELD, BELT, 42

$68.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539130338

ARM, TENSION

$31.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539130341

PLATE, OUTER

$74.99

$

In Stock, only 1 left!

0

51

Husqvarna 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 6

0

25

Husqvarna 539130313

NUT 5/16-18 TEE

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 539130296

BEARING

$9.99

$

In Stock, only 2 left!

0

36

Husqvarna 539130339

BRKT, MT, FRONT

$45.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539130346

KEEPER

$

$

Not available

54

Husqvarna 539130349

DECAL, BELT ROUTING

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539130314

NUT 1/4-20 TEE

$4.99

$

In Stock, Qty 18

0

10

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 539130316

SHAFT, IMPELLER

$74.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539910935

WASHER .787 X 1.125 X .06

$4.99

$

In Stock, only 3 left!

0

55

Husqvarna 539131085

KEEPER, BELT, OUTER

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539115667

KEY, 3/16 X 1/2

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 539131087

KEEPER, BELT, REAR

$34.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539113683

V-IDLER

$66.99

$

In Stock, only 1 left!

0

13

Husqvarna 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539130344

BLOWER.HOUSING.W/DECALS.COLLEC

$

$

Not available

20

Husqvarna 539130293

COVER, BELT

$80.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539132124

PLATE, BACKING

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

40

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

5

Husqvarna 539105785

DECAL, EURO WARNING

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539130324

PULLEY

$53.99

$

In Stock, only 3 left!

0

11

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+
