966529103 - Husqvarna 52" Grass Catcher (2009-12) Repair Parts Parts Diagram

52" Grass Catcher

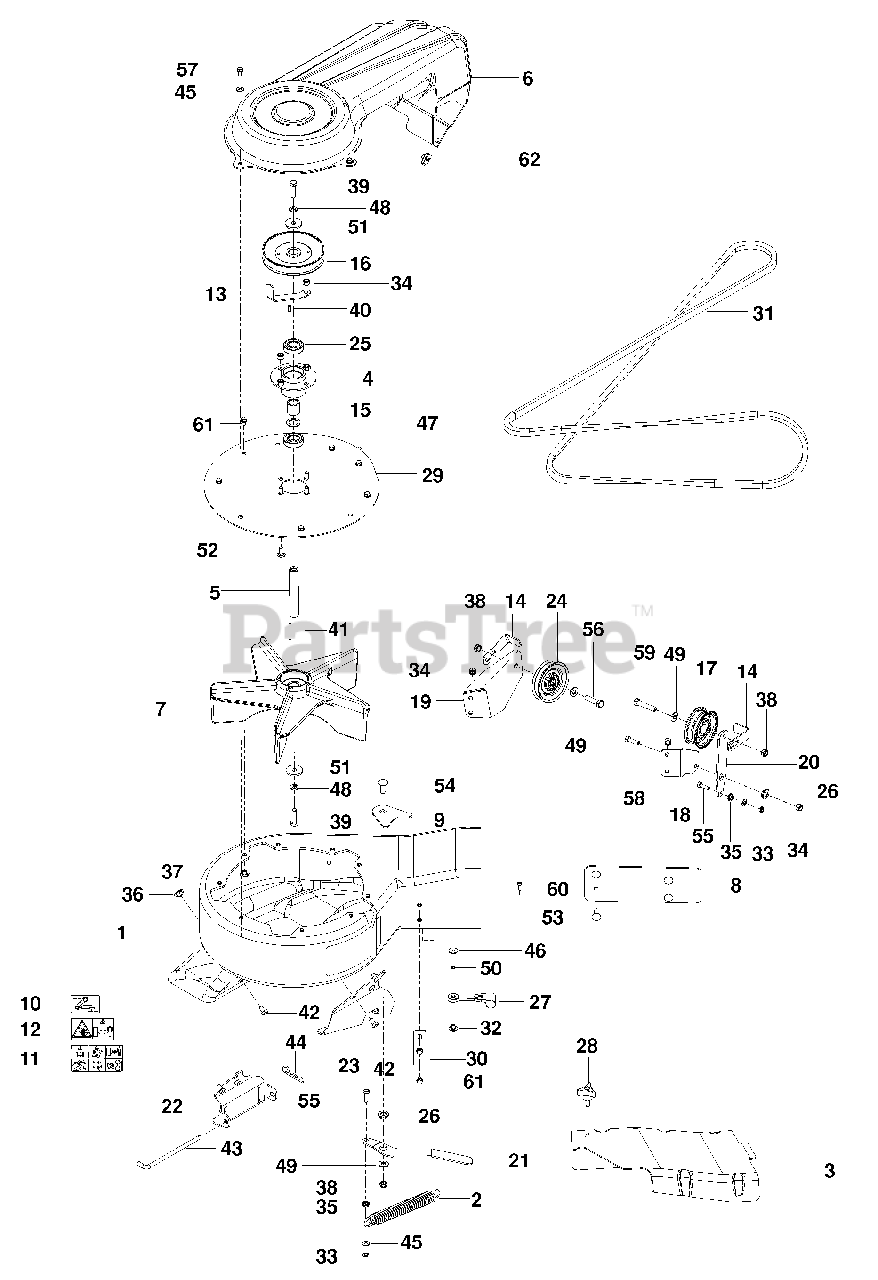

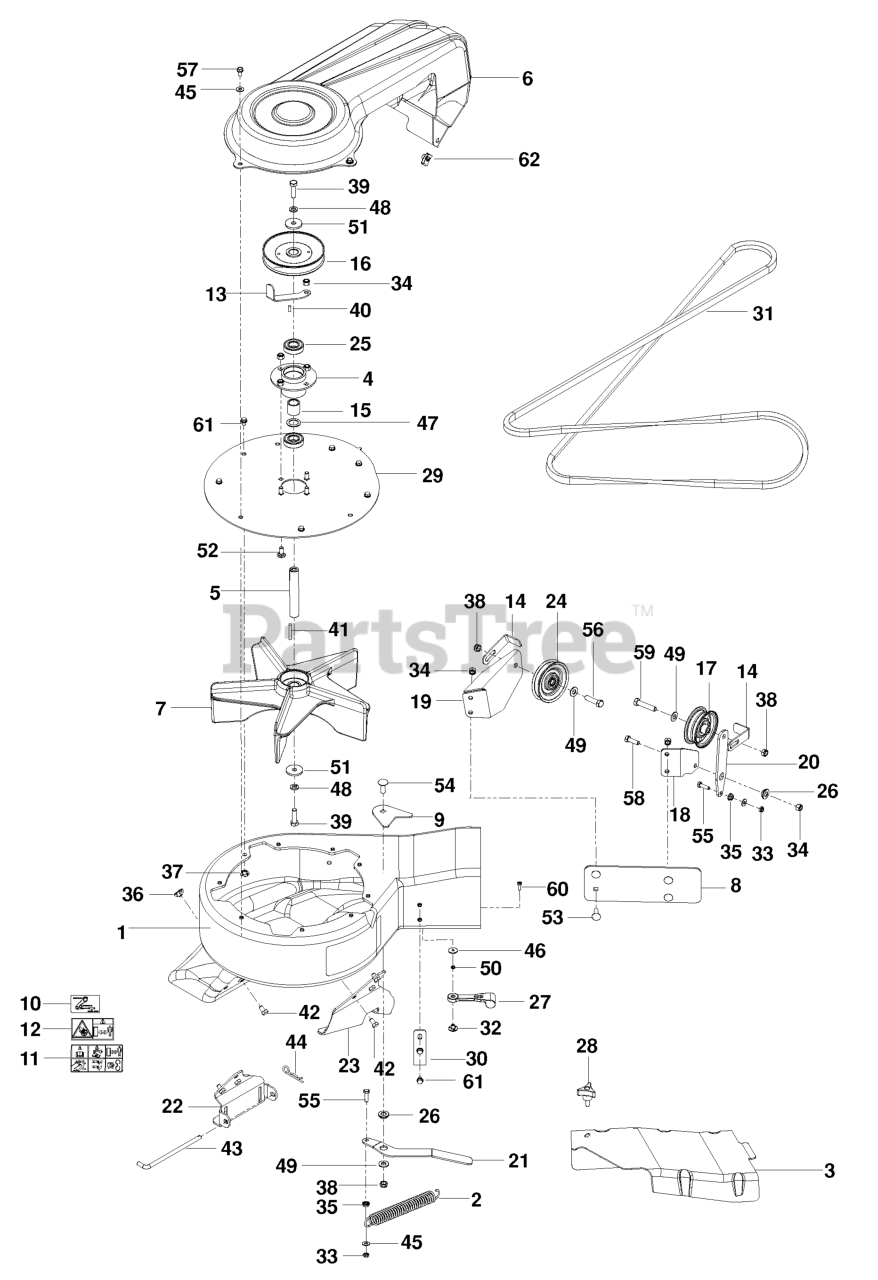

Repair Parts Parts Diagram

  • Title

1

Husqvarna 539130344

Housing W/ Decals

$

$

Not available

2

Husqvarna 539101977

Traction Spring

$17.99

$

In Stock, Qty 10

0

3

Husqvarna 539130309

Cover, Belt

$44.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539130295

Hub, Bearing

$93.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130316

Shaft, Impeller

$74.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539130293

Cover, Belt

$80.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539130292

Impeller

$120.99

$

In Stock, only 1 left!

0

8

Husqvarna 539132122

Plate, Backing

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539132124

Plate, Backing

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539130349

Decal, Belt Routing

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539105785

Decal, Warning

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539106741

Decal, Severing

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539131085

Keeper, Belt, Outer

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539131087

Keeper, Belt, Rear

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539130323

Spacer

$48.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539130324

Pulley

$53.99

$

In Stock, only 3 left!

0

17

Husqvarna 539919078

Pulley, Idler

$37.99

$

In Stock, only 3 left!

0

18

Husqvarna 539130335

Mount, Idler, Upper

$24.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539130336

Mount, Idler, Lower

$43.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539130337

Arm, Idler

$30.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539130338

Arm, Tension

$31.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539130339

Bracket, Mount, Front

$45.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539130340

Bracket, Mount, Rear

$34.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539113683

V-Idler

$66.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539130296

Bearing

$9.99

$

In Stock, only 2 left!

0

26

Husqvarna 539130301

Bushing

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539108088

Latch, Hood
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

28

Husqvarna 539104411

Knob W/ Stud
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539130341

Plate, Outer

$74.99

$

In Stock, only 1 left!

0

30

Husqvarna 539130346

Keeper

$

$

Not available

31

Husqvarna 575621701

Belt

$60.99

$

In Stock, only 1 left!

0

32

Husqvarna 539108089

Weld Nut, Plated
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539108120

Nut 1/4-20 Hex Nyloc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539108735

Nut 1/4-20 Hex Flange

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539130313

Nut 5/16-18 Tee

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 539130314

Nut 1/4-20 Tee

$4.99

$

In Stock, Qty 18

0

38

Husqvarna 539200282

Nut 3/8-16 Hex Jam Nyloc
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

39

Husqvarna 539110321

Bolt, Hex 3/8-24 X 11/4 Gr
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

40

Husqvarna 539115667

Key 3/16 X 11/2

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 539125229

Key 3/16 X 11/2

$4.99

$

In Stock, only 3 left!

0

42

Husqvarna 539130315

Hcs 5/16-18 X 1/2

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539130317

Pin

$20.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539976988

Hairpin Cotter

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990055

Washer 1/4 Flat Sae

$3.99

$

In Stock, Qty 19

0

46

Husqvarna 539108084

Washer, 3/16 X 3/4 X 16 Ga

$4.99

$

In Stock, Qty 15

0

47

Husqvarna 539910935

Washer

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 539990118

Washer 3/8 Splt Lock
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

49

Husqvarna 539990122

Washer 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 539109552

Washer 3/16 Lock

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539110323

Washer, Hardened
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

52

Husqvarna 539990316

Rhsnb 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 539990208

Rhsnb 5/16-18 X 1

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539990645

Rhsnb 3/8-16 X 1

$

$

Not available

55

Husqvarna 539990643

Hcs 1/4-20 X 7/8

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539990655

Hcs 3/8-16 X 1 1/2

$4.99

$

In Stock, only 2 left!

0

57

Husqvarna 539108461

Hcs 1/4-20 X 1/2

$4.99

$

In Stock, Qty 5

0

58

Husqvarna 539990209

Hcs 5/16-18 X 1

$1.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539976949

Hcs 3/8-16 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539976952

Screw 10-24 X .625 Rd
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

61

Husqvarna 539990302

Screw 1/4 X 3/8 Thd Frm

$

$

Not available

62

Husqvarna 539104763

Retainer, U Type

$6.49

$

In Stock, Qty 12

0
