966529102 - Dixon Grass Collection System (2009-12) REPAIR PARTS Parts Diagram

Grass Collection System

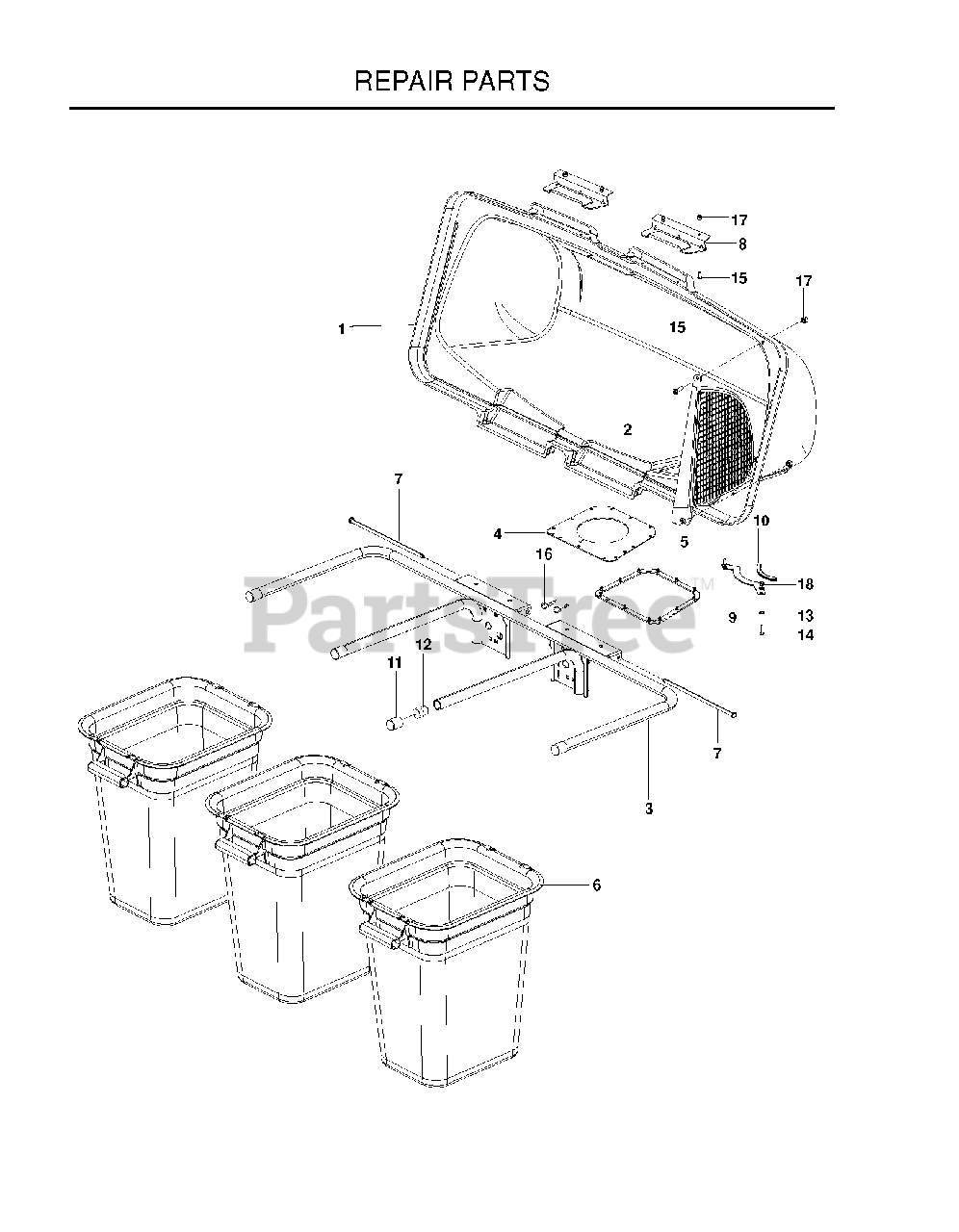

REPAIR PARTS Parts Diagram

  • Title

1

Dixon 532195373

COVER.ASM.3BIN.GENERIC.

$278.99

$

Usually ships in 3-10 days

0

2

Dixon 532192709

SCREEN.COVER.BAGGER

$26.99

$

Usually ships in 3-10 days

0

3

Dixon 532176990

BAGGER.ASM.FRAME.3BIN.BLACK

$121.99

$

Usually ships in 3-10 days

0

4

Dixon 532192550

SEAL.BAGGER.TOP.3-BIN.BLK

$20.99

$

In Stock, only 4 left!

0

5

Dixon 532192603

GASKET.COVER.BAGGER

$10.99

$

In Stock, Qty 7

0

6

Dixon 532400226

CONTAINER BAG, SOFT

$87.99

$

In Stock, only 2 left!

0

7

Dixon 532192786

BAGGER.HINGE.PIN

$17.99

$

Usually ships in 3-10 days

0

8

Dixon 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

9

Dixon 539110234

Collection Chute Support, Black

$20.99

$

In Stock, only 1 left!

0

10

Dixon 539112294

Flex Trim, 1' Black
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

11

Dixon 539108097

TUBING PLUG
(Superseded to 532174083)

$7.49

$

In Stock, only 3 left!

0

12

Dixon 522801301

SPACER PLUG, BAGGER

$7.49

$

Usually ships in 3-10 days

0

13

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

14

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

15

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

16

Dixon 539108096

RETAINER SPRING

$3.99

$

In Stock, only 2 left!

0

17

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

18

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
