966529102 - Dixon Grass Collection System (2009-12) REPAIR PARTS Parts Diagram

Grass Collection System

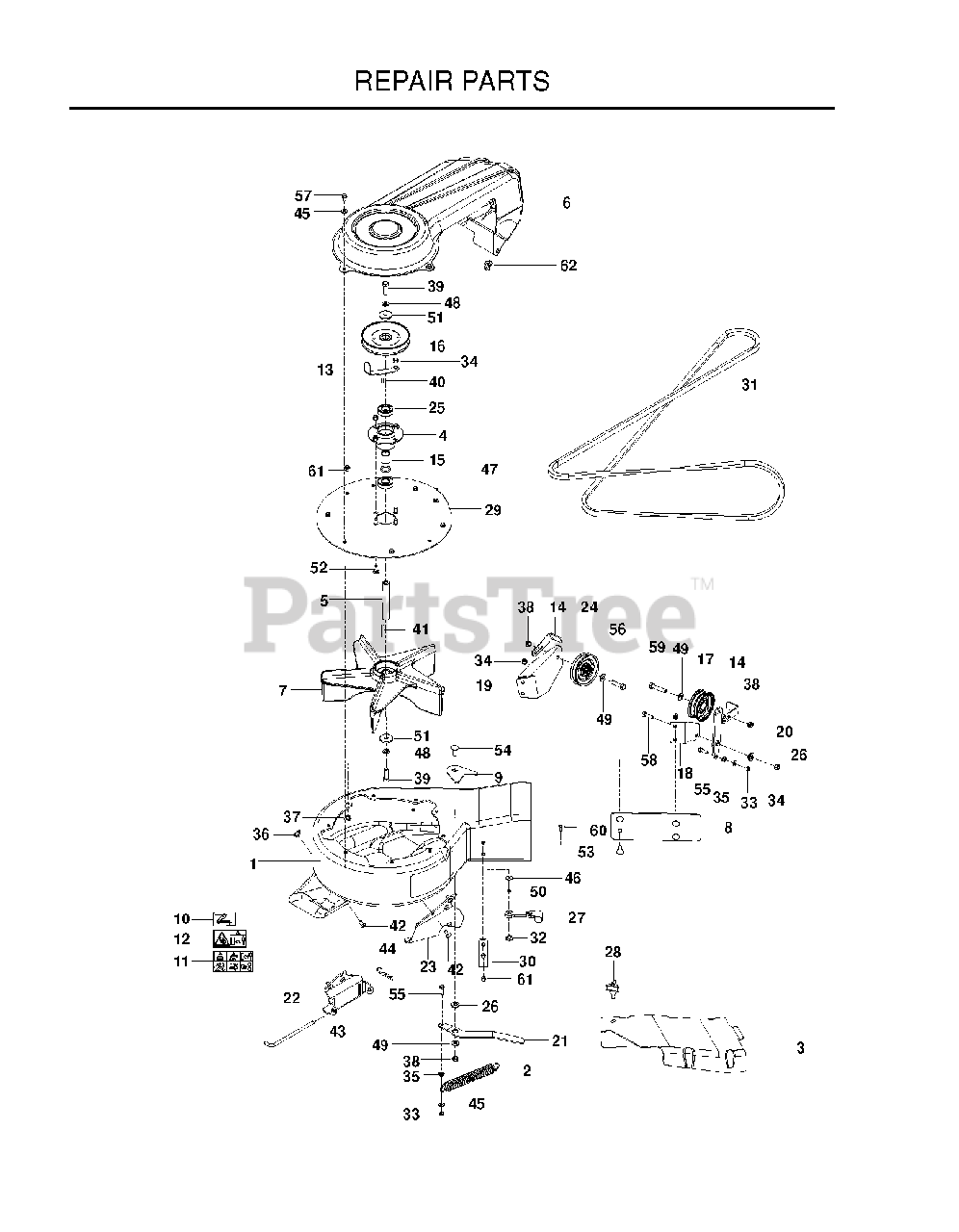

REPAIR PARTS Parts Diagram

  • Title

1

Dixon 539130344

BLOWER.HOUSING.W/DECALS.COLLEC

$

$

Not available

2

Dixon 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

3

Dixon 539130309

COVER, BELT

$44.99

$

Usually ships in 3-10 days

0

4

Dixon 539130295

HUB, BEARING

$93.99

$

Usually ships in 3-10 days

0

5

Dixon 539130316

SHAFT, IMPELLER

$74.99

$

Usually ships in 3-10 days

0

6

Dixon 539130293

COVER, BELT

$80.99

$

Usually ships in 3-10 days

0

7

Dixon 539130292

IMPELLER.COLLECTION.BLOWER.BLA

$120.99

$

In Stock, only 1 left!

0

8

Dixon 539132122

PLATE.BACKING.BLACK

$17.99

$

Usually ships in 3-10 days

0

9

Dixon 539132124

PLATE, BACKING

$11.99

$

Usually ships in 3-10 days

0

10

Dixon 539130349

DECAL, BELT ROUTING

$8.99

$

Usually ships in 3-10 days

0

11

Dixon 539105785

DECAL, EURO WARNING

$10.99

$

Usually ships in 3-10 days

0

12

Dixon 539106741

EURO DECAL, IMPELLER

$6.99

$

Usually ships in 3-10 days

0

13

Dixon 539131085

KEEPER, BELT, OUTER

$12.99

$

Usually ships in 3-10 days

0

14

Dixon 539131087

KEEPER, BELT, REAR

$34.99

$

Usually ships in 3-10 days

0

15

Dixon 539130323

SPACER

$48.99

$

Usually ships in 3-10 days

0

16

Dixon 539130324

PULLEY

$53.99

$

In Stock, only 3 left!

0

17

Dixon 539919078

IDLER PULLEY

$37.99

$

In Stock, only 3 left!

0

18

Dixon 539130335

MOUNT, IDLER, UPPER

$24.99

$

Usually ships in 3-10 days

0

19

Dixon 539130336

MOUNT, IDLER, LOWER

$43.99

$

Usually ships in 3-10 days

0

20

Dixon 539130337

ARM, IDLER

$30.99

$

Usually ships in 3-10 days

0

21

Dixon 539130338

ARM, TENSION

$31.99

$

Usually ships in 3-10 days

0

22

Dixon 539130339

BRKT, MT, FRONT

$45.99

$

Usually ships in 3-10 days

0

23

Dixon 539130340

BRKT, MT, REAR

$34.99

$

Usually ships in 3-10 days

0

24

Dixon 539113683

V-IDLER

$66.99

$

Usually ships in 3-10 days

0

25

Dixon 539130296

BEARING

$9.99

$

In Stock, only 2 left!

0

26

Dixon 539130301

BUSHING

$9.99

$

Usually ships in 3-10 days

0

27

Dixon 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

28

Dixon 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

29

Dixon 539130341

PLATE, OUTER

$74.99

$

In Stock, only 1 left!

0

30

Dixon 539130346

KEEPER

$

$

Not available

31

Dixon 539130347

Belt for 48" and 52" Grass Collection System

$103.99

$

Usually ships in 3-10 days

0

32

Dixon 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

33

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

34

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Dixon 539108735

NUT 1/4-20 HEX FLG LK ZD

$4.99

$

In Stock, only 2 left!

0

36

Dixon 539130313

NUT 5/16-18 TEE

$4.99

$

In Stock, Qty 8

0

37

Dixon 539130314

NUT 1/4-20 TEE

$4.99

$

In Stock, Qty 18

0

38

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

39

Dixon 539110321

BOLT, HEX 3/8-24 X 1.25 GR 8
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

40

Dixon 539115667

KEY, 3/16 X 1/2

$4.99

$

In Stock, only 2 left!

0

41

Dixon 539125229

KEY-SQ. 3/16 X 1 1/2

$4.99

$

In Stock, only 3 left!

0

42

Dixon 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

43

Dixon 539130317

Pin

$20.99

$

Usually ships in 3-10 days

0

44

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

46

Dixon 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

47

Dixon 539910935

WASHER .787 X 1.125 X .06

$4.99

$

In Stock, only 3 left!

0

48

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

49

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

50

Dixon 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

51

Dixon 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

52

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

53

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

54

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

55

Dixon 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

56

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

57

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

58

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

59

Dixon 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

60

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

61

Dixon 539990302

HWST 1/4C X 3/8

$

$

Not available

62

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0
