966529102 - Dixon Grass Collection System (2009-12) REPAIR PARTS Parts Diagram

Grass Collection System

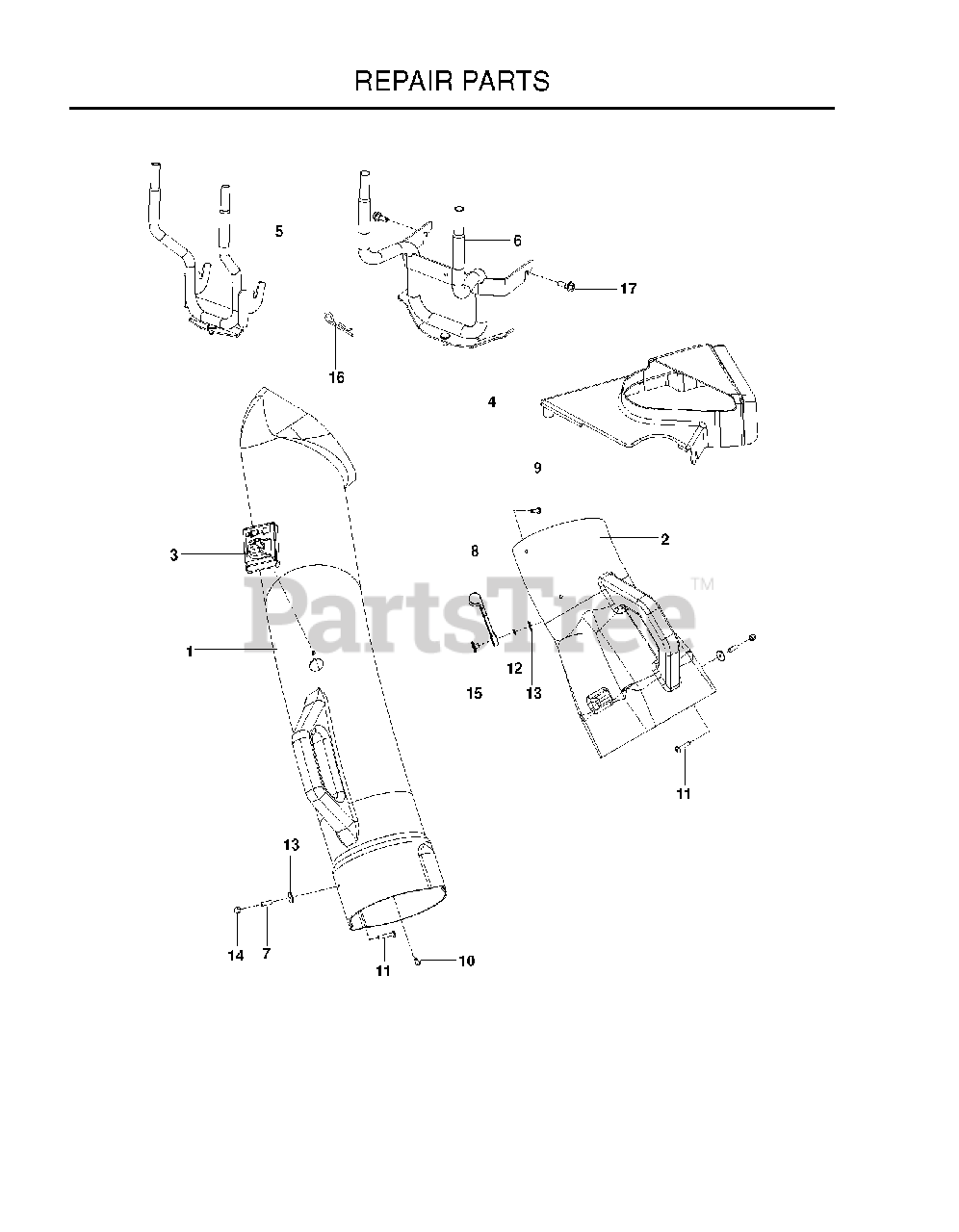

REPAIR PARTS Parts Diagram

  • Title

1

Dixon 522739202

CHUTE, UPPER - TRIMMED

$84.99

$

Usually ships in 3-10 days

0

2

Dixon 575445501

CHUTE, MIDDLE - TRIMMED

$91.99

$

Usually ships in 3-10 days

0

3

Dixon 539108082

DUMP BAG INDICATOR
(Superseded to 532140572)

$8.99

$

In Stock, only 1 left!

0

4

Dixon 575467801

Belt Shield, 48

$51.99

$

Usually ships in 3-10 days

0

5

Dixon 532198128

BAGGER.ASM.SUPPORT.GT.TEX.BLAC

$133.99

$

Usually ships in 3-10 days

0

6

Dixon 532198364

BAGGER.ASM.PNT.3-BIN.Q.BLACK

$121.99

$

Usually ships in 3-10 days

0

7

Dixon 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

8

Dixon 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

9

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

10

Dixon 539108081

SCREW
(Superseded to 818021008)

$5.99

$

Usually ships in 3-10 days

0

11

Dixon 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$3.99

$

In Stock, only 1 left!

0

12

Dixon 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

13

Dixon 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

14

Dixon 539108086

NUT 10-24 ACORN ZD

$4.99

$

In Stock, Qty 20+

0

15

Dixon 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

16

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 532176997

SHOULDER BOLT, SELF-TAP

$7.49

$

In Stock, only 4 left!

0
