966529101 - Dixon Grass Collection System (2009-12) REPAIR PARTS Parts Diagram

Grass Collection System

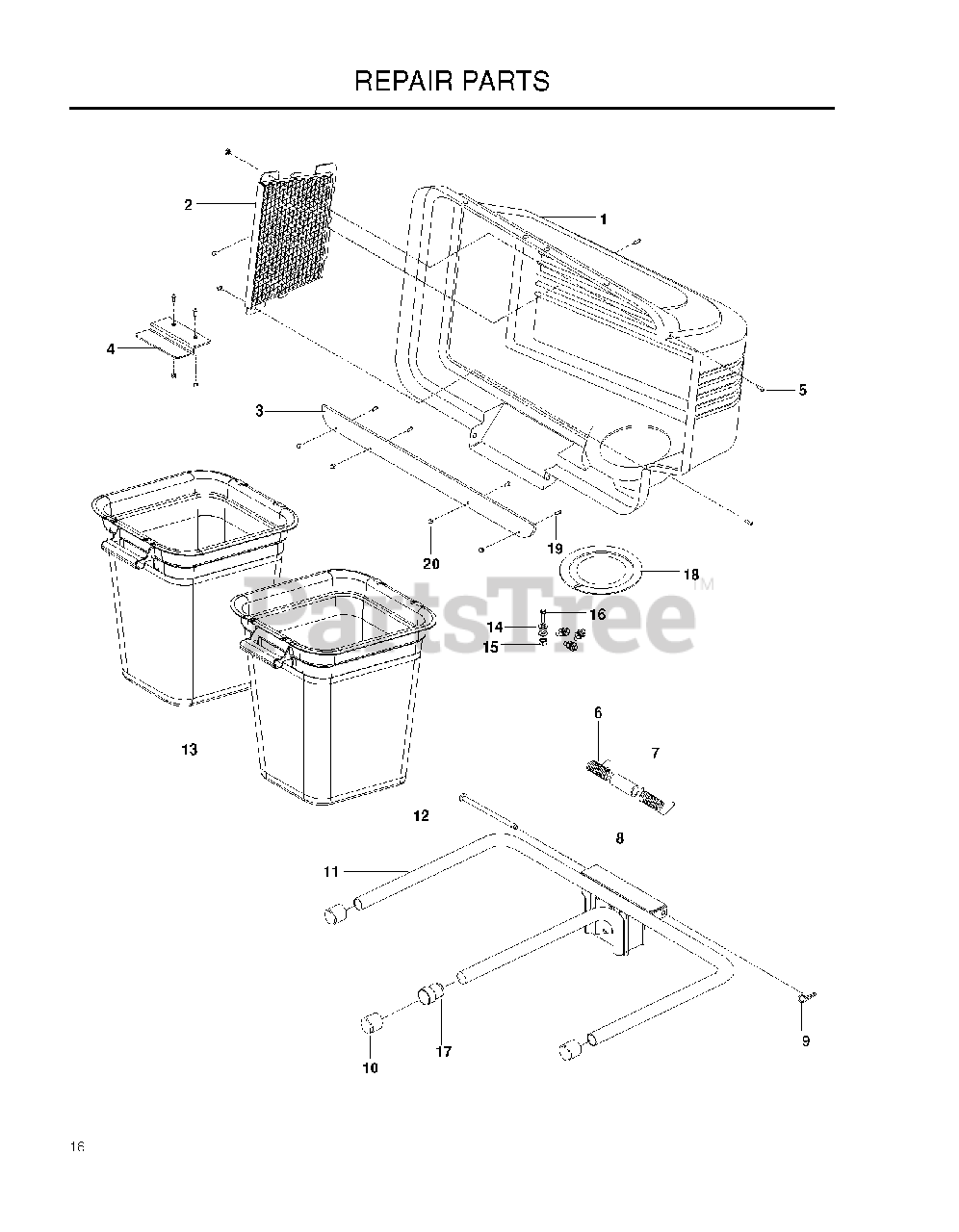

REPAIR PARTS Parts Diagram

  • Title

1

Dixon 539111139

HOOD ASM

$

$

Not available

2

Dixon 532127533

COVER SCREEN

$18.99

$

Usually ships in 3-10 days

0

3

Dixon 532155042

STRIP.REINFORCE.BAGGER.2BIN.BL

$18.99

$

In Stock, only 1 left!

0

4

Dixon 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

5

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

6

Dixon 532132796

SPRING COVER LH

$6.99

$

In Stock, only 1 left!

0

7

Dixon 532132983

SPRING COVER RH

$6.99

$

In Stock, only 1 left!

0

8

Dixon 532133235

SPACER.COVER.BAGGER

$7.49

$

In Stock, only 1 left!

0

9

Dixon 532085902

RETAINER SPRING
(Superseded to 596919601)

$3.99

$

In Stock, Qty 20+

0

10

Dixon 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 3 left!

0

11

Dixon 532179746

FRAME.ASM.BAGGER.2BIN.QC42B

$121.99

$

In Stock, only 1 left!

0

12

Dixon 532128600

HINGE PIN
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

13

Dixon 532400226

CONTAINER BAG, SOFT

$87.99

$

In Stock, only 2 left!

0

14

Dixon 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

15

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

16

Dixon 539106312

SCREW 10-24 X 3/4

$9.99

$

Usually ships in 3-10 days

0

17

Dixon 522801301

SPACER PLUG, BAGGER

$7.49

$

Usually ships in 3-10 days

0

18

Dixon 532127534

GASKET.COVER.BAGGER

$13.99

$

Usually ships in 3-10 days

0

19

Dixon 539108081

SCREW
(Superseded to 818021008)

$5.99

$

Usually ships in 3-10 days

0

20

Dixon 539108086

NUT 10-24 ACORN ZD

$4.99

$

In Stock, Qty 20+

0
