966529101 - Dixon Grass Collection System (2009-12) REPAIR PARTS Parts Diagram

Grass Collection System

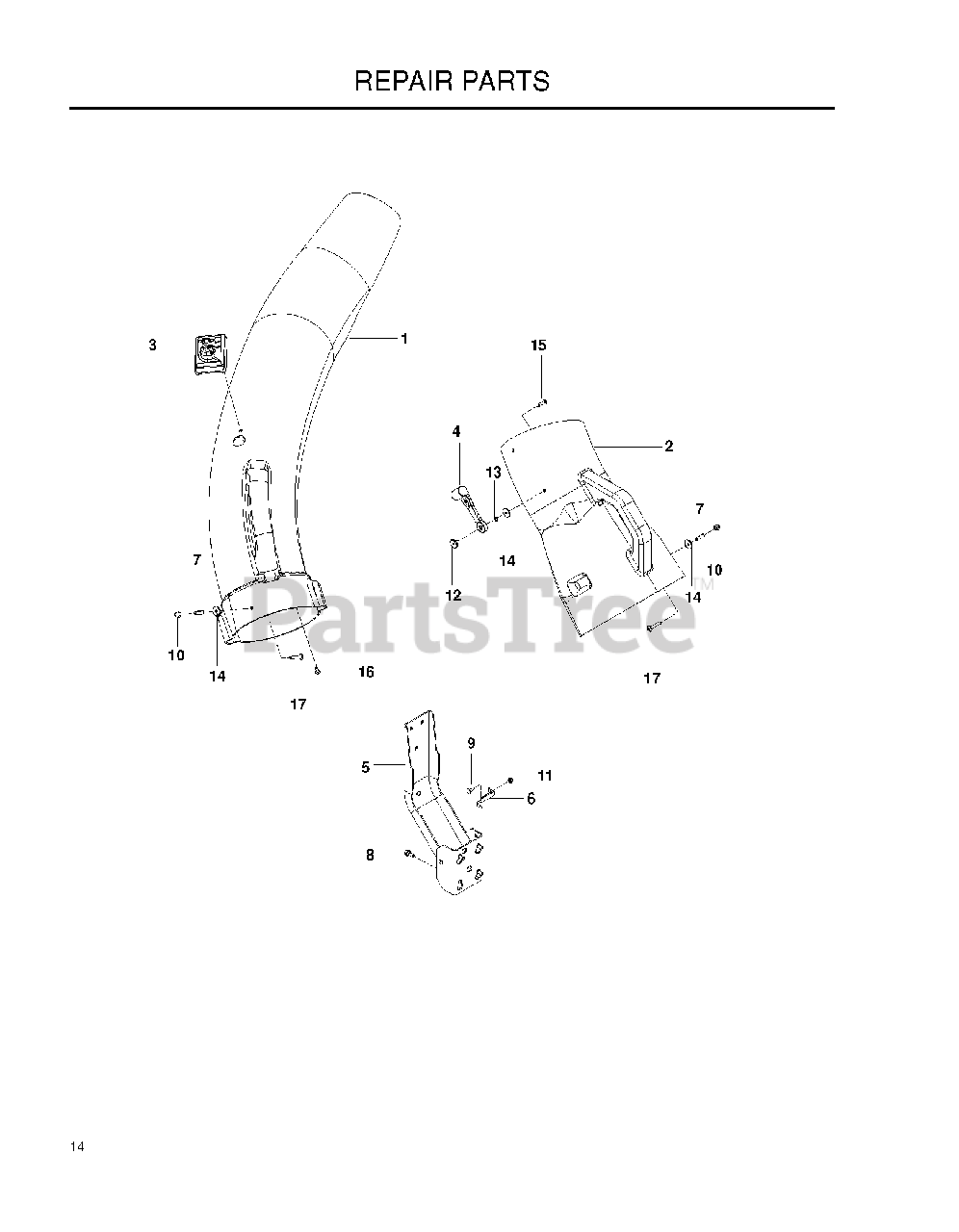

REPAIR PARTS Parts Diagram

  • Title

1

Dixon 532187299

UPPER CHUTE 54"

$145.99

$

Usually ships in 3-10 days

0

2

Dixon 575445501

CHUTE, MIDDLE - TRIMMED

$91.99

$

Usually ships in 3-10 days

0

3

Dixon 539108082

DUMP BAG INDICATOR
(Superseded to 532140572)

$8.99

$

In Stock, only 1 left!

0

4

Dixon 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

5

Dixon 532180923

Bagger Support Post, Black

$72.99

$

Usually ships in 3-10 days

0

6

Dixon 532179745

STOP BRACKET, BAGGER 2 BIN

$5.99

$

Usually ships in 3-10 days

0

7

Dixon 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

8

Dixon 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, only 3 left!

0

9

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539108086

NUT 10-24 ACORN ZD

$4.99

$

In Stock, Qty 20+

0

11

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

12

Dixon 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

14

Dixon 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

15

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

16

Dixon 539108081

SCREW
(Superseded to 818021008)

$5.99

$

Usually ships in 3-10 days

0

17

Dixon 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$3.99

$

In Stock, only 1 left!

0
