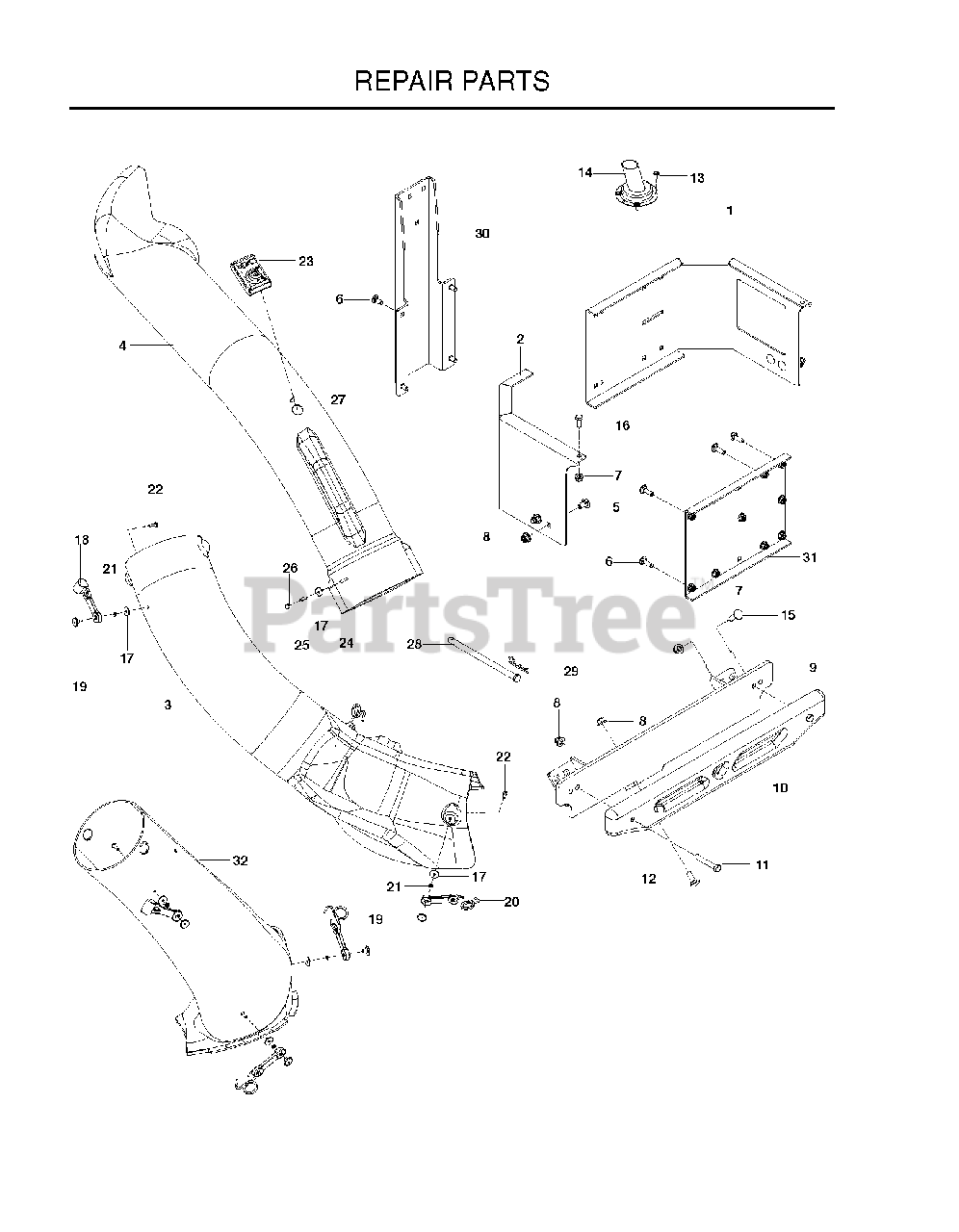

966487601 - Dixon Grass Collection System (2009-11) REPAIR PARTS Parts Diagram

Grass Collection System

REPAIR PARTS Parts Diagram

  • Title

1

Dixon 574872102

GUARD, REAR LEFT, BLK

Note: LT

$75.99

$

Usually ships in 3-10 days

0

2

Dixon 574872202

GUARD, REAR RIGHT, BLK

Note: RT

$61.99

$

Usually ships in 3-10 days

0

3

Dixon 573975801

CHUTE, LOWER 30

Note: LOWER

$182.99

$

Usually ships in 3-10 days

0

4

Dixon 539108141

CHUTE.COLLECTION.UPPER

Note: UPPER

$120.99

$

In Stock, only 1 left!

0

5

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

8

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

9

Dixon 574255502

WELDMENT.WEIGHT.BRACKET.RZ30.B

$157.99

$

Usually ships in 3-10 days

0

10

Dixon 539113177

WEIGHT.CAST

$242.99

$

Usually ships in 3-10 days

0

11

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

13

Dixon 539115537

SCREW, TAP #10-16 X 1/2

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539131601

MUFFLER EXTENSION

$40.99

$

Usually ships in 3-10 days

0

15

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Dixon 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

18

Dixon 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

19

Dixon 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

20

Dixon 539108194

LATCH ASSY TBR
(Superseded to 597000601)

$6.99

$

In Stock, Qty 12

0

21

Dixon 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

22

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

23

Dixon 539108082

DUMP BAG INDICATOR
(Superseded to 532140572)

$8.99

$

In Stock, only 1 left!

0

24

Dixon 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$3.99

$

In Stock, only 1 left!

0

25

Dixon 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

26

Dixon 539108086

NUT 10-24 ACORN ZD

$4.99

$

In Stock, Qty 20+

0

27

Dixon 539108081

SCREW
(Superseded to 818021008)

$5.99

$

Usually ships in 3-10 days

0

28

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

29

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 574031102

BRACKET, COLLECTION (PTD)

$72.99

$

Usually ships in 3-10 days

0

31

Dixon 574872302

PLATE, REAR SUPPORT, BLK

$61.99

$

Usually ships in 3-10 days

0

32

Dixon 575494401

BOOT.LOWER.42
(Superseded to 592866501)

$106.99

$

In Stock, only 1 left!

0
