966406901 - Husqvarna Collection System (2010-01) Repair Parts Parts Diagram

Collection System

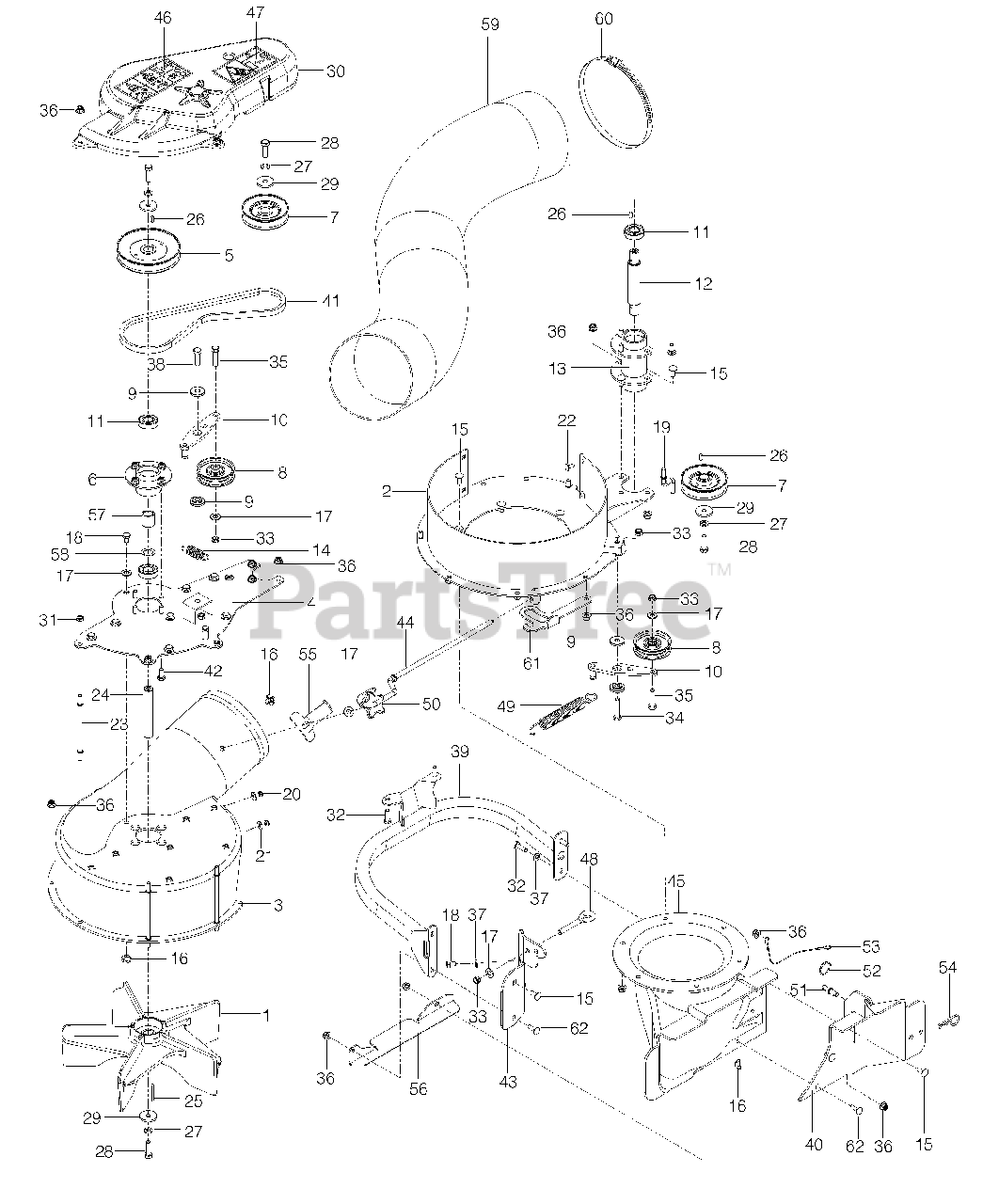

Repair Parts Parts Diagram

  • Title

1

Husqvarna 575488401

Impeller

$363.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522593902

Blower Ring

$302.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522594001

Housing, Impeller

$121.99

$

In Stock, only 1 left!

0

4

Husqvarna 522594402

Top Plate

$341.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130324

Pulley

$53.99

$

In Stock, only 3 left!

0

6

Husqvarna 539130295

Hub

$93.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522594601

Pulley, Drive

$43.99

$

In Stock, Qty 19

0

8

Husqvarna 539106721

Idler

$31.99

$

In Stock, only 2 left!

0

9

Husqvarna 539132161

Bushing, Brake

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 522594802

Arm, Idler

$72.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539130296

Bearing

$9.99

$

In Stock, only 2 left!

0

12

Husqvarna 522594901

Shaft, Spindle

$43.99

$

Usually ships in 3-10 days

0

13

Husqvarna 522595001

Tube, Spindle

$125.99

$

Usually ships in 3-10 days

0

14

Husqvarna 522595101

Spring, Idler

$10.99

$

In Stock, only 1 left!

0

15

Husqvarna 539990316

Rhsnb 5/16-18 X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539130313

Nut 5/16-18 Tee

$4.99

$

In Stock, Qty 8

0

17

Husqvarna 539990122

Washer 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539130315

Hcs 5/16-18 X 1/2

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 522595201

Keeper, Belt

$36.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108120

Nut 1/4-20 Hex Thin Nyloc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 539990598

Washer 1/4 Flat

$

$

Not available

22

Husqvarna 539111786

Rhssnb 1/4-20 X 5/8

$2.49

$

Usually ships in 3-10 days

0

23

Husqvarna 522595301

Pin, Retention

$9.49

$

In Stock, only 1 left!

0

24

Husqvarna 539130316

Shaft, Impeller

$74.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539125229

Key 3/16 X 11/2 Sq

$4.99

$

In Stock, only 3 left!

0

26

Husqvarna 539115667

Key 3/16 X 1/2

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 539990118

Washer, 3/ Splt Lock
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539110321

Bolt 3/8-24 X 11/4 Hex Gr 8
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 539110323

Washer, Hardened
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

30

Husqvarna 522595402

Shield W/ Decals, Belt

$136.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539107897

Nut 5/16-18 Hex Jam

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990209

Hcs 5/16-18 X 1

$1.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539200282

Nut, 3/8-16 Hex Jam Nyloc
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

34

Husqvarna 539976949

Hcs 3/8-16 X 13/4

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990655

Hcs 3/8-16 X 11/2

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539112899

Nut 5/16-18 Hex Flg Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

37

Husqvarna 539990188

Washer 5/16 Sae Flat
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539976941

Hcs 3/8-16 X 11/4

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 522596202

Guard

$170.99

$

Usually ships in 3-10 days

0

40

Husqvarna 522596502

Mount, Rear, 60"
(Superseded to 580279402)

$194.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101386

Belt

$42.99

$

In Stock, Qty 6

0

42

Husqvarna 539976934

Hcs 5/16-18 X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 522595502

Bracket, Mount, Ft

$43.99

$

Usually ships in 3-10 days

0

44

Husqvarna 522595601

Pin, Mount

$45.99

$

Usually ships in 3-10 days

0

45

Husqvarna 522593301

Housing, Blower

$145.99

$

In Stock, only 2 left!

0

46

Husqvarna 539105785

Decal, Warning

$10.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539106741

Decal, Severing

$6.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539107484

Eye Bolt

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532196105

Spring, Deck Drive

$7.99

$

In Stock, Qty 11

0

50

Husqvarna 574039301

Knob 5/16-18 X 1/2

$7.99

$

Usually ships in 3-10 days

0

51

Husqvarna 574031301

Pin, Mount

$21.99

$

In Stock, only 2 left!

0

52

Husqvarna 539916459

Retainer, Ring

$6.49

$

In Stock, Qty 5

0

53

Husqvarna 539102563

Lanyard

$9.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539976989

Hairpin #4

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 573989702

Bracket, Retainer

$62.99

$

Usually ships in 3-10 days

0

56

Husqvarna 575699602

Bracket, Diverter Blk

$37.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539130323

Spacer

$48.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539910935

Washer

$4.99

$

In Stock, only 3 left!

0

59

Husqvarna 539111314

Hose

$339.99

$

Usually ships in 3-10 days

0

60

Husqvarna 574386601

Clamp, Hose

$9.99

$

Usually ships in 3-10 days

0

61

Husqvarna 575472002

Latch

$17.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539990208

Rhsnb 5/16-18 X 1

$3.99

$

Usually ships in 3-10 days

0
