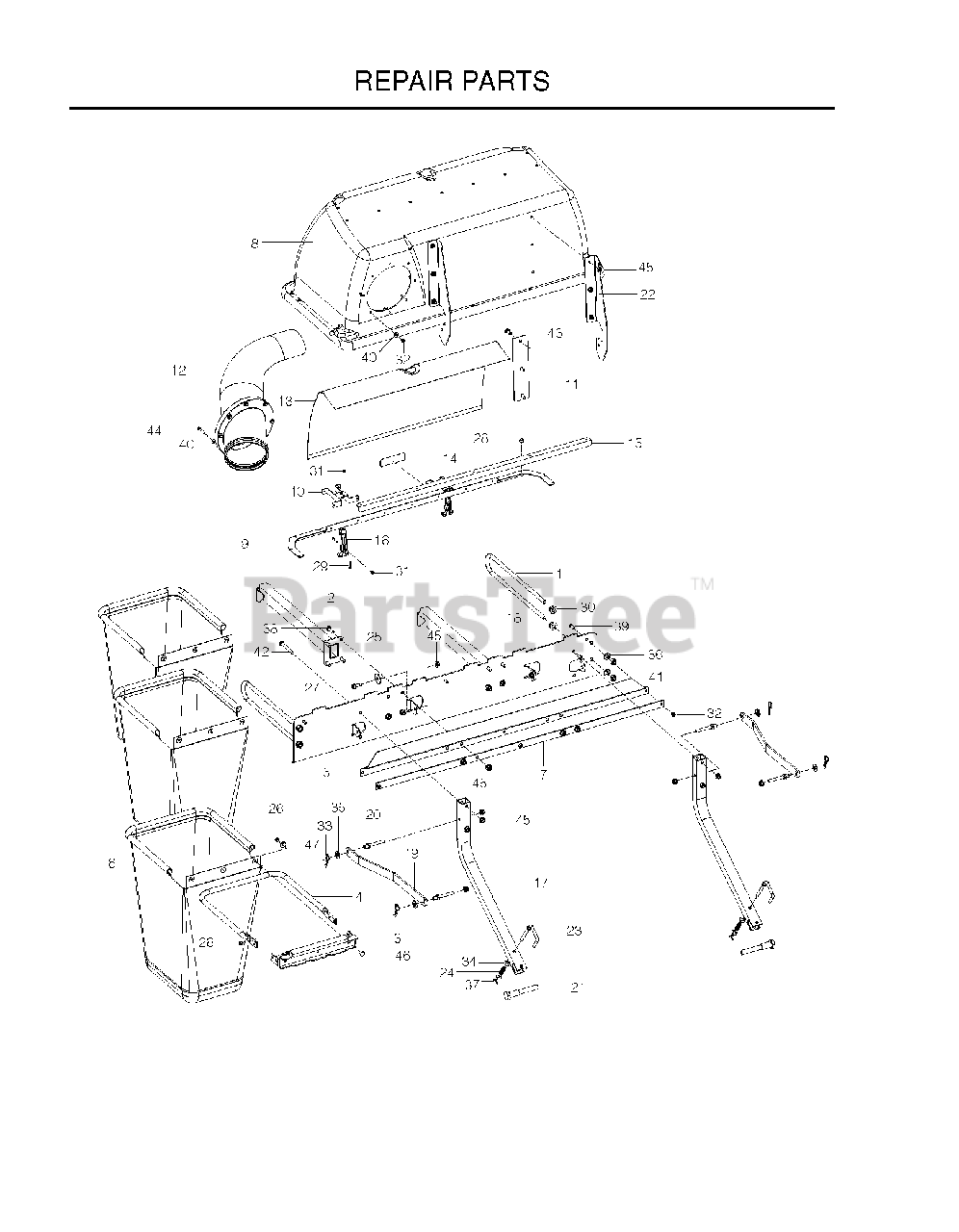

966406901 - Dixon Grass Collection System (2010-01) HOOD Parts Diagram

Grass Collection System

HOOD Parts Diagram

  • Title

1

Dixon 539111158

SUPPORT, OUTER

$39.99

$

Usually ships in 3-10 days

0

2

Dixon 539111162

SUPPORT ARM WELDMENT

$193.99

$

Usually ships in 3-10 days

0

3

Dixon 575467702

HANGER, BAG, BLK

$66.99

$

Usually ships in 3-10 days

0

4

Dixon 539111166

TUBE BAG FRAME

$84.99

$

Usually ships in 3-10 days

0

5

Dixon 539111167

SEAL, RUBBER

$27.99

$

Usually ships in 3-10 days

0

6

Dixon 539111168

BAG, LARGE

$250.99

$

In Stock, only 1 left!

0

7

Dixon 539111171

SEAL STRAP

$27.99

$

Usually ships in 3-10 days

0

8

Dixon 539111172

HOOD

$319.99

$

Usually ships in 3-10 days

0

9

Dixon 539111174

HOOD SUPPORT

$

$

Not available

10

Dixon 539111175

SUPPORT, DRAW LATCH

$36.99

$

Usually ships in 3-10 days

0

11

Dixon 539111181

MOUNT PLATE

$48.99

$

Usually ships in 3-10 days

0

12

Dixon 539111182

INLET TUB

$109.99

$

Usually ships in 3-10 days

0

13

Dixon 539111183

MESH, POLY DIAMOND

$24.99

$

Usually ships in 3-10 days

0

14

Dixon 539111260

DECAL, VENTILATION

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 575486802

SUPPORT, HOOD-RR, BLK

$136.99

$

Usually ships in 3-10 days

0

16

Dixon 539200478

DRAW LATCH, FLEXIBLE T-HANDLE
(Superseded to 540200478)

$34.99

$

Usually ships in 3-10 days

0

17

Dixon 525444502

TUBE, HITCH, BLK

$121.99

$

Usually ships in 3-10 days

0

18

Dixon 525444702

PLATE, MOUNT, BLK

$227.99

$

Usually ships in 3-10 days

0

19

Dixon 525444902

STRAP, BLK

$51.99

$

Usually ships in 3-10 days

0

20

Dixon 525445001

PIN, MOUNT

$39.99

$

Usually ships in 3-10 days

0

21

Dixon 525445301

BOLT, PIVOT

$43.99

$

Usually ships in 3-10 days

0

22

Dixon 525445402

BRACKET, HINGE, BLK

$43.99

$

Usually ships in 3-10 days

0

23

Dixon 525815901

PIN, RETENTION

$31.99

$

Usually ships in 3-10 days

0

24

Dixon 525816001

SPRING, COMPRESSION

$4.99

$

Usually ships in 3-10 days

0

25

Dixon 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 8

0

26

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

28

Dixon 539110033

WASHER, #10 MACH SCR BLK OX

$4.99

$

Usually ships in 3-10 days

0

29

Dixon 539111186

SCR, #10-24 X 1-1/8

$2.49

$

Usually ships in 3-10 days

0

30

Dixon 539111187

NUT 1/2-13 HEX

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

32

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

33

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

35

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

36

Dixon 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

38

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

39

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

40

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

41

Dixon 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

42

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

43

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

44

Dixon 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

46

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

47

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0
