966406901 - Dixon Grass Collection System (2010-01) FAN Parts Diagram

Grass Collection System

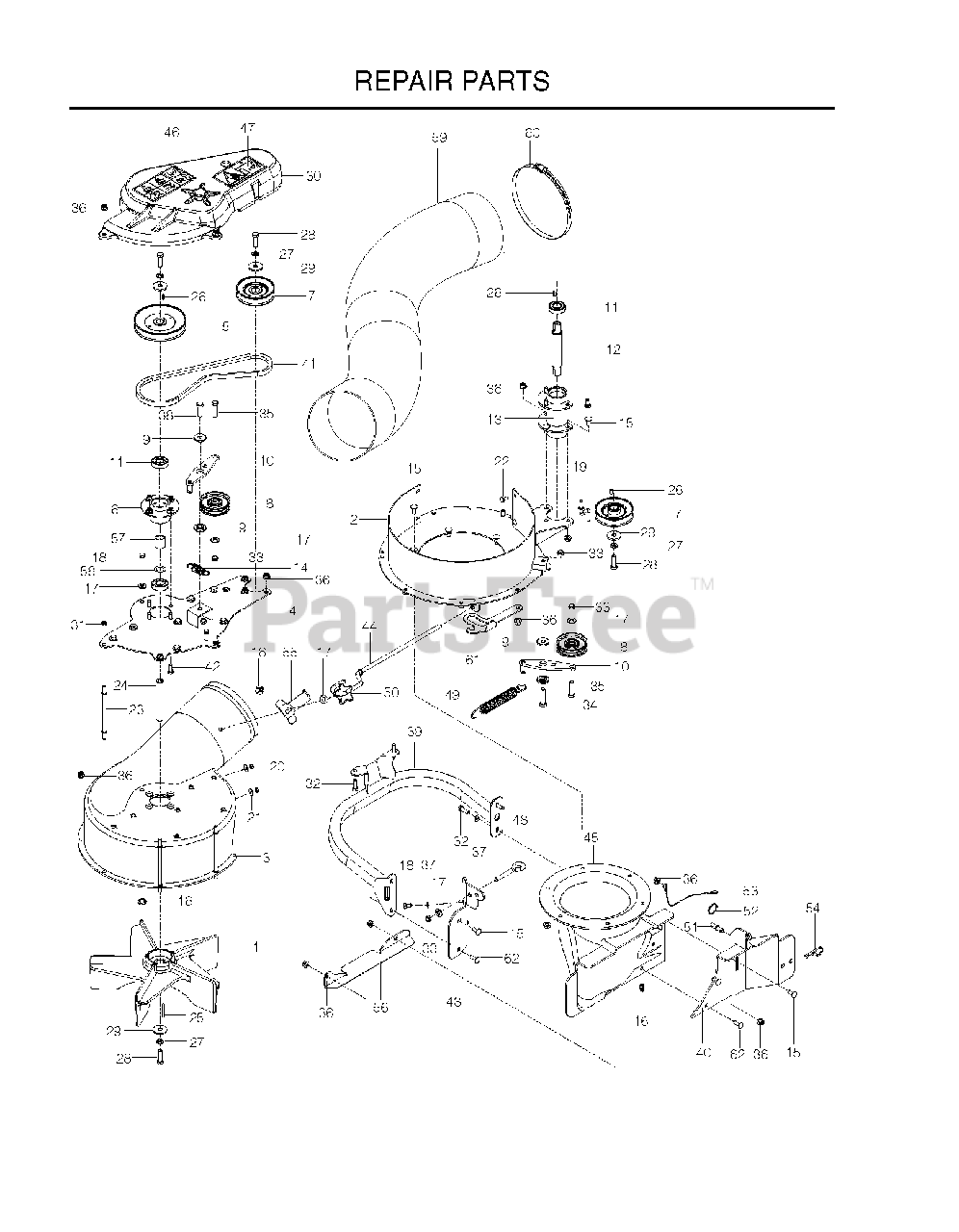

FAN Parts Diagram

1

Dixon 575488401

IMPELLER, WELDMENT

$376.99

$

Usually ships in 3-10 days

0

2

Dixon 522593902

WELDMENT, BLOWER RING, BLK

$433.99

$

Usually ships in 3-10 days

0

3

Dixon 522594001

HOUSING, IMPELLER

$182.99

$

In Stock, only 1 left!

0

4

Dixon 522594402

WELDMENT, TOP PLATE, BLK

$433.99

$

Usually ships in 3-10 days

0

5

Dixon 539130324

PULLEY

$53.99

$

Usually ships in 3-10 days

0

6

Dixon 539130295

HUB, BEARING

$93.99

$

Usually ships in 3-10 days

0

7

Dixon 522594601

PULLEY, DRIVE

$43.99

$

In Stock, Qty 19

0

8

Dixon 539106721

PULLEY

$31.99

$

In Stock, only 2 left!

0

9

Dixon 539132161

BUSHING, BRAKE

$6.49

$

Usually ships in 3-10 days

0

10

Dixon 522594802

WELDMENT, IDLER, BLK

$72.99

$

Usually ships in 3-10 days

0

11

Dixon 539130296

BEARING

$9.99

$

In Stock, Qty 7

0

12

Dixon 522594901

SHAFT, SPINDLE

$56.99

$

Usually ships in 3-10 days

0

13

Dixon 522595001

WELDMENT, SPINDLE TUBE

$148.99

$

In Stock, only 1 left!

0

14

Dixon 522595101

SPRING, IDLER

$10.99

$

In Stock, only 1 left!

0

15

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Dixon 539130313

NUT 5/16-18 TEE

$4.99

$

In Stock, Qty 8

0

17

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 522595201

KEEPER, BELT

$36.99

$

Usually ships in 3-10 days

0

20

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

21

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

22

Dixon 539111786

RHSSNB, 1/4-20X5/8

$3.49

$

Usually ships in 3-10 days

0

23

Dixon 522595301

PIN, RETENTION

$13.99

$

In Stock, only 1 left!

0

24

Dixon 539130316

SHAFT, IMPELLER

$74.99

$

In Stock, only 2 left!

0

25

Dixon 539125229

KEY-SQ. 3/16 X 1 1/2

$4.99

$

In Stock, only 2 left!

0

26

Dixon 539115667

KEY, 3/16 X 1/2

$4.99

$

In Stock, only 2 left!

0

27

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

28

Dixon 539110321

BOLT, HEX 3/8-24 X 1.25 GR 8
(Superseded to 532850857)

$4.99

$

In Stock, Qty 20+

0

29

Dixon 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, Qty 20+

0

30

Dixon 522595402

SHIELD, TOP BELT, W/DECALS

$103.99

$

Usually ships in 3-10 days

0

31

Dixon 539107897

NUT 5/16-18 HEX JAM ZD

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

33

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 7

0

34

Dixon 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

35

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

36

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

37

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

38

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

39

Dixon 522596202

GUARD, RUB, BLK

$

$

Not available

40

Dixon 522596502

MOUNT, REAR, BLK
(Superseded to 580279402)

$319.99

$

Usually ships in 3-10 days

0

41

Dixon 539101386

BELT-TRANS

$42.99

$

In Stock, Qty 5

0

42

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

43

Dixon 522595502

BRACKET, MOUNT, FT-BLK

$45.99

$

Usually ships in 3-10 days

0

44

Dixon 522595601

PIN, MOUNT

$

$

Not available

45

Dixon 522593301

HOUSING, BLOWER

$148.99

$

Usually ships in 3-10 days

0

46

Dixon 539105785

DECAL, EURO WARNING

$10.99

$

Usually ships in 3-10 days

0

47

Dixon 539106741

EURO DECAL, IMPELLER

$6.99

$

Usually ships in 3-10 days

0

48

Dixon 539107484

EYE BOLT

$6.49

$

Usually ships in 3-10 days

0

49

Dixon 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 20+

0

50

Dixon 574039301

KNOB, 5/16-18 X 1/2

$10.99

$

Usually ships in 3-10 days

0

51

Dixon 574031301

PIN, MOUNT

$21.99

$

In Stock, only 2 left!

0

52

Dixon 539916459

RETAINER

$6.49

$

In Stock, Qty 5

0

53

Dixon 539102563

LANYARD

$9.99

$

Usually ships in 3-10 days

0

54

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

55

Dixon 573989702

BRACKET, RETAINER, BLK

$79.99

$

Usually ships in 3-10 days

0

56

Dixon 575699602

BRACKET, DIVERTER BLK

$56.99

$

Usually ships in 3-10 days

0

57

Dixon 539130323

SPACER

$48.99

$

Usually ships in 3-10 days

0

58

Dixon 539910935

WASHER .787 X 1.125 X .06

$4.99

$

In Stock, only 3 left!

0

59

Dixon 539111314

HOSE 7 X 54 CLEAR

$339.99

$

Usually ships in 3-10 days

0

60

Dixon 574386601

CLAMP, HOSE

$9.99

$

Usually ships in 3-10 days

0

61

Dixon 575472002

LATCH, PIN, BLK

$20.99

$

Usually ships in 3-10 days

0

62

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0
