966004901 - Dixon Grass Collection System for 52" Kodiak SE Zero-Turn Mowers (2009-01) REPAIR PARTS Parts Diagram

Grass Collection System for 52" Kodiak SE Zero-Turn Mowers

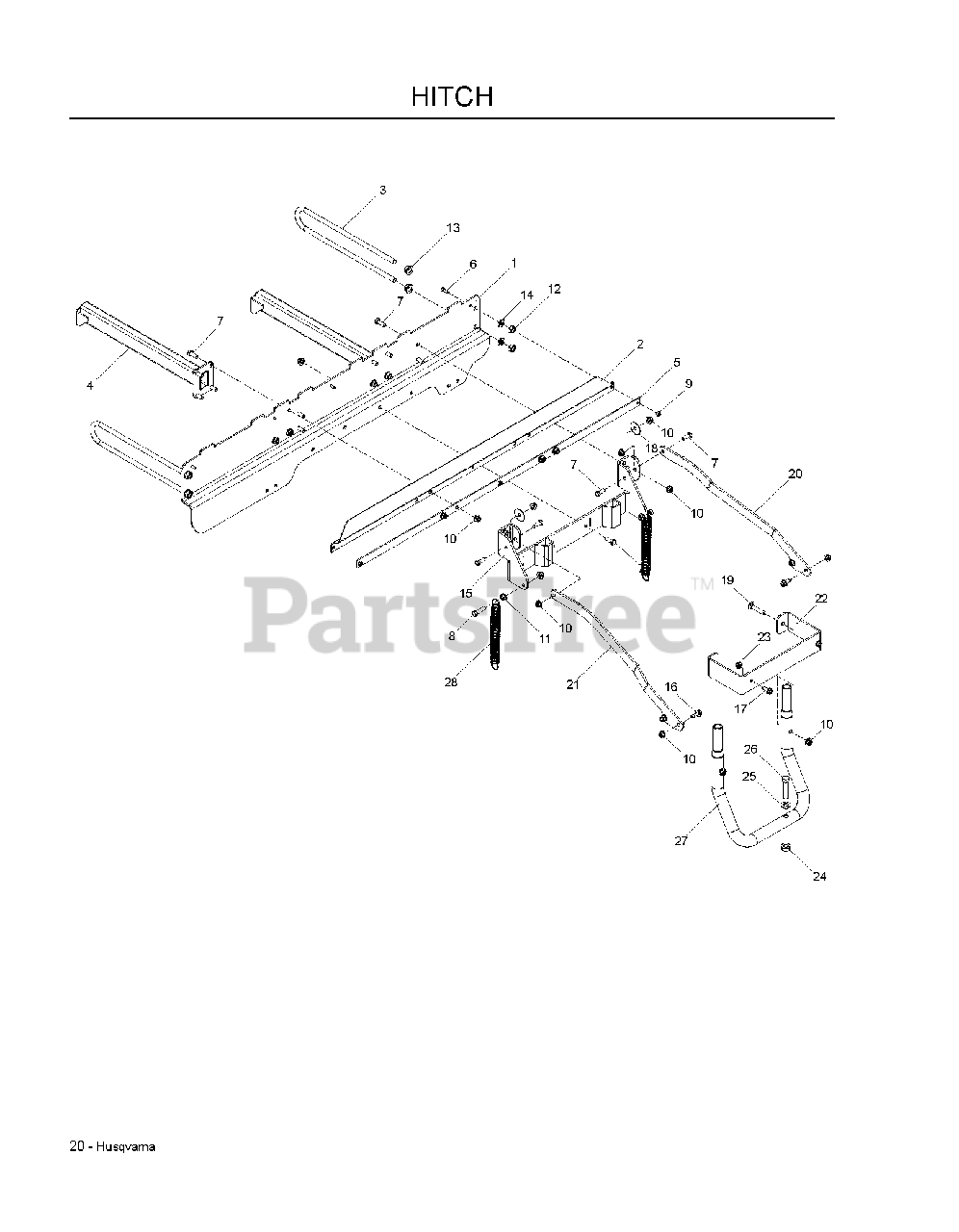

REPAIR PARTS Parts Diagram

  • Title
1

Dixon 539111157

MOUNT Z BRACE

$141.99

$

Usually ships in 3-10 days

0

2

Dixon 539111167

SEAL, RUBBER

$27.99

$

Usually ships in 3-10 days

0

3

Dixon 539111158

SUPPORT, OUTER

$39.99

$

Usually ships in 3-10 days

0

4

Dixon 539111162

SUPPORT ARM WELDMENT

$193.99

$

Usually ships in 3-10 days

0

5

Dixon 539111171

SEAL STRAP

$27.99

$

Usually ships in 3-10 days

0

6

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

8

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

9

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

11

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

13

Dixon 539111187

NUT 1/2-13 HEX

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 522910802

MOUNT, HITCH, BLK

$194.99

$

Usually ships in 3-10 days

0

16

Dixon 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

17

Dixon 539113226

No Description Available
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539102998

No Description Available

$8.99

$

In Stock, Qty 8

0

19

Dixon 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

20

Dixon 522910302

STRAP, RT, BLK

Note: RT

$54.99

$

Usually ships in 3-10 days

0

21

Dixon 522910202

STRAP, LT, BLK

Note: LT

$54.99

$

Usually ships in 3-10 days

0

22

Dixon 522910502

BRACKET, SUPPORT, BLK

$36.99

$

Usually ships in 3-10 days

0

23

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

25

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

26

Dixon 539107706

HEX SCREW-.5C X 2.25

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 522910402

TUBE, HITCH, BLK

$109.99

$

Usually ships in 3-10 days

0

28

$

$

Not available
