966004401 - Dixon Blower and Bagger for 44" Zero-Turn Mowers (2009-05) REPAIR PARTS Parts Diagram

Blower and Bagger for 44" Zero-Turn Mowers

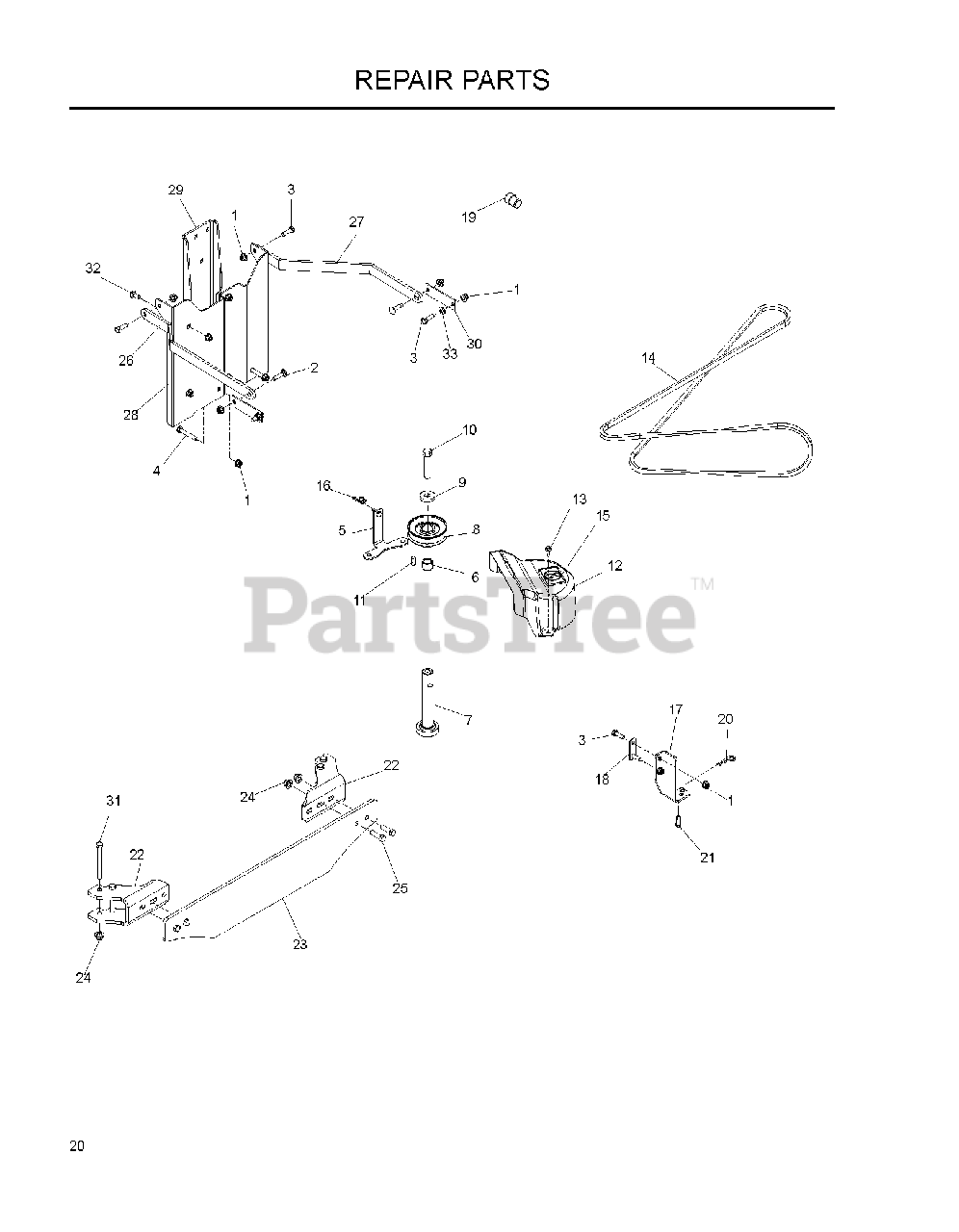

REPAIR PARTS Parts Diagram

  • Title

1

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

2

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$5.49

$

In Stock, Qty 20+

0

3

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

4

Dixon 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539133040

BELT SHIELD STANDOFF - 44

$

$

Not available

6

Dixon 522956401

SPACER, DRIVE PULLEY - .680"

$

$

Not available

7

Dixon 539121105

SHAFT

$72.99

$

Usually ships in 3-10 days

0

8

Dixon 522956501

PULLEY, SPDZTR 44

$

$

Not available

9

Dixon 539115636

WASHER .525 X 1.375 X .25

$11.99

$

In Stock, only 1 left!

0

10

Dixon 539133070

BOLT, 1/2-20 X 2-1/2

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539116196

OUTER SHAFT KEY

$4.99

$

Usually ships in 3-10 days

0

12

Dixon 525399301

SHIELD, BELT - 44 SPDZTR

$36.99

$

Usually ships in 3-10 days

0

13

Dixon 539115643

SCREW, TAP & DR #12-14 X 3/4

$10.99

$

In Stock, only 2 left!

0

14

Dixon 539128512

BELT A-83 KEVLAR

$

$

Not available

15

Dixon 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

Usually ships in 3-10 days

0

16

Dixon 539990997

WING NUT 1/4

$3.49

$

Usually ships in 3-10 days

0

17

Dixon 522860702

BRACKET, HOLD DOWN

$

$

Not available

18

Dixon 522674502

PLATE, BACK UP

$8.99

$

Usually ships in 3-10 days

0

19

Dixon 522801301

SPACER PLUG, BAGGER

$7.49

$

Usually ships in 3-10 days

0

20

Dixon 539108096

RETAINER SPRING

$5.99

$

In Stock, only 2 left!

0

21

Dixon 539107697

CLEVIS PIN

$

$

Not available

22

Dixon 522923202

BRACKET WEIGHT BLK

$60.99

$

Usually ships in 3-10 days

0

23

Dixon 539113232

No Description Available

$262.99

$

In Stock, only 1 left!

0

24

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

25

Dixon 539976941

HCS 3/8C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

26

Dixon 522854402

STRAP, SUPPORT, RT BLK

Note: RT

$157.99

$

Usually ships in 3-10 days

0

27

Dixon 522854502

STRAP, SUPPORT, LT BLK

Note: LT

$398.99

$

Usually ships in 3-10 days

0

28

Dixon 522854602

MOUNT, 2 BIN COLLECT, BLK

$

$

Not available

29

Dixon 522854702

BRACKET, COLLECTION BLK

$121.99

$

Usually ships in 3-10 days

0

30

Dixon 523112802

REINFORCEMENT PLATE BLK

$96.99

$

Usually ships in 3-10 days

0

31

539408271

No Description Available

$

$

Not available

32

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

33

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

Dixon 965610901

No Description Available

Note: NOT SHOWN

$6.99

$

Usually ships in 3-10 days

0
