964934030 - Husqvarna Walk-Behind Reel Mower (2000-08) PRODUCT COMPLETE Parts Diagram

Walk-Behind Reel Mower

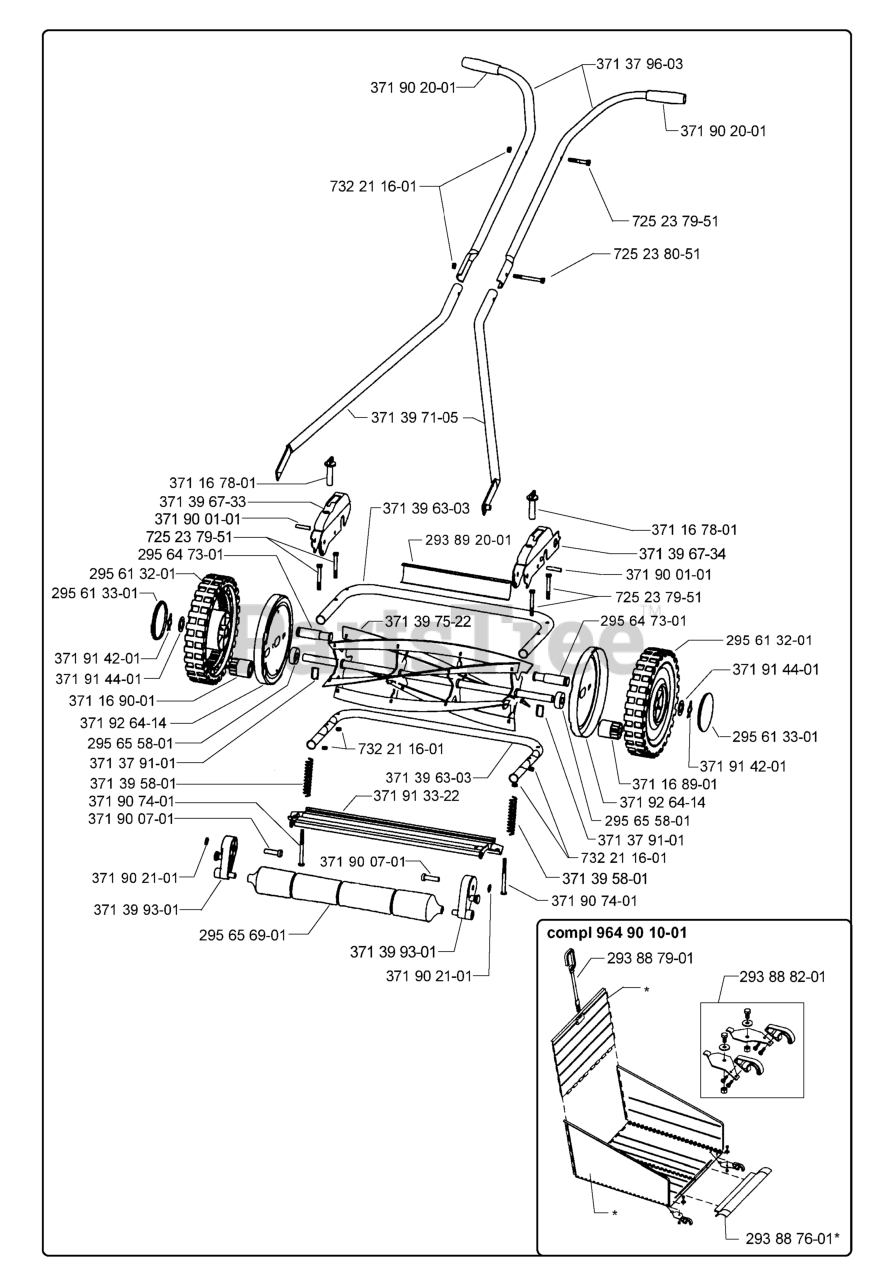

PRODUCT COMPLETE Parts Diagram

  • Title

371 16 78-01

Husqvarna 371167801

KNOB

$5.99

$

Usually ships in 3-10 days

0

371 90 01-01

Husqvarna 371900101

P/N NOT AVAILABLE

$

$

Not available

371 37 91-01

Husqvarna 371379101

PAWL

$14.99

$

Usually ships in 3-10 days

0

371 39 58-01

Husqvarna 371395801

SPRING

$

$

Not available

295 65 58-01

Husqvarna 295655801

BEARING

$20.99

$

Usually ships in 3-10 days

0

371 90 20-01

Husqvarna 371902001

HANDLE
(Superseded to 295700001)

$11.99

$

Usually ships in 3-10 days

0

371 91 42-01

Husqvarna 371914201

SPRING

$17.99

$

Usually ships in 3-10 days

0

295 61 33-01

Husqvarna 295613301

HUBCAP
(Superseded to 295613305)

$

$

Not available

371 16 89-01

Husqvarna 371168901

REPL BY 371 91 47-01
(Superseded to 371914701)

$

$

Not available

295 65 69-01

Husqvarna 295656901

ROLLER

$34.99

$

Usually ships in 3-10 days

0

371 90 21-01

Husqvarna 371902101

LOCKING WASHER

$22.99

$

Usually ships in 3-10 days

0

371 39 63-03

Husqvarna 371396303

FRAME

$

$

Not available

725 23 79-51

Husqvarna 725237951

SCREW

$7.99

$

In Stock, only 1 left!

0

371 16 90-01

Husqvarna 371169001

PINION L
(Superseded to 371914701)

$

$

Not available

295 64 73-01

Husqvarna 295647301

SHAFT

$

$

Not available

293 89 20-01

Husqvarna 293892001

NEEDS DESCRIPTION

$

$

Currently unavailable

295 61 32-01

Husqvarna 295613201

WHEEL
(Superseded to 295696301)

$26.99

$

Usually ships in 3-10 days

0

371 90 74-01

Husqvarna 371907401

SCREW

$13.99

$

Usually ships in 3-10 days

0

732 21 16-01

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, only 4 left!

0

371 91 33-22

Husqvarna 371913322

BLADE

$74.99

$

Usually ships in 3-10 days

0

371 90 07-01

Husqvarna 371900701

BOLT

$

$

Not available

371 91 44-01

Husqvarna 371914401

WASHER

$

$

Not available

371 39 75-22

Husqvarna 371397522

CUTTING REEL

$

$

Not available

725 23 80-51

Husqvarna 725238051

SCREW M6X50

$3.49

$

In Stock, only 2 left!

0

371 39 67-34

Husqvarna 371396734

BRACKET

$

$

Not available

371 39 67-33

Husqvarna 371396733

BRACKET

$

$

Not available

371 37 96-03

Husqvarna 371379603

HANDLE

$26.99

$

Usually ships in 3-10 days

0

371 39 93-01

Husqvarna 371399301

ROLLER HOLDER

$68.99

$

Usually ships in 3-10 days

0

371 92 64-14

Husqvarna 371926414

PROTECTOR

$

$

Not available

371 39 71-05

Husqvarna 371397105

HANDLE

$

$

Not available
