9617-1 - Generac CP 6,600 PSI Pressure Washer Pressure Washer & Cradle No. 90753 Parts Diagram

CP 6,600 PSI Pressure Washer

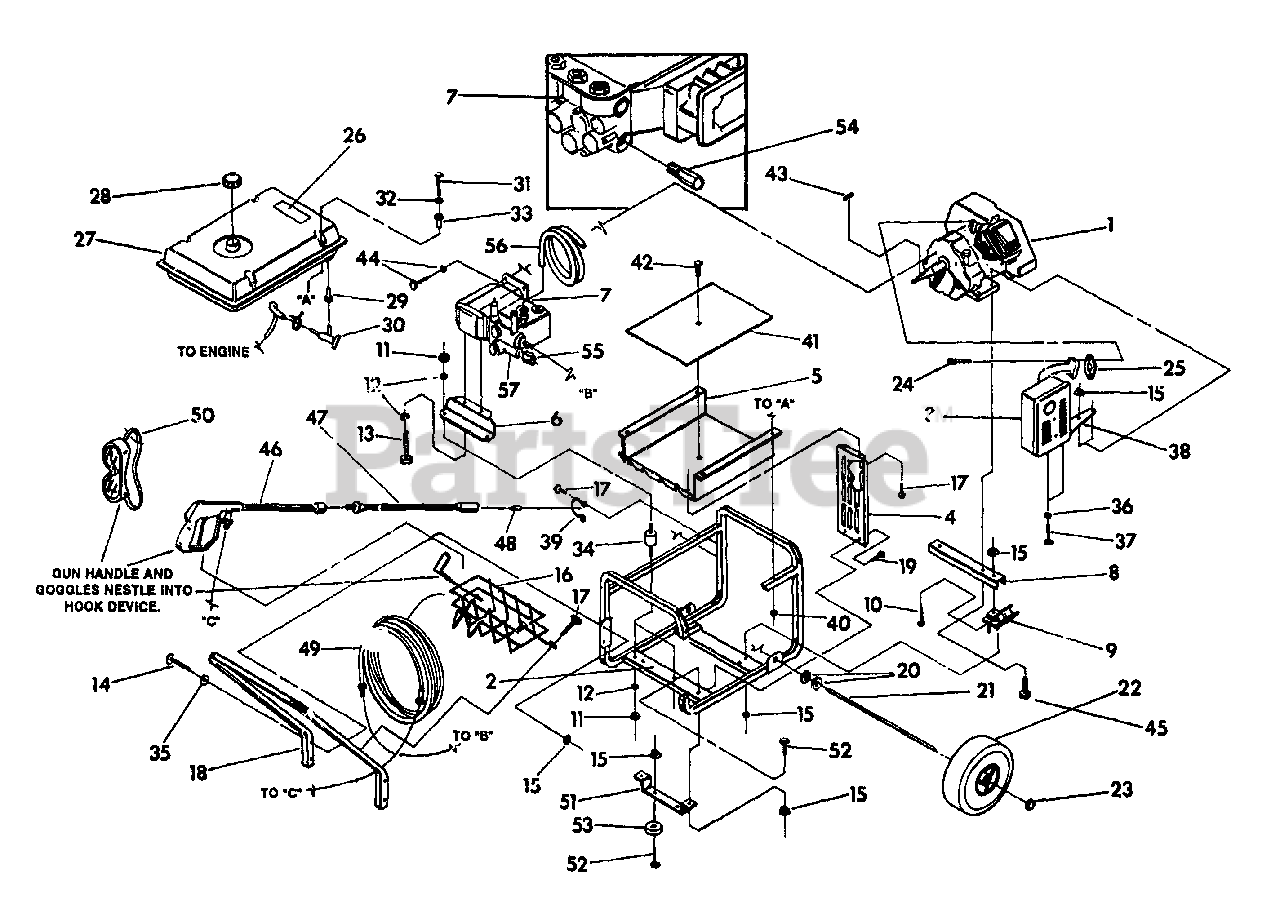

Pressure Washer & Cradle No. 90753 Parts Diagram

  • Title

1

Briggs & Stratton 91169

GN-190 Engine, 3/4" dia. Straight Shaft
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 88256

Cradle - 6600CP

$

$

Currently unavailable

3

Briggs & Stratton 83071

Muffler
(Superseded to 83071GS)

$

$

Not available

4

Briggs & Stratton 87843

Muffler Heat Shield
(Superseded to 87843GS)

$26.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 87840

Tank Heat Shield
(Superseded to 87840GS)

$47.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 87839

Pump Mounting Bracket

$

$

Not available

7

Briggs & Stratton 87628

XTV 2200 Series Pump

$

$

Not available

8

Briggs & Stratton 84021

Engine Support
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 84508

45-degree Vibration Mount
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 70644

M8-1.25 x 20mm Phillips Pan Head Machine Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

12

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 42907

M8-1.25 x 16mm Hex Head Capscrew
(Superseded to 42907GS)

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 39287

M8-1.25 x 45mm Hex Head Capscrew
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 87836

Wire Basket

$

$

Not available

17

Briggs & Stratton 86292

No. 10-16 Self-drill Hex Head Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 87835

Guide Handle
(Superseded to 87835GS)

$79.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 24911

No. 8-3/4" Taptite Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 89337

Axle Assembly

$

$

Currently unavailable

22

Briggs & Stratton 87280

Wheel Assembly
(Superseded to 197061GS)

$24.99

$

In Stock, Qty 11

0

23

Briggs & Stratton 75402

Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

24

Briggs & Stratton 40976

M8-1.25 x 20mm Socket Head Capscrew

$

$

Not available

25

Briggs & Stratton 80314

Exhaust Gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 87838

Start Instructions Decal

$

$

Currently unavailable

27

Briggs & Stratton 83311

Fuel Tank

$

$

Currently unavailable

28

Briggs & Stratton 84582

Fuel Cap

$

$

Currently unavailable

29

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

30

Briggs & Stratton 80270

Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

31

Briggs & Stratton 78831A

M6-1.0 x 60mm Hex Head Capscrew (black)

$

$

Currently unavailable

32

Briggs & Stratton 78830

Special Black Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 83465

Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

34

Briggs & Stratton 66443B

Shock Mount
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 50190

M8 x 25mm Flat Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 43116

M6-1.0 x 12mm Hex Head Capscrew
(Superseded to 43116GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 83208

Muffler Bracket
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 87985

Rear Gun Holder
(Superseded to 87985GS)

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 84687

1/4" thick #2 Insulation
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 85000

Insulation Clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 89241

3/16" x 1/4" x 1-3/4" Key
(Superseded to 89241GS)

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 86307

5/16"-24 x 3/4" Hex Head Capscrew with lock washer
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

45

Briggs & Stratton 84346

M8 x 35 Phillips Pan Head Machine Screw
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 91628

12" Wand and Handle

$

$

Not available

47

Briggs & Stratton 91031

18" Wand Extension (blue)

$

$

Not available

48

Briggs & Stratton 88054

Nozzle Fitting

$

$

Currently unavailable

49

Briggs & Stratton 91630

3/8" I.D. Hose Assembly

$

$

Not available

50

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 87842

Unit Support Bracket
(Superseded to 87842GS)

$55.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 39253

M8-1.25 x 20mm Hex Head Capscrew
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

53

Briggs & Stratton 87841

Shock Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton 89215

Thermal Relief Valve

$

$

Not available

55

Briggs & Stratton 89647

Brass Garden Hose Connector

$

$

Not available

56

Briggs & Stratton 89800

Injector Tube and Filter Assembly
(Superseded to 89800GS)

$15.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 89646

Aluminum Garden Hose Neck
(Superseded to 89646GS)

$76.99

$

In Stock, only 1 left!

0
