961490002-01 - Poulan Walk-Behind Mower (2013-11) DRIVE Parts Diagram

Walk-Behind Mower

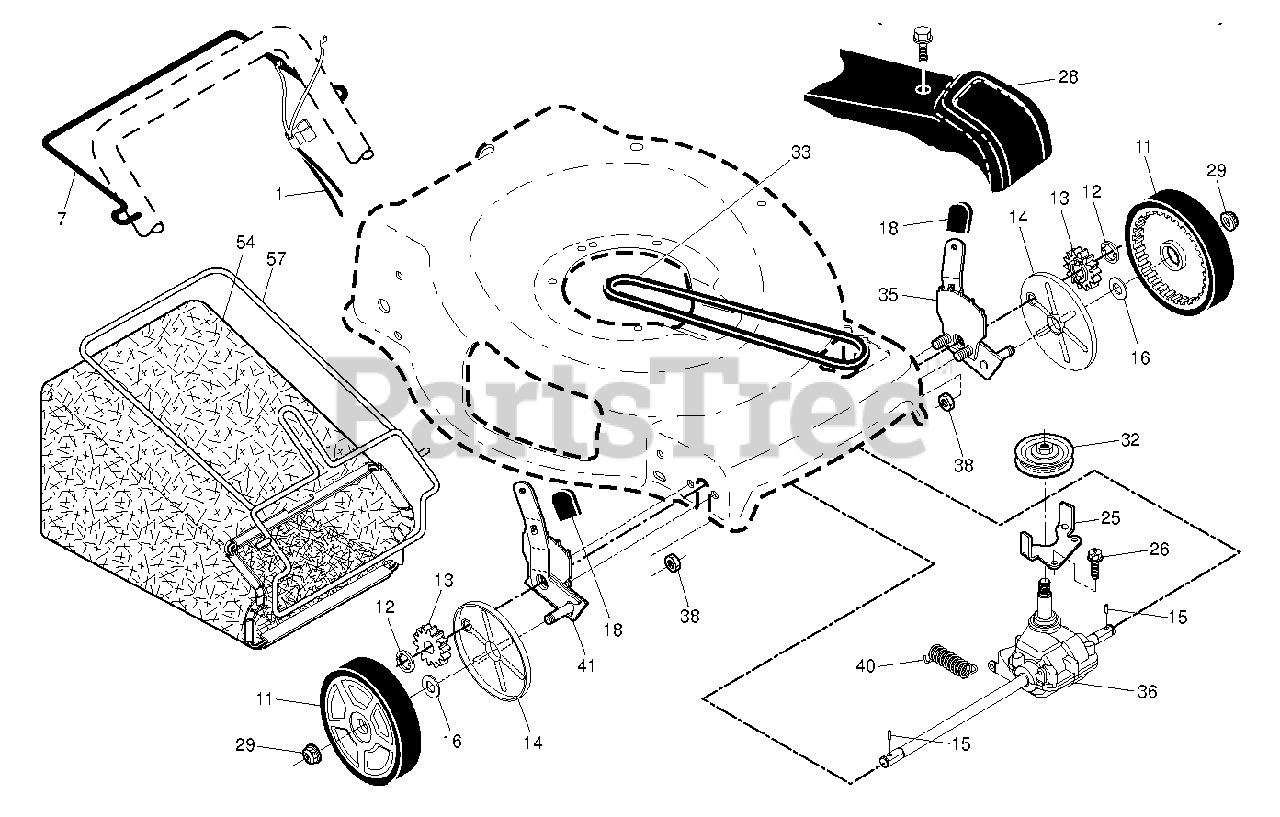

DRIVE Parts Diagram

  • Title

1

Poulan 532424919

CABLE.DRIVE.S/S.22+.FWGD
(Superseded to 588479201)

$26.99

$

In Stock, only 1 left!

0

7

Poulan 532435281

BAIL.DRIVE.S/S.ROUND.MARI.21

$12.99

$

In Stock, only 1 left!

0

11

Poulan 581009201

WHEEL.8X1.75.5SPK.RAD3.BLACK
(Superseded to 532430452)

Note: FRONT

$34.99

$

In Stock, only 2 left!

0

12

Poulan 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Poulan 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, only 3 left!

0

15

Poulan 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

16

Poulan 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

18

Poulan 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

25

Poulan 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP
(Superseded to 532430458)

$

$

Not available

26

Poulan 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

28

Poulan 532432674

COVER.DR.ASM.421086.CE

$15.99

$

Usually ships in 3-10 days

0

29

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532443262

PULLEY.DRIVE.EZ/VARI.SCREWON

$13.99

$

In Stock, only 1 left!

0

33

Poulan 532196853

BELT.DRIVE.FGD.

$20.99

$

Usually ships in 3-10 days

0

35

Poulan 581497904

ADJUSTER.ASM.9.22+/RF/LR.21/RF
(Superseded to 581497907)

Note: LH. 17 18

$

$

Not available

36

Poulan 532424741

TRANSMISSION.22+.FWGD.SS
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

38

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

40

Poulan 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

41

Poulan 581497903

ADJUSTER.ASM.9.22+/RF/LR.21/LF
(Superseded to 581497908)

Note: RH. 17 18

$22.99

$

In Stock, Qty 8

0

54

Poulan 580947309

GBAG.A1640416S.BLK.PPRO.MRG.
(Superseded to 580947302)

$

$

Not available

57

Poulan 532419951

FRAME.GBAG.22PLUS
(Superseded to 585054702)

$34.99

$

In Stock, Qty 6

0
