961480050-00 - Poulan Walk-Behind Mower (2014-01) FRAME Parts Diagram

Walk-Behind Mower

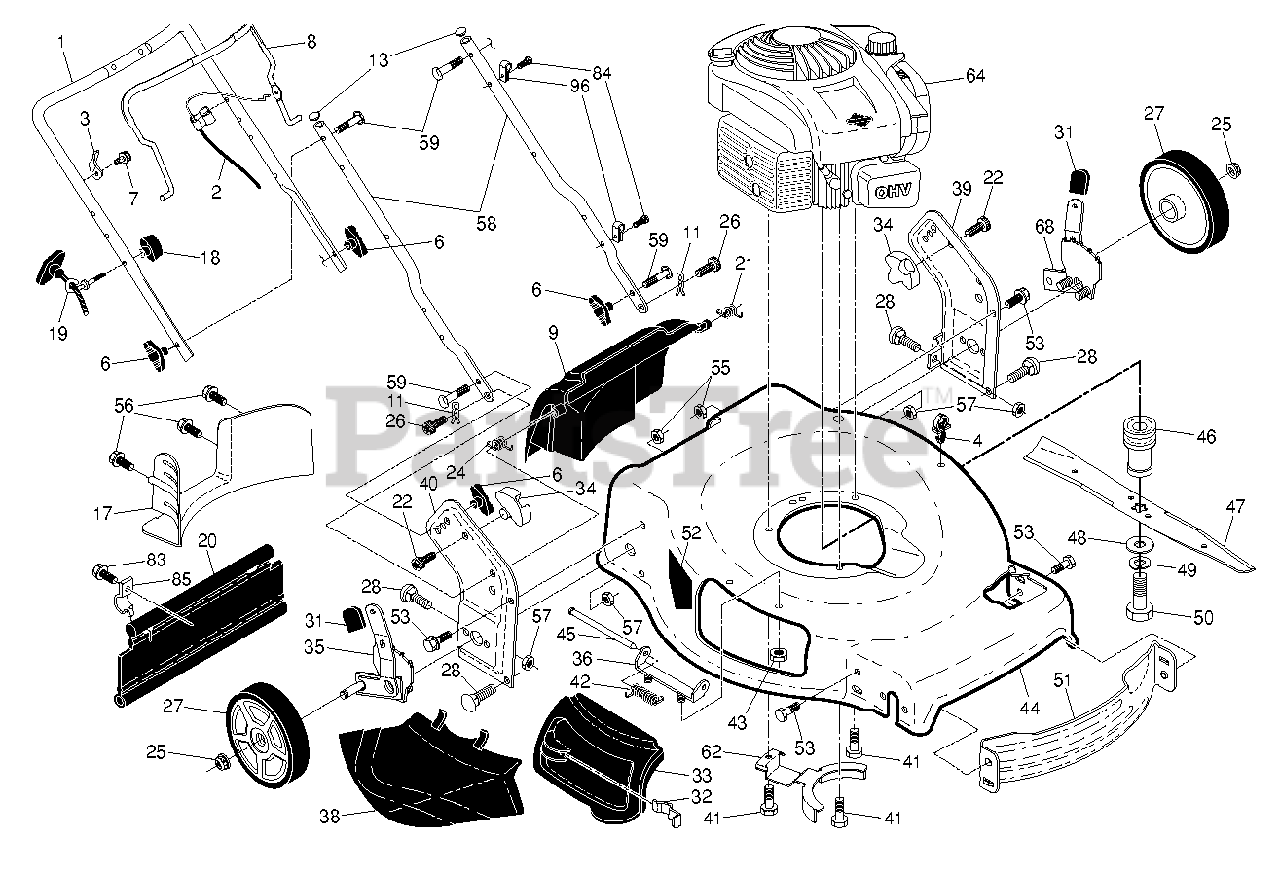

FRAME Parts Diagram

  • Title

1

Poulan 532427904

HANDLE.UP.DSTR.EZ.FG/RGD.CREAS

$30.99

$

Usually ships in 3-10 days

0

2

Poulan 532408047

CONTROL.ZONE.ASM

$17.99

$

In Stock, only 2 left!

0

3

Poulan 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

4

Poulan 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

7

Poulan 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

8

Poulan 583880901

BAIL.MZR.EZ2.DSTRT.22+.421
(Superseded to 532427611)

$

$

Not available

9

Poulan 532421084

DOOR.REAR.22PLUS.MB.FGD.SAFETY

$27.99

$

Usually ships in 3-10 days

0

11

Poulan 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

13

Poulan 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532427307

BAFFLE.22PLUS.FGD.REAR.

$15.99

$

Usually ships in 3-10 days

0

18

Poulan 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

19

Poulan 581902101

Rope Guide, Blk Zinc Chrom

$

$

Not available

20

Poulan 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$17.99

$

In Stock, only 1 left!

0

21

Poulan 532419949

SPRING.LH.GRAY

$6.49

$

In Stock, Qty 10

0

22

Poulan 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Poulan 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, Qty 5

0

25

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

26

Poulan 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

27

Poulan 581009408

WHEEL.8X1.75.CF5SPK.RAD3.BLACK
(Superseded to 532435691)

$24.99

$

In Stock, only 2 left!

0

28

Poulan 872250505

(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

32

Poulan 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Poulan 532432642

DOOR.MULCH.22.BLACK.MULTI-BRAN

$10.99

$

In Stock, Qty 13

0

34

Poulan 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 532431139

ADJUSTER.ASM.9POS.LW.RR/RGD.

Note: REAR RIGHT

$

$

Not available

36

Poulan 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

38

Poulan 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 9

0

39

Poulan 585900702

Handle Bracket Assembly, LH 22+ Black

Note: LH

$

$

Not available

40

Poulan 585900802

Handle Bracket Assembly, RH 22+ Black

Note: RH

$27.99

$

In Stock, only 1 left!

0

41

Poulan 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 532193000

SPRING.TORSION

$7.49

$

In Stock, only 4 left!

0

43

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

44

Poulan 581708308

$

$

Currently unavailable

45

Poulan 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 11

0

46

Poulan 581352401

ADAPTOR.BLADE.7/8".STAR

$34.99

$

In Stock, only 1 left!

0

47

Poulan 532420463

BLADE.22PLUS

$22.99

$

In Stock, only 2 left!

0

48

Poulan 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

49

Poulan 532850263

(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Poulan 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Poulan 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

52

Poulan 532404763

No Step Decal
(Superseded to 532182166)

$4.99

$

In Stock, only 3 left!

0

53

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

55

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

56

Poulan 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Poulan 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 532441196

HANDLE.LOWER.22+BT.2PC.BLK

$

$

Not available

59

Poulan 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

62

Poulan 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

64

Poulan 000000000

Note: B S 93J02-0002-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

68

Poulan 532431141

ADJUSTER.ASM.9POS.HW.R/L

Note: REAR LEFT

$34.99

$

Usually ships in 3-10 days

0

83

Poulan 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

84

Poulan 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

85

Poulan 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 13

0

96

Poulan 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0
