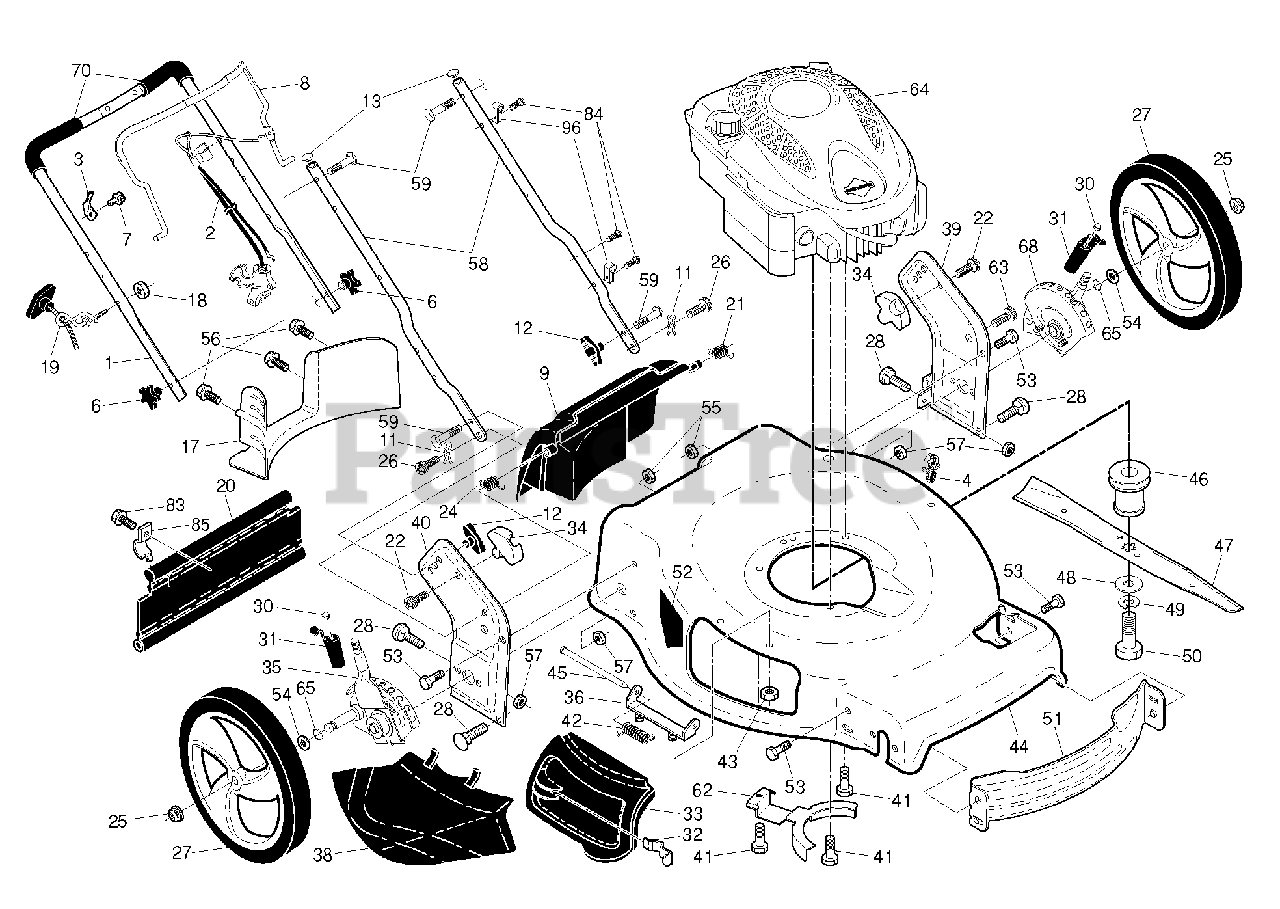

961480030-00 - Jonsered Walk-Behind Mower (2011-12) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title

1

Jonsered 532184576

No Description Available
(Superseded to 583134501)

Note: Includes foam grip. 70

$51.99

$

Usually ships in 3-10 days

0

2

Jonsered 532429639

No Description Available

$

$

Not available

3

Jonsered 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

4

Jonsered 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

7

Jonsered 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

8

Jonsered 532426505

No Description Available

$46.99

$

Usually ships in 3-10 days

0

9

Jonsered 532421084

No Description Available

$27.99

$

Usually ships in 3-10 days

0

11

Jonsered 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

12

Jonsered 532445019

KNOB.WING.PLASTIC.BLACK
(Superseded to 532185577)

$9.49

$

In Stock, Qty 18

0

17

Jonsered 532427307

No Description Available

$15.99

$

Usually ships in 3-10 days

0

18

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Jonsered 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$17.99

$

In Stock, only 2 left!

0

21

Jonsered 532419949

SPRING.LH.GRAY

$6.49

$

In Stock, Qty 8

0

22

Jonsered 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Jonsered 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, only 3 left!

0

25

Jonsered 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

26

Jonsered 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

27

Jonsered 532433121

No Description Available

$43.99

$

In Stock, only 1 left!

0

28

Jonsered 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 532413808

No Description Available
(Superseded to 583343001)

$6.49

$

In Stock, Qty 20+

0

31

Jonsered 532431893

No Description Available

$

$

Not available

32

Jonsered 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Jonsered 532432642

No Description Available

$10.99

$

In Stock, Qty 13

0

34

Jonsered 532426125

No Description Available

$6.49

$

Usually ships in 3-10 days

0

35

Jonsered 532431131

No Description Available
(Superseded to 583466101)

Note: Includes Knob and Pushnut. 30 31

$54.99

$

Usually ships in 3-10 days

0

36

Jonsered 532175735

HINGE BRACKET ASSEMBLY

$

$

Not available

38

Jonsered 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 8

0

39

Jonsered 532442530

No Description Available
(Superseded to 581353703)

Note: LH

$22.99

$

Usually ships in 3-10 days

0

40

Jonsered 532440527

No Description Available

Note: RH

$

$

Not available

41

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Jonsered 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

43

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

44

Jonsered 532438936

No Description Available

$

$

Not available

45

Jonsered 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

46

Jonsered 532421782

ADPTER.BLAD.25M.VS.22PLU.STAR
(Superseded to 581473301)

$17.99

$

In Stock, Qty 13

0

47

Jonsered 532420463

BLADE.22PLUS

$22.99

$

In Stock, only 2 left!

0

48

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

49

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Jonsered 532430599

No Description Available

$

$

Not available

52

Jonsered 532404763

DANGER DECAL
(Superseded to 532182166)

$4.99

$

In Stock, only 3 left!

0

53

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

54

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

55

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

56

Jonsered 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Jonsered 532441196

No Description Available

$

$

Not available

59

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

62

Jonsered 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

63

Jonsered 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

64

Jonsered 000000000

No Description Available

Note: B S 128M02-0123-F1 FOR SERICE PARTS 1-800-233-3723. 52

$

$

Not available

65

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

68

Jonsered 532431134

No Description Available
(Superseded to 583466301)

Note: Includes Knob and Pushnut. 30 31

$54.99

$

Usually ships in 3-10 days

0

70

Jonsered 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

84

Jonsered 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

96

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

13

Jonsered 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

83

Jonsered 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

84

Jonsered 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0

85

Jonsered 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0
