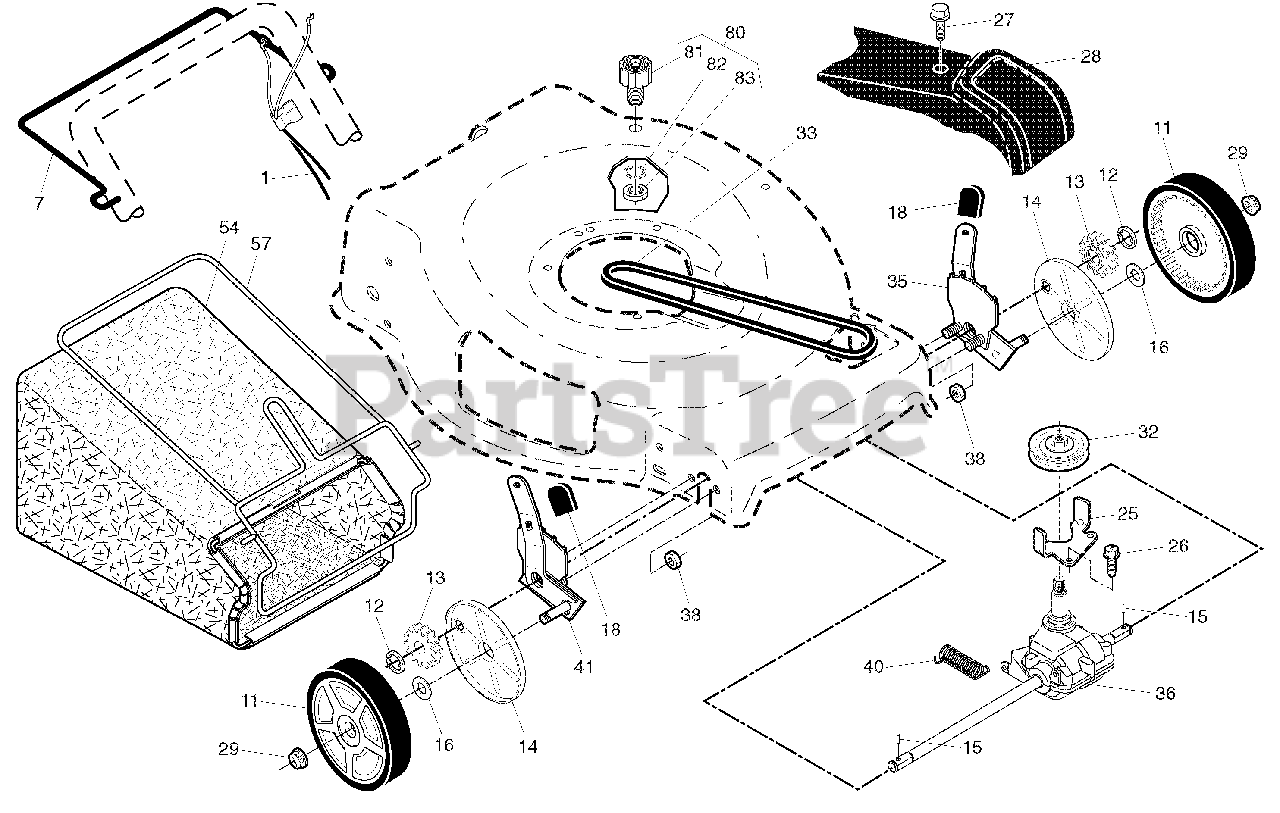

961469 (961420114-01) - Ariens 22" Self-Propelled Walk-Behind Mower, Honda Main Assembly Parts Diagram

22" Self-Propelled Walk-Behind Mower, Honda

Main Assembly Parts Diagram

  • Title
1

Ariens 21548428

DRIVE CONTROL ASSY (W/CABLE)

Note: (Includes Cable)

$43.99

$

Usually ships in 4-12 days

0

7

Ariens 21547513

Control Bar, Drive

$

$

Not available

11

Ariens 21548402

WHEEL & TIRE ASSEMBLY

$51.99

$

In Stock, Qty 6

0

12

$3.99

$

Usually ships in 4-12 days

0

13

$10.99

$

In Stock, only 3 left!

0

14

Ariens 21548456

DUST COVER

$

$

Not available

15

Ariens 21547485

Pawl, Drive

$6.49

$

In Stock, only 1 left!

0

16

Ariens 21547471

Washer, Flat 3/8

$

$

Not available

18

Ariens 21547504

Selector Knob

$

$

Not available

25

Ariens 21548466

BELT KEEPER

$

$

Not available

26

Ariens 21548414

SCREW, HI-LO THREAD #12 X 5/8

$

$

Not available

27

Ariens 21547478

Pan Head Tapping Screw #10-24

$10.99

$

In Stock, only 2 left!

0

28

Ariens 21548423

DRIVE COVER

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$

$

Not available

32

Ariens 21548443

DRIVE PULLEY

$19.99

$

Usually ships in 4-12 days

0

33

$24.99

$

Usually ships in 4-12 days

0

35

Ariens 21548404

KIT WHEEL ADJUSTOR FRONT LH

Note: (Includes Bearing)

$

$

Not available

36

Ariens 21548434

GEARCASE ASSEMBLY, COMPLETE
(Superseded to 21549050)

$

$

Not available

38

Ariens 21548415

LOCKNUT, HEX 1/4-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

40

$

$

Not available

41

Ariens 21548496

WHEEL ADJUSTER, FRONT RH W/BRG

Note: (Includes Bearing)

$32.99

$

Usually ships in 4-12 days

0

54

Ariens 21548448

GRASSBAG

$

$

Not available

57

Ariens 21548845

FRAME, GRASSBAG

$25.99

$

In Stock, only 1 left!

0

80

Ariens 21548431

KIT, WATER WASHOUT ASSEMBLY

Note: (Includes Key Numbers 81 thru 83)

$

$

Not available

81

Ariens 21548422

FITTING, WATER WASHOUT
(Superseded to 21548431)

$

$

Not available

82

Ariens 21548420

WASHER, LOCK, INTERNAL TOOTH

$

$

Not available

83

Ariens 21548421

LOCKNUT, HEX, WITH O-RING

$

$

Not available
