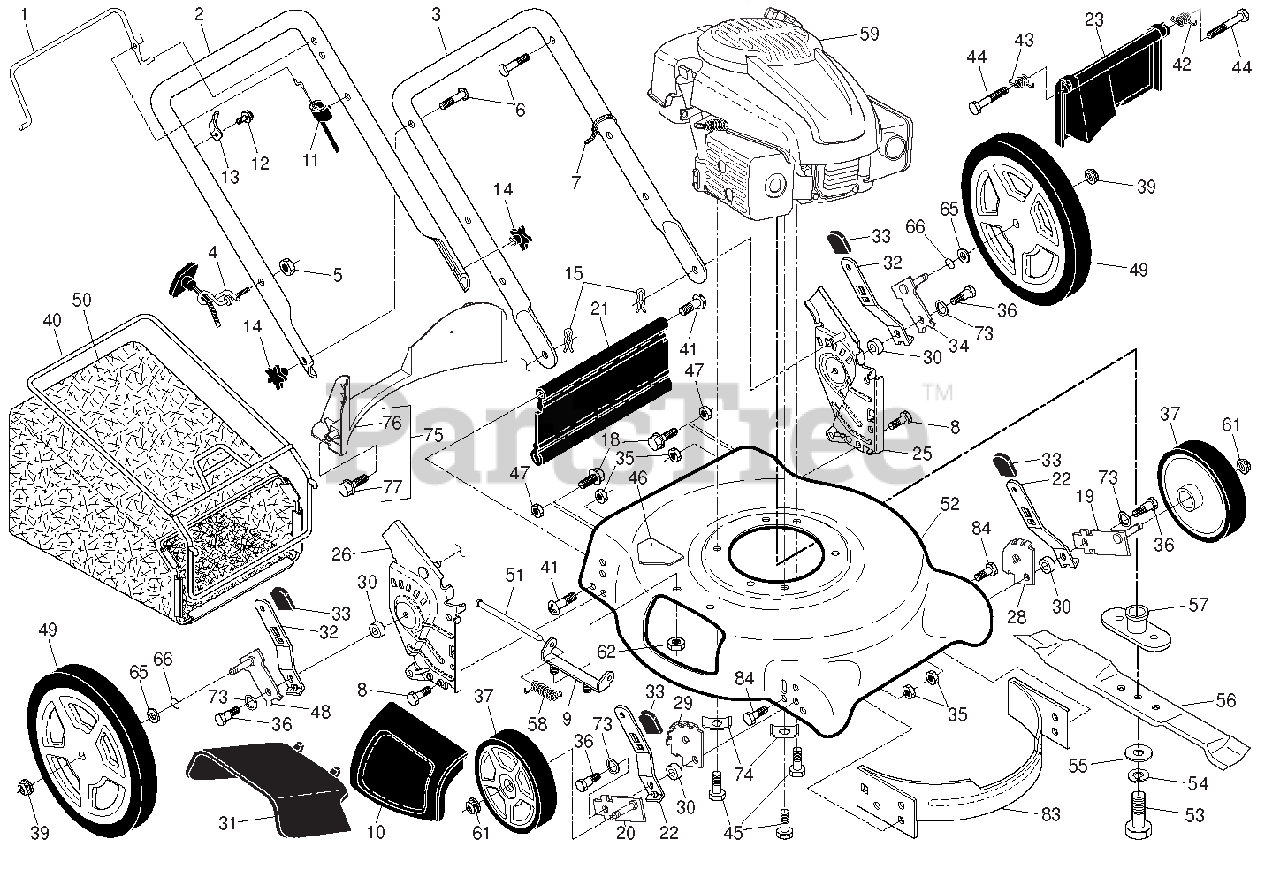

961363 (961360011-05) - Ariens 21" Push Walk-Behind Mower, 3.8hp Kohler Repair Parts Parts Diagram

21" Push Walk-Behind Mower, 3.8hp Kohler

Repair Parts Parts Diagram

  • Title

1

Ariens 21548540

CONTROL BAR

$

$

Not available

2

Ariens 21548543

UPPER HANDLE

$

$

Not available

3

Ariens 21548033

LOWER HANDLE

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 21546884

Rope Guide

$15.99

$

Usually ships in 4-12 days

0

5

Ariens 21546872

Nut, Hex
(Superseded to 21546914)

$

$

Not available

6

Ariens 21546883

Handle Bolt

$6.99

$

In Stock, only 4 left!

0

7

Ariens 21546869

Wire Tie

$

$

Not available

8

Ariens 21546915

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 21546876

Hinge Bracket

$

$

Not available

10

Ariens 21546877

Mulcher Door

$11.99

$

In Stock, only 1 left!

0

11

Ariens 21548538

ENGINE ZONE CONTROL CABLE

$

$

Not available

12

Ariens 21548023

SCREW, HEX WASHER HEAD

$

$

Not available

13

Ariens 21547461

UP-STOP BRACKET

$

$

Not available

14

Ariens 21546880

Handle Knob

$

$

Not available

15

Ariens 21546868

Hairpin Cotter

$

$

Not available

18

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$6.49

$

In Stock, only 2 left!

0

19

Ariens 21546987

Axle Arm Assembly, Front, LH

$

$

Not available

20

Ariens 21546988

Axle Arm Assembly, Front, RH

$6.99

$

In Stock, only 4 left!

0

21

Ariens 21546901

Kit, Rear Skirt

$13.99

$

In Stock, Qty 5

0

22

Ariens 21546991

Selector Spring, Front

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 21546993

Rear Door Assembly

$

$

Not available

25

Ariens 21548541

HANDLE BRACKET ASSEMBLY, LH

$

$

Not available

26

Ariens 21548542

HANDLE BRACKET ASSEMBLY, RH

$

$

Not available

28

Ariens 21546994

Wheel Adjusting Bracket, LH

$

$

Not available

29

Ariens 21546995

Wheel Adjusting Bracket, RH

$

$

Not available

30

Ariens 21546888

Spacer

$6.49

$

In Stock, only 4 left!

0

31

Ariens 21546878

Discharge Deflector

$

$

Not available

32

Ariens 21546992

Selector Spring, Rear

$

$

Not available

33

Ariens 21547504

Selector Knob

$

$

Not available

34

Ariens 21546989

Axle Arm Assembly, Rear, LH

$10.99

$

Usually ships in 4-12 days

0

35

Ariens 21547489

Locknut, Hex 5/16-18
(Superseded to 21546879)

$

$

Not available

36

Ariens 21546890

Shoulder Bolt

$4.99

$

Usually ships in 4-12 days

0

37

Ariens 21546984

Wheel & Tire Assembly, Front

$

$

Not available

39

Ariens 21546897

Flanged Locknut, Hex

$

$

Not available

40

Ariens 21546899

Frame, Grassbag

$44.99

$

Usually ships in 4-12 days

0

41

Ariens 21548416

HINGE SCREW

$

$

Not available

42

Ariens 21546893

Spring, Rear Door, LH

$8.99

$

Usually ships in 4-12 days

0

43

Ariens 21546894

Spring, Rear Door, RH

$

$

Not available

44

Ariens 21546882

Bolt, Rear Door

$

$

Not available

45

Ariens 21546874

Screw, Hex Head, Threaded, Rol

$6.99

$

Usually ships in 4-12 days

0

46

Ariens 21546891

Danger Decal

$

$

Not available

47

Ariens 21546908

Nut, Hex

$

$

Not available

48

Ariens 21546990

Axle Arm Assembly, Rear, RH

$6.49

$

Usually ships in 4-12 days

0

49

Ariens 21547512

Wheel & Tire Assembly, Rear

$

$

Not available

50

Ariens 21546904

Grassbag

$122.99

$

Usually ships in 4-12 days

0

51

Ariens 21546873

Hinge Rod

$8.99

$

Usually ships in 4-12 days

0

52

Ariens 21548477

KIT, LAWN MOWER HOUSING

$

$

Not available

53

Ariens 21546911

Screw, Hex Head, Grade 8 3/8-2

$7.99

$

Usually ships in 4-12 days

0

54

Ariens 21546909

Helical Lockwasher
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 21546910

Hardened Washer

$

$

Not available

56

Ariens 21546895

21" Blade

$34.99

$

Usually ships in 4-12 days

0

57

Ariens 21547853

BLADE ADAPTER

$11.99

$

In Stock, Qty 20+

0

58

Ariens 21546875

Hinge Spring

$7.49

$

In Stock, only 4 left!

0

59

Engine, Kohler, Model Number XT675-2015 (For engine service and replacement parts, call Kohler at 1-800-544-2444)

Note: (For engine service and replacement parts, call Kohler at 1-800-544-2444)

$

$

Not available

61

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$

$

Not available

62

Ariens 21546914

Locknut, Hex 1/4-20

$

$

Not available

65

Ariens 21546870

Washer, Flat

$

$

Not available

66

Ariens 21546886

O-Ring

$6.99

$

Usually ships in 4-12 days

0

73

Ariens 21546889

Washer, Curved, Cylindrical

$4.99

$

In Stock, only 3 left!

0

74

Ariens 21546998

Washer, Special, Engine

$

$

Not available

75

Ariens 21546900

Kit, Rear Baffle (Includes 3 S

$

$

Not available

76

Ariens 21546898

Baffle, Rear

$12.99

$

Usually ships in 4-12 days

0

77

Ariens 21546912

Screw, Rear Baffle

$

$

Not available

83

Ariens 21548024

BAFFLE, FRONT

$

$

Not available

84

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$7.49

$

In Stock, Qty 12

0

- -

Ariens 21546892

Warning Decal (not shown)

Note: (not shown)

$

$

Not available

- -

Ariens 21548535

OWNER'S MANUAL ENGLISH/SPANISH

$

$

Not available

- -

Ariens 21548536

OWNER'S MANUAL FRENCH

$

$

Not available
