961240002-01 - Weed Eater Walk-Behind Mower (2009-04) Frame Parts Diagram

Walk-Behind Mower

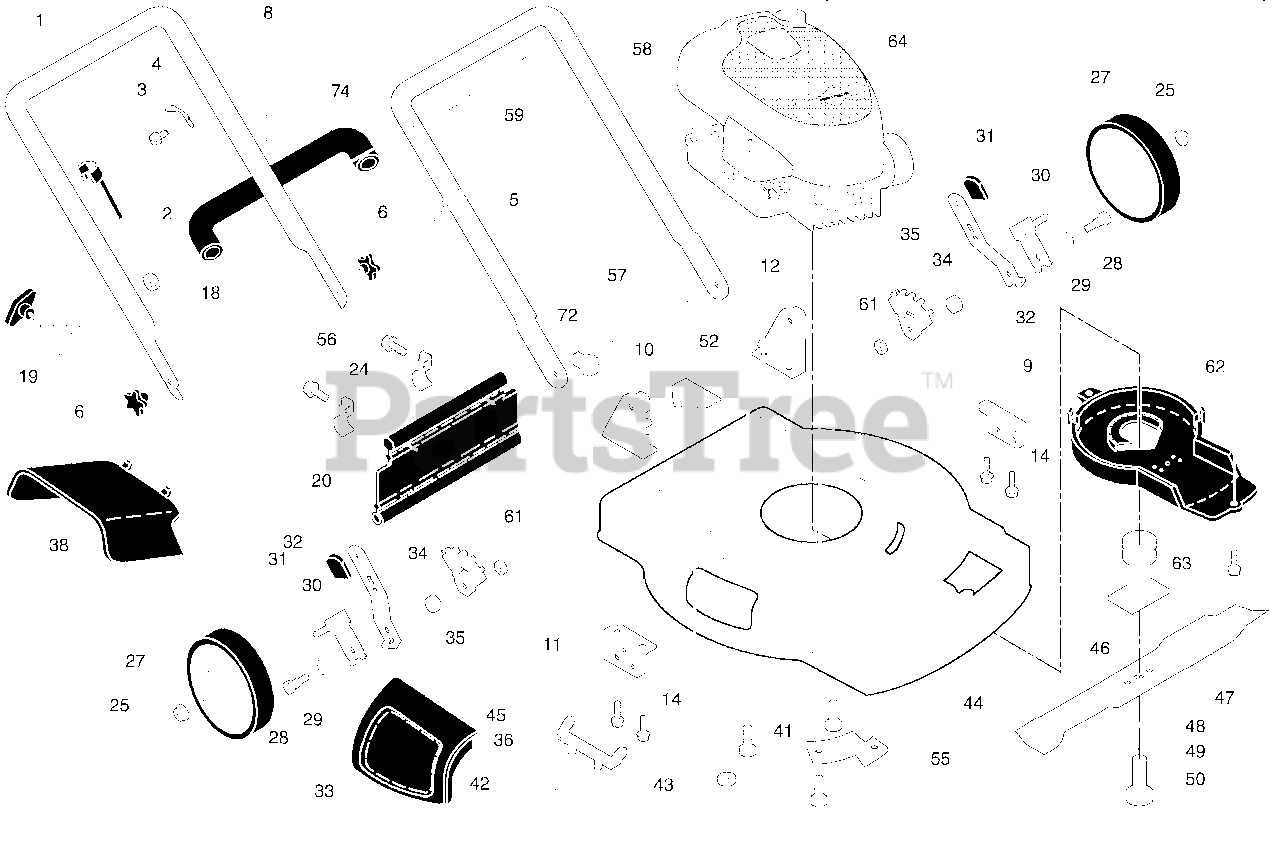

Frame Parts Diagram

  • Title

1

Electrolux/AYP 427661

Upper Handle Assembly

Note: (Includes Foam Grip)

$23.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 175148

Engine Zone Control Cable
(Superseded to 583067401)

$26.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

4

Electrolux/AYP 850733X004

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 182398

Handle Knob
(Superseded to 532182398)

$7.49

$

In Stock, only 4 left!

0

8

Electrolux/AYP 427414X421

Control Bar
(Superseded to 532435275)

$

$

Not available

9

Electrolux/AYP 153282X479

Support Bracket, Handle, LH
(Superseded to 583681001)

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 170345X479

Handle Bracket, RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 153350X479

Support Bracket, Handle, RH
(Superseded to 583681101)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 170346X479

Handle Bracket, LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

14

Electrolux/AYP 149741

Screw, Thread Cutting 5/16-18 x 3/4
(Superseded to 532149741)

$7.49

$

In Stock, Qty 5

0

18

Electrolux/AYP 132004

Locknut, Keps

$

$

Not available

19

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 413160

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 192301X004

Clamp, Rear Skirt
(Superseded to 532192301)

$

$

Not available

25

Electrolux/AYP 409148

Locknut, Hex 3/18-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 193909X421

Wheel & Tire Assembly
(Superseded to 532412173)

$15.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 174719

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 401630

Washer, Curved, Cylindrical
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

30

Electrolux/AYP 401179X004

Axle Arm Assembly
(Superseded to 532401179)

$7.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 701037X421

Knob, Selector
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 401624X004

Spring, Selector
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 151889

Mulcher Door
(Superseded to 582979401)

$17.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

35

Electrolux/AYP 407501X005

Bracket, Wheel Adjuster
(Superseded to 532410807)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 154132

Bracket, Housing
(Superseded to 532154132)

$6.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 176509

Deflector, Discharge
(Superseded to 532441926)

$

$

Not available

41

Electrolux/AYP 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 152124

Spring, Torsion
(Superseded to 532152124)

$7.49

$

In Stock, only 3 left!

0

43

Electrolux/AYP 73800400

Locknut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 412210

Kit, Lawn Mower Housing
(Superseded to 583336201)

Note: (Includes Key Number 46)

$157.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 147286

Rod, Hinge
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

46

Electrolux/AYP 195963

Blade Adapter / Pulley
(Superseded to 532195963)

$

$

Not available

47

Electrolux/AYP 406713

Blade, 22"
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

48

Electrolux/AYP 851074

Washer, Hardened
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

49

Electrolux/AYP 850263

Washer, Lock, Helical
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 851084

Screw, Hex Head, Grade 8 3/8-24 x 1-3/8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 404763

Decal, Danger

$2.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 188839X004

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 750097

Screw, Hex Washer Head #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

57

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 151590X479

Lower Handle
(Superseded to 532151590)

$22.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

61

Electrolux/AYP 73930600

Locknut, Hex
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 405843

Debris Shield
(Superseded to 585472601)

$31.99

$

In Stock, only 3 left!

0

63

Electrolux/AYP 192325

Screw
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

64

Engine, Briggs & Stratton, Model Number 10T802-1098-EA

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

72

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

74

Electrolux/AYP 186362

Grip, Foam
(Superseded to 532186362)

$12.99

$

In Stock, only 3 left!

0

74

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 193733

Operator's Manual, English
(Superseded to 917193733)

$

$

Not available

74

Electrolux/AYP 193736

Operator's Manual, French

$

$

Not available

Electrolux/AYP 427820

Repair Parts Manual
(Superseded to 917427820)

$4.99

$

Usually ships in 3-10 days

0
