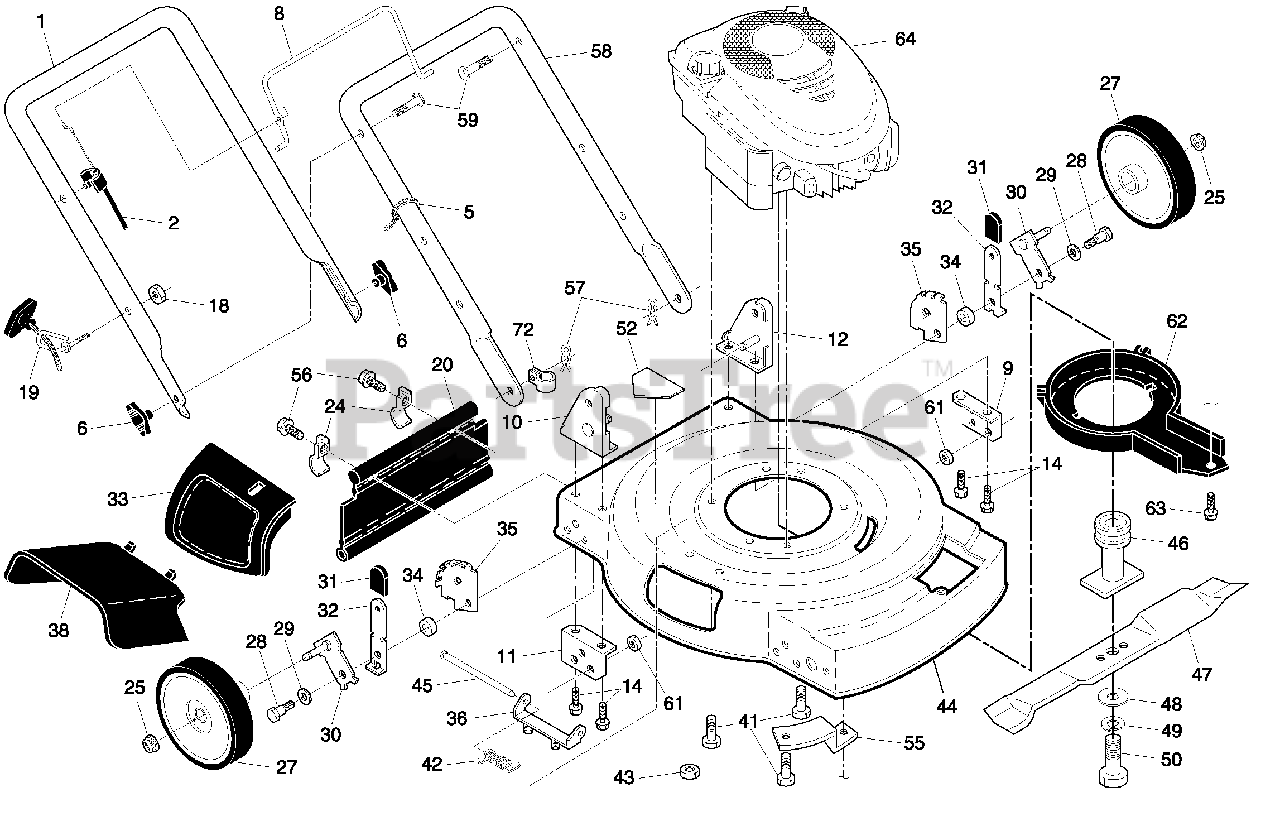

961240001-01 - Weed Eater Walk-Behind Mower (2004-12) Frame Parts Diagram

Walk-Behind Mower

Frame Parts Diagram

  • Title

1

Electrolux/AYP 166860X479

Upper Handle
(Superseded to 532166860)

$

$

Not available

2

Electrolux/AYP 156581

Engine Zone Control Cable
(Superseded to 532168552)

$22.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 189713X428

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 146771

Control Bar
(Superseded to 584446801)

$21.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 153282X479

Support Bracket, Handle, LH
(Superseded to 583681001)

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 170345X479

Handle Bracket Assembly, RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 153350X479

Support Bracket, Handle, RH
(Superseded to 583681101)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 170346X479

Handle Bracket Assembly, LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

14

Electrolux/AYP 149741

Screw, Thread Cutting 5/16-18 x 3/4
(Superseded to 532149741)

$7.49

$

In Stock, only 4 left!

0

18

Electrolux/AYP 132004

Locknut, Keps

$

$

Not available

19

Electrolux/AYP 179585

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 189008

Rear Deflector
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 87584X004

Clamp, Rear Deflector
(Superseded to 532192301)

$

$

Not available

25

Electrolux/AYP 83923

Locknut, Hex 3/18-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 196146

Wheel & Tire Assembly
(Superseded to 583231501)

$36.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 142748

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 62335

Belleville Washer
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 145935X004

Axle Arm Assembly
(Superseded to 532145935)

$

$

Not available

31

Electrolux/AYP 87877

Knob, Selector
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 700331X004

Spring, Selector
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 151889

Discharge Guard
(Superseded to 582979401)

$17.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

35

Electrolux/AYP 700325X007

Bracket, Wheel Adjuster
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 154132

Bracket, Housing
(Superseded to 532154132)

$6.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 176509

Deflector, Discharge
(Superseded to 532441926)

$

$

Not available

41

Electrolux/AYP 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 152124

Spring, Torsion
(Superseded to 532152124)

$7.49

$

In Stock, only 4 left!

0

43

Electrolux/AYP 73800400

Locknut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 196102

Kit, Lawn Mower Housing
(Superseded to 583231201)

Note: (Includes Key Number 52)

$132.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 147286

Rod, Hinge
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

46

Electrolux/AYP 189179

Blade Adapter / Pulley
(Superseded to 532421176)

$28.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 192682

Blade, 22"
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

48

Electrolux/AYP 851074

Washer, Hardened
(Superseded to 532851074)

$4.99

$

In Stock, Qty 7

0

49

Electrolux/AYP 850263

Washer, Lock, Helical
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 851084

Screw, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 141846

Decal, Danger

$

$

Not available

55

Electrolux/AYP 188839X004

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 750097

Screw, Hex Washer Head #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

57

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 151590X479

Lower Handle
(Superseded to 532151590)

$22.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 2 left!

0

61

Electrolux/AYP 751592

Locknut, Hex
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 188784

Debris Shield
(Superseded to 532188784)

$9.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 192325

Screw, Debris Shield
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

64

Engine, Briggs & Stratton, Model Number 121K02

Note: (for engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

72

Electrolux/AYP 192770

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

72

Electrolux/AYP 161058

Warning Decal
(Superseded to 532161058)

Note: (not shown)

$6.49

$

In Stock, only 1 left!

0

72

Electrolux/AYP 193733

Operator's Manual, English
(Superseded to 917193733)

$

$

Not available

72

Electrolux/AYP 193743

Operator's Manual, Spanish

$2.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 195592

Repair Parts Manual

$

$

Not available

72

Electrolux/AYP GCK5000

Grass Catcher
(Superseded to 531307263)

Note: Available accessories not included with lawn mower

$42.99

$

Usually ships in 3-10 days

0
