961240001-01 - Weed Eater Walk-Behind Mower (2004-12) Drive Parts Diagram

Walk-Behind Mower

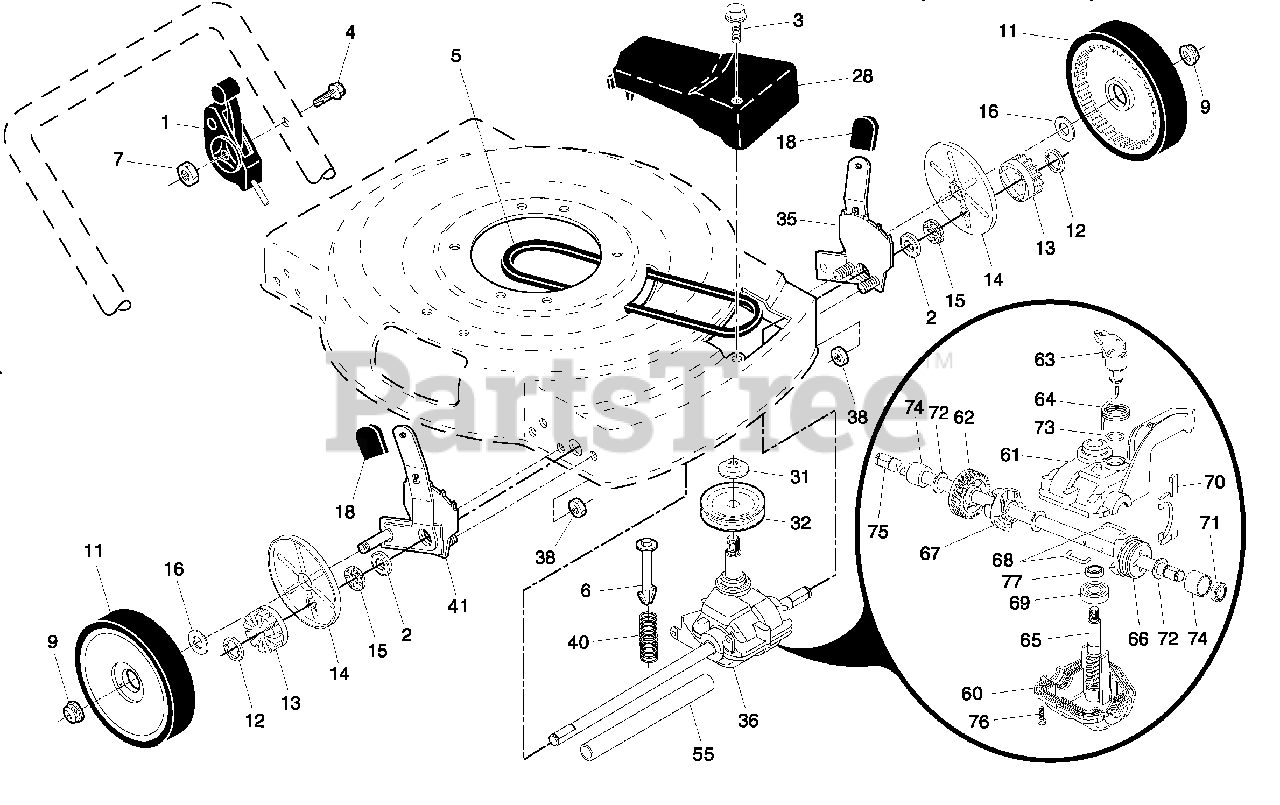

Drive Parts Diagram

  • Title

1

Electrolux/AYP 184588

Drive Control Assembly
(Superseded to 532184588)

$53.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 88058

Bearing, Wheel Adjuster
(Superseded to 588636301)

$

$

Not available

3

Electrolux/AYP 143603

Screw, Tapping, Pan Head #10-24 x 2-3/4
(Superseded to 582961101)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 158755

Screw, Machine, Pan Head 1/4-20 x 2-3/16
(Superseded to 532158755)

$

$

Not available

5

Electrolux/AYP 146527

V-Belt

$

$

Not available

6

Electrolux/AYP 150495

Bolt, Hex Head 1/4-20 x 2
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 191730

Nut, Hex, Flanged 1/4-20
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

9

Murray 145212

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 196149

Wheel & Tire Assembly
(Superseded to 532180775)

$34.99

$

In Stock, Qty 13

0

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 137054

Pinion
(Superseded to 532137054)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 67725

Washer
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 87877

Knob, Selector
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 194398X428

Drive Cover
(Superseded to 583720801)

$15.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 132010

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 189407

Pulley, Drive
(Superseded to 532194126)

$

$

Not available

35

Electrolux/AYP 151521

Kit, Wheel Adjuster, LH
(Superseded to 532151521)

Note: (Includes Knob and Bearing)

$

$

Not available

36

Electrolux/AYP 187211

Gear Case Assembly, Complete
(Superseded to 532187211)

$109.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73800400

Locknut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 137090

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 151520

Kit, Wheel Adjuster, RH
(Superseded to 532151520)

Note: (Includes Knob and Bearing)

$

$

Not available

55

Electrolux/AYP 86012

Drive Shaft Cover

$

$

Not available

60

Electrolux/AYP 183497

Case, Lower
(Superseded to 532183497)

$15.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 183498

Case, Upper
(Superseded to 532183498)

$15.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 183499

Gear, 27 Teeth
(Superseded to 532183499)

$17.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 183500

Lever, Clutch
(Superseded to 532183500)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 183501

Spring, Return
(Superseded to 532183501)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 183502

Shaft, Input
(Superseded to 532183502)

$30.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 183503

Dog, Movable
(Superseded to 532183503)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 183504

Dog, Fixed
(Superseded to 532183504)

$4.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 183505

Wire, Formed
(Superseded to 532183505)

$6.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 183506

Bearing, Ball
(Superseded to 532183506)

$8.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 183507

Fork, Shift
(Superseded to 532183507)

$9.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 183508

Seal, Output Shaft
(Superseded to 532183508)

$11.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 183509

Washer
(Superseded to 532183509)

$6.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 183510

Seal, Case
(Superseded to 532183510)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 183511

Bushing
(Superseded to 532183511)

$5.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 187521

Shaft, Output
(Superseded to 583166301)

$31.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 183513

Screw
(Superseded to 532183513)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 183514

Seal, Input Shaft
(Superseded to 532183514)

$7.99

$

In Stock, only 2 left!

0
