961190002-01 - Poulan Walk-Behind Mower (2013-11) FRAME ENGINE Parts Diagram

Walk-Behind Mower

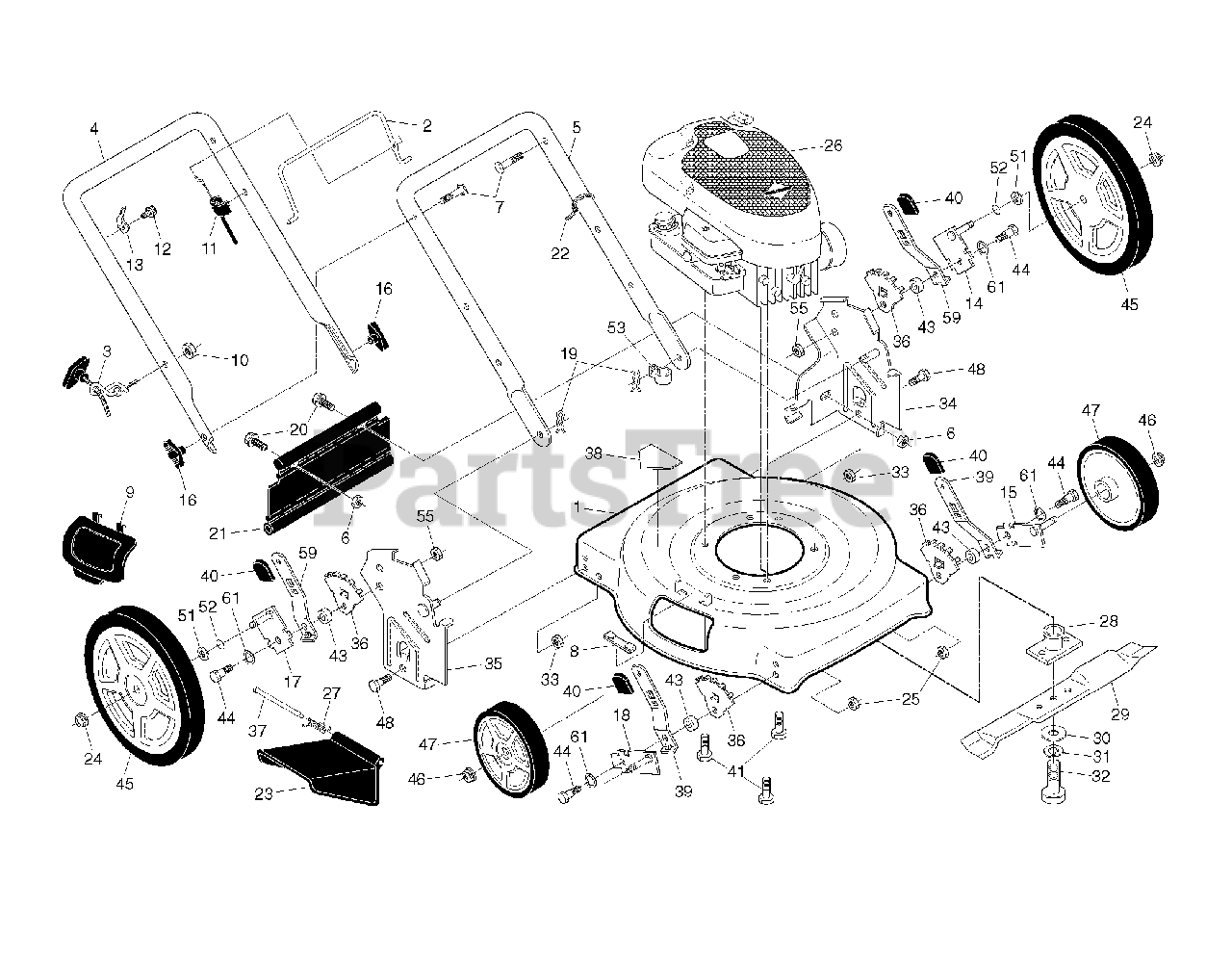

FRAME ENGINE Parts Diagram

  • Title

1

Poulan 532437696

(Superseded to 583521801)

Note: . 38

$

$

Not available

2

Poulan 532196025

BAIL.CONT.D.STRAIGHT.PUSH.BLK

$

$

Not available

3

Poulan 581902101

Rope Guide, Blk Zinc Chrom

$

$

Not available

4

Poulan 532448263

HANDLE.UPPER.ECONOMY.BLACK

$30.99

$

Usually ships in 3-10 days

0

5

Poulan 532434514

HANDLE.LOWER.D-STRAIT.BLACK

$

$

Not available

6

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

8

Poulan 532161622

CLIP. CLOSEOUT

$14.99

$

In Stock, only 2 left!

0

9

Poulan 532160830

PLATE.MULCHER.22.ECON.BLACK

$

$

Not available

10

Poulan 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

11

Poulan 532440934

CABLE.MZR.RATO.22"LOW.

$17.99

$

In Stock, only 4 left!

0

12

Poulan 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

13

Poulan 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

14

Poulan 532410600

Axle Arm Assembly, .Lr.5/9.Pos.Bzp
(Superseded to 532401176)

Note: LH

$6.99

$

Usually ships in 3-10 days

0

15

Poulan 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: LH

$

$

Not available

16

Poulan 532191938

(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

17

Poulan 532410601

Axle Arm Assembly, RR 5/9 Pos BZP
(Superseded to 532401177)

Note: RH

$

$

Not available

18

Poulan 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: RH

$6.99

$

In Stock, only 3 left!

0

19

Poulan 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

20

Poulan 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

21

Poulan 532413160

SKIRT.REAR.22RD/SD.FO/VE

$13.99

$

Usually ships in 3-10 days

0

22

Poulan 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

23

Poulan 532160831

GUARD.DISCHARGE.22".

$

$

Not available

24

Poulan 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 15

0

26

Poulan 000000000

Note: B S 9P702-0025-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

27

Poulan 532408585

SPRING.HINGE

$18.99

$

In Stock, only 2 left!

0

28

Poulan 581547901

ADAPTOR.BLADE.7/8

$17.99

$

In Stock, Qty 20+

0

29

Poulan 532406713

BLADE.22.MULCH.STANDARD

$26.99

$

In Stock, Qty 10

0

30

Poulan 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 1 left!

0

31

Poulan 532850263

(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

32

Poulan 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 532403508

BRKT.ASM.HDL.22.ECON.BLACK

Note: LH

$15.99

$

Usually ships in 3-10 days

0

35

Poulan 532403507

BRKT.ASM.HNDL.22.ECON.HW.RH.BL

Note: RH

$15.99

$

In Stock, only 1 left!

0

36

Poulan 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

37

Poulan 532160833

HINGE ROD

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532404763

No Step Decal
(Superseded to 532182166)

$4.99

$

In Stock, only 3 left!

0

39

Poulan 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

40

Poulan 532087877

KNOB PM

$6.49

$

In Stock, only 1 left!

0

41

Poulan 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

43

Poulan 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

44

Poulan 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, only 4 left!

0

45

Poulan 581010322

WHEEL.12X1.75.5SPK.BRK.BLACK
(Superseded to 532430500)

$

$

Not available

46

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Poulan 532430501

WHEEL.7X1.75.5SPK.BRK.BLACK
(Superseded to 532436478)

$

$

Not available

48

Poulan 874760514

BOLT

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

52

Poulan 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

55

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

59

Poulan 532441559

SPRING.SEL.22.ECON.HI-WHL.RATO

$6.99

$

Usually ships in 3-10 days

0

61

Poulan 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

Poulan 532404764

Warning Decal

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days

0
