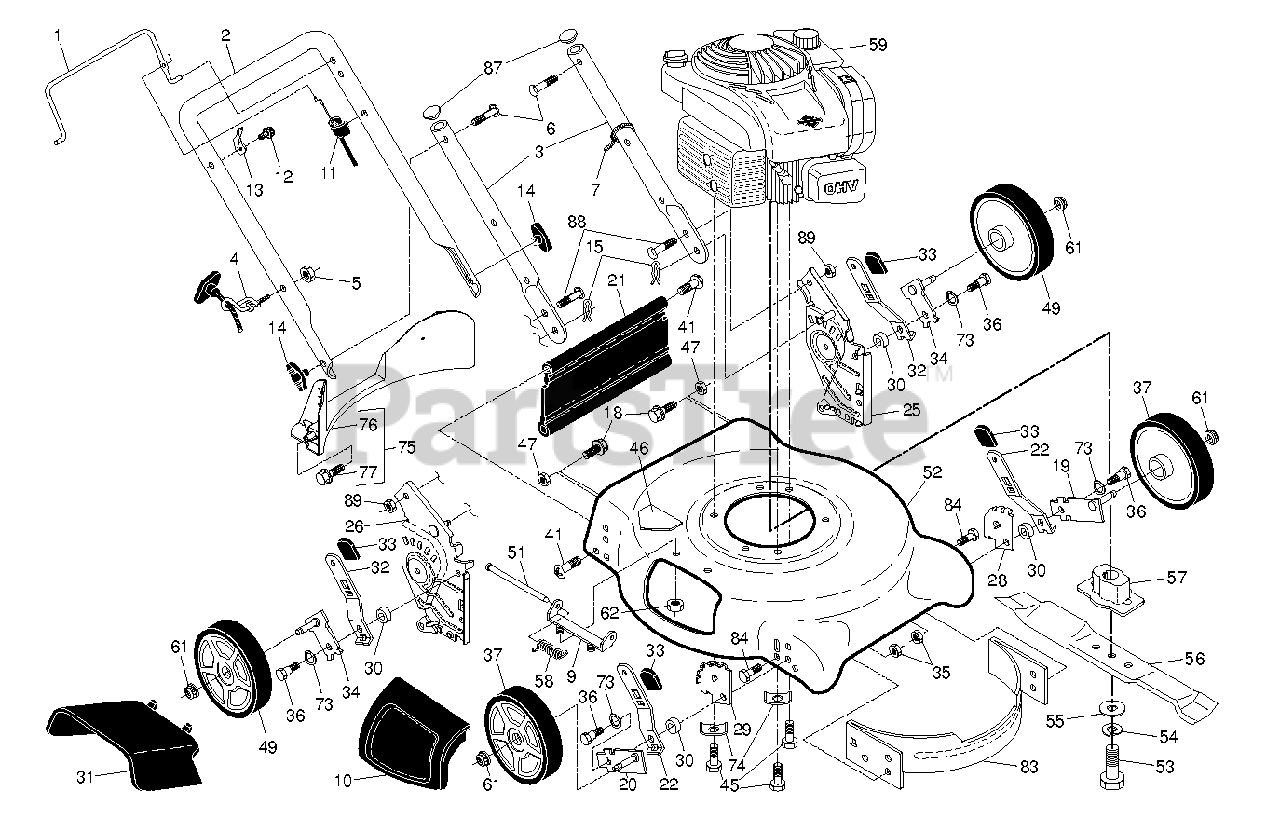

961180018-00 - Poulan Walk-Behind Mower (2013-12) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title

1

Poulan 532196025

BAIL.CONT.D.STRAIGHT.PUSH.BLK

$

$

Not available

2

Poulan 532448263

HANDLE.UPPER.ECONOMY.BLACK

$30.99

$

Usually ships in 3-10 days

0

3

Poulan 580638602

HANDLE.LOWER.DOME.BT.BLACK

$

$

Not available

4

Poulan 581902101

Rope Guide, Blk Zinc Chrom

$

$

Not available

5

Poulan 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

6

Poulan 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

7

Poulan 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Poulan 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$6.99

$

In Stock, only 1 left!

0

10

Poulan 532165754

MULCH DOOR

$11.99

$

In Stock, only 1 left!

0

11

Poulan 532440934

CABLE.MZR.RATO.22"LOW.

$17.99

$

In Stock, only 4 left!

0

12

Poulan 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

13

Poulan 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

14

Poulan 532191938

(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

15

Poulan 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: LH

$

$

Not available

20

Poulan 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: RH

$6.99

$

In Stock, only 3 left!

0

21

Poulan 532418655

KIT.SKIRT.21 DOMED.W/LIP
(Superseded to 532416860)

$13.99

$

In Stock, Qty 5

0

22

Poulan 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

25

Poulan 581714502

BRACKET.ASM.HAND.LW.21.LT.BLAC

Note: LH

$15.99

$

Usually ships in 3-10 days

0

26

Poulan 581714602

BRACKET.ASM.HAND.LW.21.RT.BLAC

Note: RH

$15.99

$

Usually ships in 3-10 days

0

28

Poulan 532414441

BRACKET.ADJ.5.RTAB.LG.HOLE.ABS
(Superseded to 532407499)

Note: LH

$

$

Not available

29

Poulan 532414440

BRACKET.ADJ.5.LTAB.LG.HOLE.ABS
(Superseded to 532407500)

Note: RH

$

$

Not available

30

Poulan 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

31

Poulan 532165760

CLIP ON DISCHARGE GUARD
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

32

Poulan 532410888

SPRING.SELECTOR.21RD.HTTRT.BZP
(Superseded to 532401623)

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 532087877

KNOB PM

$6.49

$

In Stock, only 1 left!

0

34

Poulan 532410890

ARM.ASM.AXLE.REAR.5/9.POS.BZP

Note: LH

$7.49

$

In Stock, only 4 left!

0

35

Poulan 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 15

0

36

Poulan 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

37

Poulan 532403421

$

$

Not available

41

Poulan 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

46

Poulan 532404763

No Step Decal
(Superseded to 532182166)

$4.99

$

In Stock, only 3 left!

0

47

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

49

Poulan 532403458

FENDER.550.LT.W/SFT.W/O.CUP
(Superseded to 584377801)

$145.99

$

Usually ships in 3-10 days

0

51

Poulan 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

52

Poulan 581708313

KIT.HSG.21SD.PUSH.MS428.TRI

Note: (INCLUDES 46)

$

$

Not available

53

Poulan 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

54

Poulan 532850263

(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Poulan 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

56

Poulan 532406712

BLADE.21.PUSH/RWGD/FWGD

$20.99

$

In Stock, only 2 left!

0

57

Poulan 581547901

ADAPTOR.BLADE.7/8

$17.99

$

In Stock, Qty 20+

0

58

Poulan 532152124

TORSION SPRING

$7.49

$

In Stock, only 3 left!

0

59

Poulan 000000000

Note: B S 8P502-0042-F1 FOR SERVICE PARTS CALL 1-800-233-3723

$

$

Not available

61

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

73

Poulan 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

74

Poulan 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

76

Poulan 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$13.99

$

Usually ships in 3-10 days

0

77

Poulan 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

83

Poulan 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

0

84

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

87

Poulan 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

88

Poulan 872250505

(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

89

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

Poulan 532404764

Warning Decal

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days
