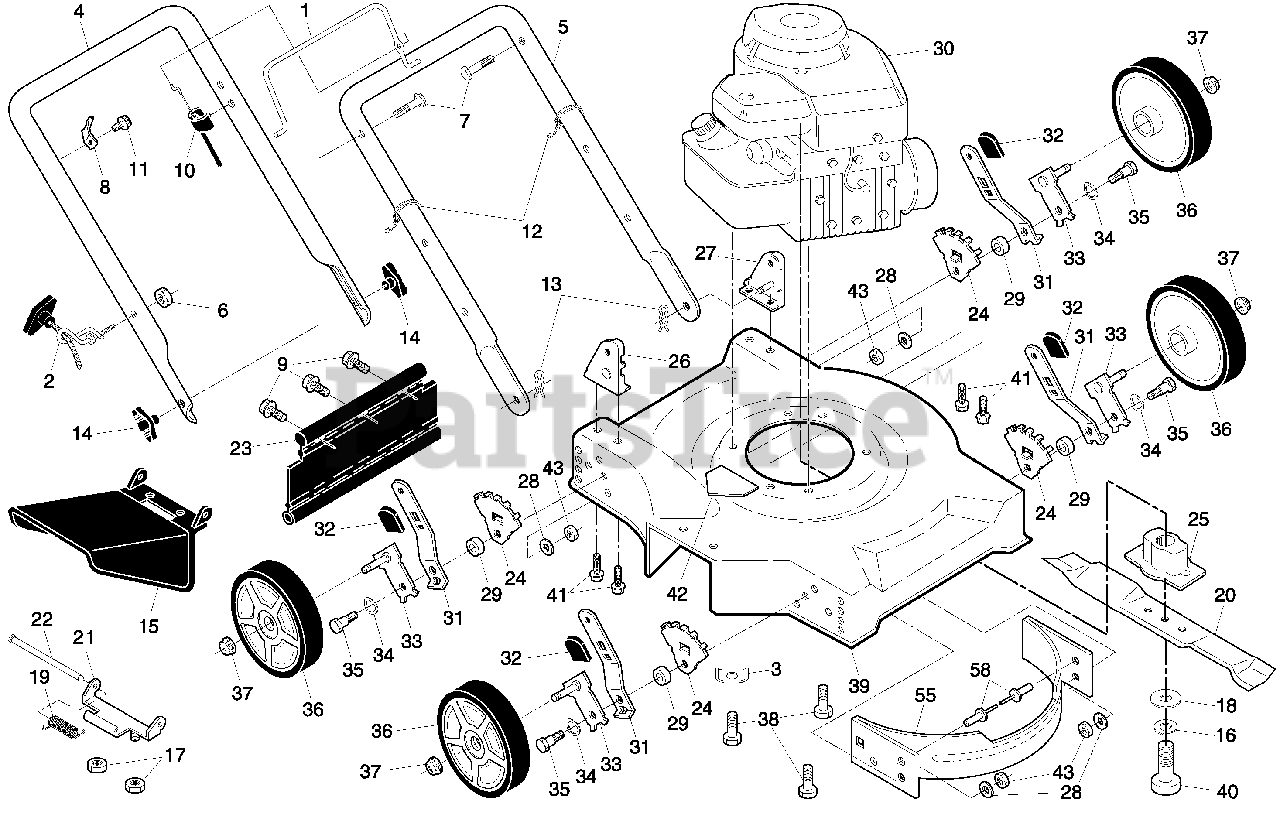

961140007-15 - Weed Eater Walk-Behind Mower (2007-10) Product Complete Parts Diagram

Walk-Behind Mower

Product Complete Parts Diagram

  • Title

1

Electrolux/AYP 194176X428

Control Bar
(Superseded to 532196025)

$

$

Not available

2

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Electrolux/AYP 851201X004

Engine Washer

$

$

Not available

4

Electrolux/AYP 194180X479

Upper Handle
(Superseded to 532196026)

$28.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 151590X479

Lower Handle
(Superseded to 532151590)

$22.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 132004

Nut, Hex

$

$

Not available

7

Electrolux/AYP 191574

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532191574)

$6.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 86899X004

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 189241

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 532189241)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 162778

Engine Zone Control Cable
(Superseded to 532176556)

$22.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

12

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 189713X428

Knob, Handle
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

15

Electrolux/AYP 412277X428

Discharge Guard
(Superseded to 596215201)

$11.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 850263

Helical Lock Washer 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73800400

Locknut, Hex 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, Qty 7

0

19

Electrolux/AYP 411832

Torsion Spring
(Superseded to 532411832)

$5.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 145106

Blade, 20"
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 88602

Hinge Deflector
(Superseded to 532088602)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 150215

Hinge Rod
(Superseded to 532150215)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 189240

Rear Deflector
(Superseded to 583181001)

$

$

Not available

24

Electrolux/AYP 407494X005

Wheel Adjusting Bracket
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 170345X479

Handle Bracket Assembly, RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 170346X479

Handle Bracket Assembly, LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 61537

Washer, Flat

$

$

Not available

29

Electrolux/AYP 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

30

Engine, Briggs & Stratton, Model Number 09S502 (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

31

Electrolux/AYP 401621X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

33

Electrolux/AYP 401179X004

Axle Arm Assembly
(Superseded to 532401179)

$7.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 401630

Washer, Curved, Cylindrical
(Superseded to 532401630)

$4.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 401638

Shoulder Bolt
(Superseded to 596203801)

$4.99

$

In Stock, Qty 9

0

36

Electrolux/AYP 193931X617

Wheel and Tire Assembly
(Superseded to 532436380)

$

$

Not available

37

Electrolux/AYP 409148

Nut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 414790

Lawn Mower Housing
(Superseded to 583352301)

$

$

Not available

40

Electrolux/AYP 851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

41

Electrolux/AYP 149741

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 532149741)

$7.49

$

In Stock, only 4 left!

0

42

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 73930500

Locknut, Hex 3/8-16
(Superseded to 873930500)

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 700839X479

Baffle, Front

$

$

Not available

58

Electrolux/AYP 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 193732

Operator’s Manual, English

$2.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 193735

Operator's Manual, Spanish
(Superseded to 917193735)

$5.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 416924

Repair Parts Manual, English

$2.49

$

Usually ships in 3-10 days

0
