961002 (961460009-00) - Ariens 22" Walk-Behind Mower, Briggs & Stratton Mower Assembly Parts Diagram

22" Walk-Behind Mower, Briggs & Stratton

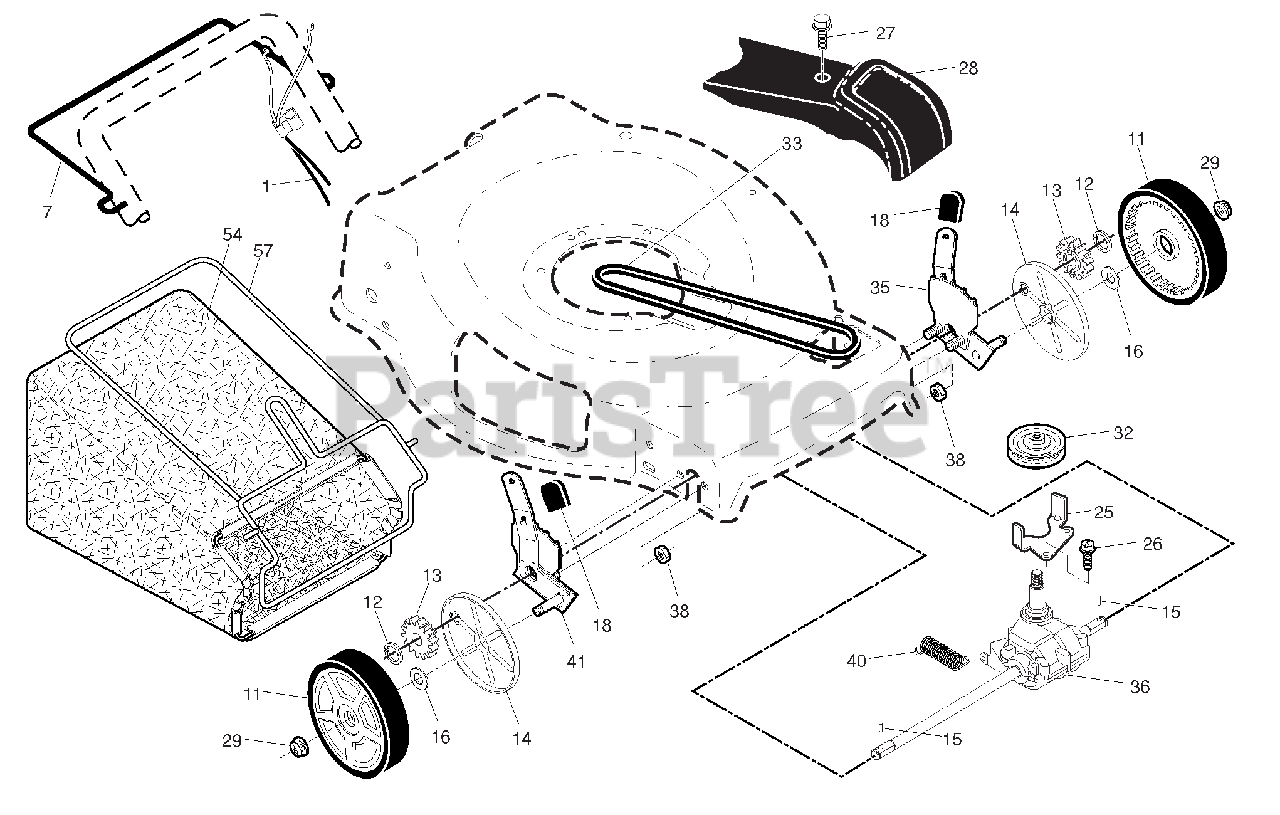

Mower Assembly Parts Diagram

  • Title

1

Ariens 21548494

CABLE, DRIVE CONTROL

$62.99

$

Usually ships in 4-12 days

0

7

Ariens 21548493

CONTROL BAR, DRIVE
(Superseded to 21548844)

$

$

Not available

11

Ariens 21548402

WHEEL & TIRE ASSEMBLY

$51.99

$

In Stock, Qty 6

0

12

Ariens 21547525

E-RING

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 21547484

Pinion

$10.99

$

In Stock, only 3 left!

0

14

Ariens 21548456

DUST COVER

$

$

Not available

15

Ariens 21547485

Pawl, Drive

$6.49

$

In Stock, only 1 left!

0

16

Ariens 21547471

Washer, Flat 3/8

$

$

Not available

18

Ariens 21547504

Selector Knob

$

$

Not available

25

Ariens 21548466

BELT KEEPER

$

$

Not available

26

Ariens 21548414

SCREW, HI-LO THREAD #12 X 5/8

$

$

Not available

27

Ariens 21547478

Pan Head Tapping Screw #10-24

$10.99

$

In Stock, only 2 left!

0

28

Ariens 21548489

DRIVE COVER

$

$

Not available

29

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$

$

Not available

32

Ariens 21548443

DRIVE PULLEY

$19.99

$

Usually ships in 4-12 days

0

33

Ariens 21548417

V-BELT

$24.99

$

Usually ships in 4-12 days

0

35

Ariens 21548404

KIT WHEEL ADJUSTOR FRONT LH

Note: (Includes Bearing)

$

$

Not available

36

Ariens 21548434

GEARCASE ASSEMBLY, COMPLETE
(Superseded to 21549050)

$

$

Not available

38

Ariens 21548415

LOCKNUT, HEX 1/4-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 21548418

SPRING

$

$

Not available

41

Ariens 21548403

KIT WHEEL ADJUSTOR FRONT RH
(Superseded to 21548496)

Note: (Includes Bearing)

$32.99

$

Usually ships in 4-12 days

0

54

Ariens 21548448

GRASSBAG

$

$

Not available

57

Ariens 21548427

FRAME, GRASSBAG
(Superseded to 21548845)

$25.99

$

In Stock, only 1 left!

0
