960710016-01 - Husqvarna Grass Catcher (2007-05) PRODUCT COMPLETE Parts Diagram

Grass Catcher

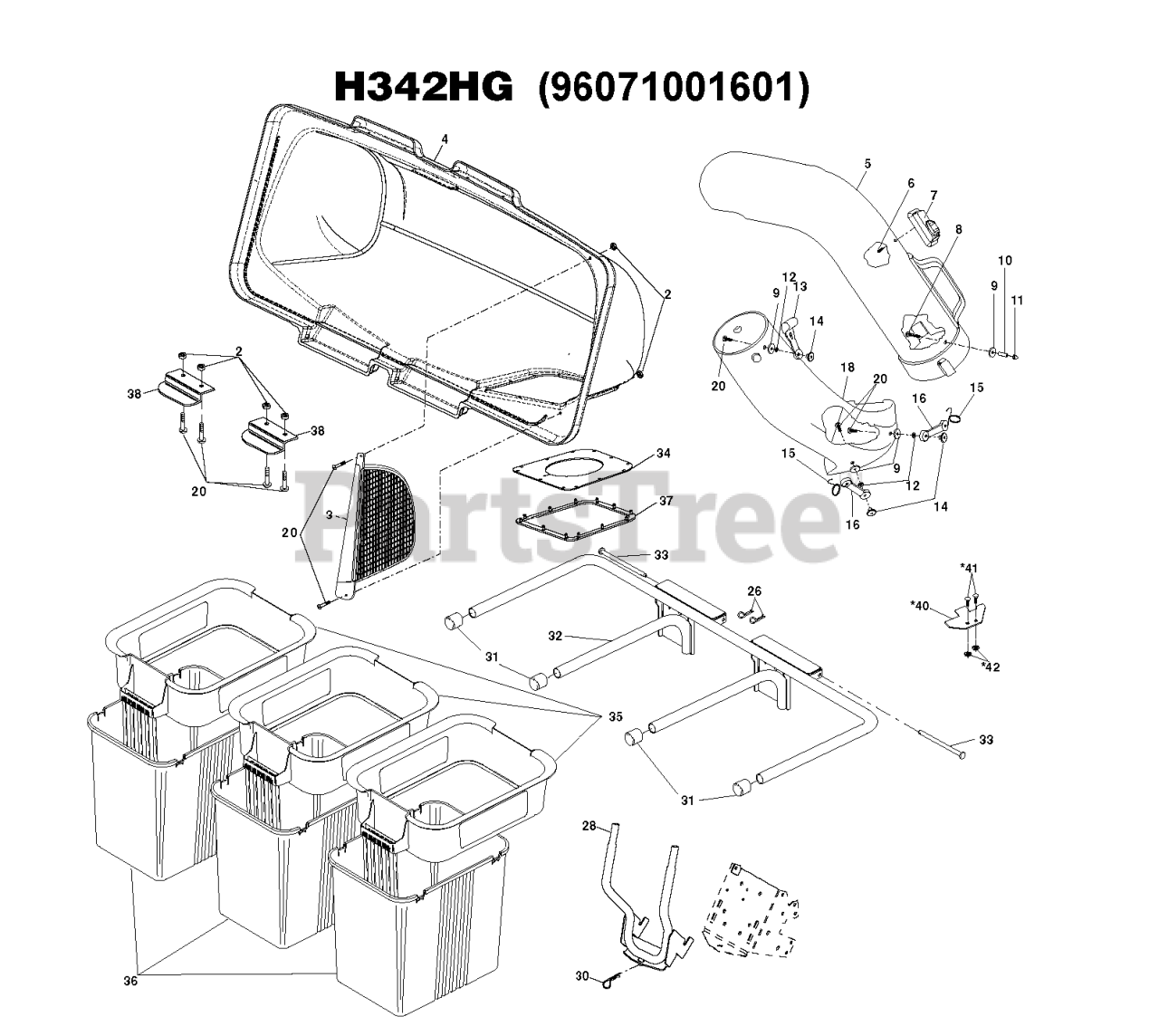

PRODUCT COMPLETE Parts Diagram

  • Title

40

Husqvarna 532415405

BRACKET.CHUTE.BAGGER.BLACK
(Superseded to 583748401)

Note: Not needed if tractor is equippted with the L shaped bracket

$

$

Not available

28

Husqvarna 532198128

BAGGER.ASM.SUPPORT.GT.TEX.BLAC

$133.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532052784

RP STEEL WASHER
(Superseded to 819061216)

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 532130933

INDICATOR ASM BAG

$7.99

$

In Stock, only 2 left!

0

5

Husqvarna 532414960

CHUTE.UPPER.BAGGER.42"

$91.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532109808

LATCH.HOOD.

$6.99

$

In Stock, Qty 15

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

34

Husqvarna 532192550

SEAL.BAGGER.TOP.3-BIN.BLK

$20.99

$

In Stock, Qty 11

0

15

Husqvarna 532130760

HOOK LATCH
(Superseded to 597000601)

$6.99

$

In Stock, Qty 11

0

20

Husqvarna 871161010

SCREW
(Superseded to 871081010)

$3.99

$

In Stock, Qty 18

0

26

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

31

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 3 left!

0

12

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 14

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532129586

CONTAINER BOTTOM

$80.99

$

In Stock, only 4 left!

0

30

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532192709

SCREEN.COVER.BAGGER

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532195373

COVER.ASM.3BIN.GENERIC.

$278.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532176990

BAGGER.ASM.FRAME.3BIN.BLACK

$121.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

SCREW

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 873900400

NUT T
(Superseded to 873680400)

Note: Not needed if tractor is equippted with the L shaped bracket

$4.99

$

In Stock, Qty 18

0

16

Husqvarna 532130759

RUBBER LATCH
(Superseded to 597000601)

$6.99

$

In Stock, Qty 11

0

10

Husqvarna 532007206

SPACER LT

$7.49

$

In Stock, Qty 8

0

41

Husqvarna 872140406

BOLT
(Superseded to 872110407)

Note: Not needed if tractor is equippted with the L shaped bracket

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532192603

GASKET.COVER.BAGGER

$10.99

$

In Stock, only 1 left!

0

33

Husqvarna 532192786

BAGGER.HINGE.PIN

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532162803

LOWER CHUTE FOR 42" BAGGER
(Superseded to 592866501)

$106.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532183286

CONTAINER TOP

$34.99

$

Usually ships in 3-10 days

0
