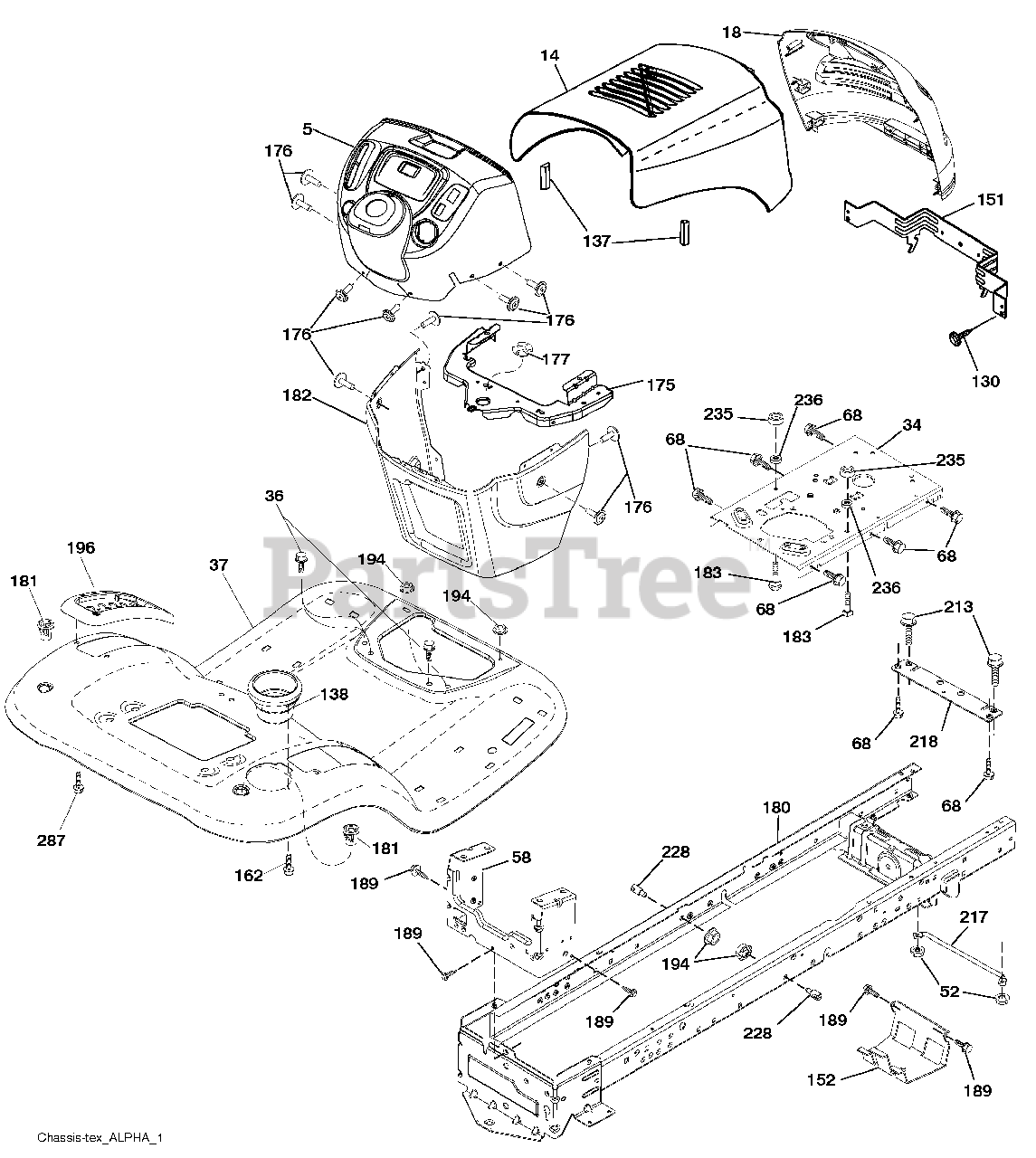

960480001-00 - Weed Eater Lawn Tractor (2010-02) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title

5

Electrolux/AYP 197783X428

Dash
(Superseded to 532411764)

$66.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 187559X550

Hood
(Superseded to 532195296)

$133.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 187566X428

Grille
(Superseded to 532194797)

$

$

Not available

34

Electrolux/AYP 196125

Plate Engine
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

37

Electrolux/AYP 414872X550

Fender

$

$

Not available

52

Murray 73680500

Nut Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 412280

Drawbar Upper
(Superseded to 532412280)

$46.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 416358

Screw #10 x 0.750
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

137

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

138

Electrolux/AYP 193224X428

Cupholder
(Superseded to 532409730)

$7.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 187568

Bracket Pivot
(Superseded to 532187568)

$28.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 199535

Shield Browning/Debris

$

$

Not available

162

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 193243

Crossmember
(Superseded to 532193243)

$27.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 400776

Screw 10-24 x 5/8 Wshd Qdrx
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 195228

Bushing Steering
(Superseded to 532195228)

$5.99

$

Usually ships in 3-10 days

0

180

Electrolux/AYP 414685

Chassis

$71.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 193102X428

Bushing Mtg. Fender Crgo.
(Superseded to 532404796)

$

$

Not available

182

Electrolux/AYP 193057

Dash Lower
(Superseded to 532193057)

$96.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 74520520

Bolt 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

194

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Electrolux/AYP 414579

Console Asm. Deck Lift
(Superseded to 532414579)

$37.99

$

In Stock, only 1 left!

0

213

Electrolux/AYP 74760512

Bolt 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Electrolux/AYP 409167

Rod Pivot Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

218

Electrolux/AYP 196395

X-Piece Hood Stop
(Superseded to 532196395)

$7.99

$

In Stock, only 1 left!

0

228

Electrolux/AYP 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

235

Electrolux/AYP 406129

Spacer Fender
(Superseded to 532406129)

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 73930500

Nut Center Lock 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

287

Electrolux/AYP 17600406

Screw 1/4-20 x 3/8
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

287

Electrolux/AYP 193640X428

Plug Switch Light
(Superseded to 532193934)

$6.99

$

Usually ships in 3-10 days

0
