96-48ST01 - Toro 48" Snow Thrower Attachment (1979) SNOWTHROWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 96-42ST01 Parts Diagram

48" Snow Thrower Attachment

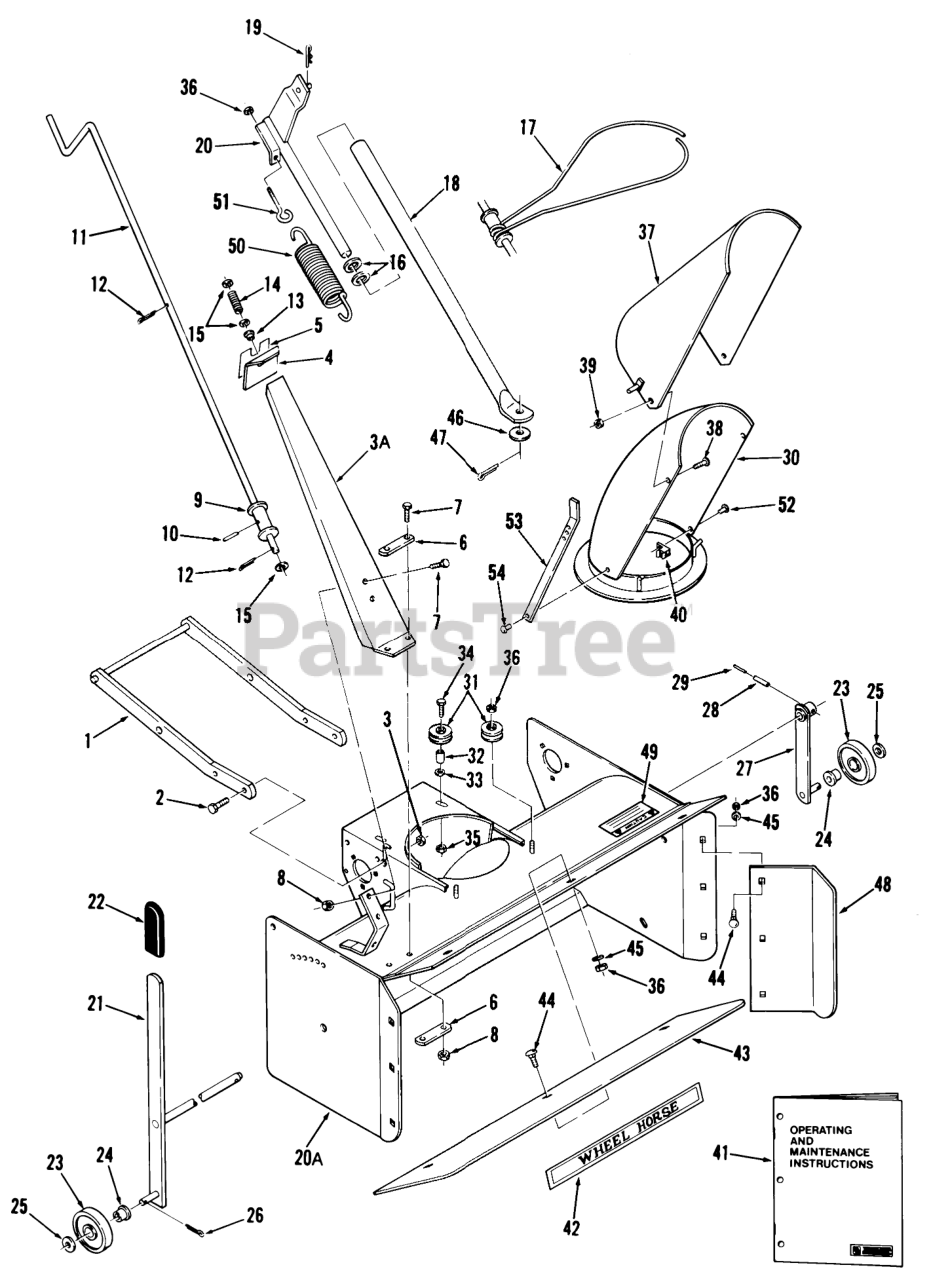

SNOWTHROWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 96-42ST01 Parts Diagram

  • Title

1

Toro 104604

Frame-Mounting
(Superseded to 104604-01)

$

$

Not available

2

Toro 908033

Bolt
(Superseded to 110242)

Note: Indicates Part of Loose Parts Package 803254.

$2.49

$

In Stock, Qty 5

0

3

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803254.

$0.99

$

Usually ships in 3-6 days

0

3A

Toro 6426

Crank Support
(Superseded to 107524)

$

$

Not available

4

Toro 104465

Decal Plate

Note: Indicates Part of Loose Parts Package 803254.

$

$

Not available

5

Toro 104461

Decal-Snow Guide

Note: Indicates Part of Loose Parts Package 803254.

$

$

Not available

6

Toro 7494

Bar-Reinforcing

Note: Indicates Part of Loose Parts Package 803254.

$

$

Not available

7

Toro 908032

Bolt
(Superseded to 323-4)

Note: Indicates Part of Loose Parts Package 803254.

$3.99

$

In Stock, Qty 14

0

8

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803254.

$0.99

$

Usually ships in 3-6 days

0

9

Toro 105048

ASSY TUBE CRANK R

$95.99

$

Usually ships in 3-6 days

0

10

Toro 933215

ROLL PIN 1/4 X 1-1/4

$2.49

$

Usually ships in 3-6 days

0

11

Toro 105051

Crank
(Superseded to 108721)

$

$

Not available

12

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: Indicates Part of Loose Parts Package 803254.

$1.49

$

In Stock, Qty 11

0

13

Toro 5982

NYLINER BUSHING

Note: Indicates Part of Loose Parts Package 803254.

$

$

Not available

14

Toro 2354

SPRING-COMPRESSION

Note: Indicates Part of Loose Parts Package 803254.

$20.99

$

Usually ships in 3-6 days

0

15

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates Part of Loose Parts Package 803254.

$0.99

$

In Stock, Qty 20+

0

16

Toro 920015

Washer
(Superseded to 3256-28)

Note: Indicates Part of Loose Parts Package 803254.

$3.99

$

In Stock, Qty 20+

0

17

Toro 104460

CABLE

Note: Indicates Part of Loose Parts Package 803254.

$22.99

$

In Stock, Qty 6

0

18

Toro 107403

ASSY LIFT TUBE R

$

$

Not available

19

Toro 933504

Hairpin
(Superseded to 9335044)

Note: Indicates Part of Loose Parts Package 803254.

$1.49

$

In Stock, Qty 11

0

20

Toro 101461

LIFT ROD ASM
(Superseded to 101461-03)

$

$

Not available

20A

Toro 104470

Wrapper Assembly

$

$

Not available

21

Toro 4477

ASSY AUGER SHAFT R

$

$

Not available

22

Toro 5359

GRIP

$11.99

$

Usually ships in 3-6 days

0

23

Toro 2173

Wheel Assembly (Includes Item 24)

$

$

Not available

24

Toro 1974

Bushing
(Superseded to 100284)

$

$

Not available

25

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

26

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

27

Toro 5157

Wheel Support

$

$

Not available

28

Toro 933215

ROLL PIN 1/4 X 1-1/4

$2.49

$

Usually ships in 3-6 days

0

29

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

30

Toro 5220

S/A SHROUD R

$

$

Not available

31

Toro 1973

Roller

$

$

Not available

32

Toro 2163

SPACER

$

$

Not available

33

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

34

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 15

0

35

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

Usually ships in 3-6 days

0

36

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates Part of Loose Parts Package 803254.

$2.99

$

In Stock, Qty 20+

0

37

Toro 2165

Deflector
(Superseded to 110978)

$

$

Not available

38

Toro 910836

MACH. SCREW

$

$

Not available

39

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

40

Toro 101447

CLAMP

$35.99

$

Usually ships in 3-6 days

0

41

Toro 803737R1

Operating and Maintenance Instructions

$

$

Currently unavailable

42

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

43

Toro 7495

Plate
(Superseded to 93-1616-01)

$

$

Not available

44

Toro 900063

Bolt
(Superseded to 323-12)

Note: Indicates Part of Loose Parts Package 803254.

$2.99

$

In Stock, Qty 20+

0

45

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 803254.

$0.99

$

In Stock, Qty 20+

0

46

Toro 920013

WASHER
(Superseded to 3256-27)

Note: Indicates Part of Loose Parts Package 803254.

$2.99

$

In Stock, Qty 15

0

47

Toro 932034

Cotter Pin
(Superseded to 3272-21)

Note: Indicates Part of Loose Parts Package 803254.

$3.49

$

In Stock, only 3 left!

0

48

Toro 103552

Plate
(Superseded to 93-1617-01)

$95.99

$

Usually ships in 3-6 days

0

49

Toro 104463

Decal-Caution

$

$

Not available

50

Toro 4629

SPRING

Note: Indicates Part of Loose Parts Package 803254.

$86.99

$

In Stock, only 1 left!

0

51

Toro 100653

EYEBOLT

Note: Indicates Part of Loose Parts Package 803254.

$27.99

$

Usually ships in 3-6 days

0

52

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

53

Toro 2078

ARM R

$

$

Not available

54

Toro 923005

RIVET

$

$

Not available
