9584-1 - Generac CP 4,500 PSI Pressure Washer Pressure Washer & Cradle No. 93215 Parts Diagram

CP 4,500 PSI Pressure Washer

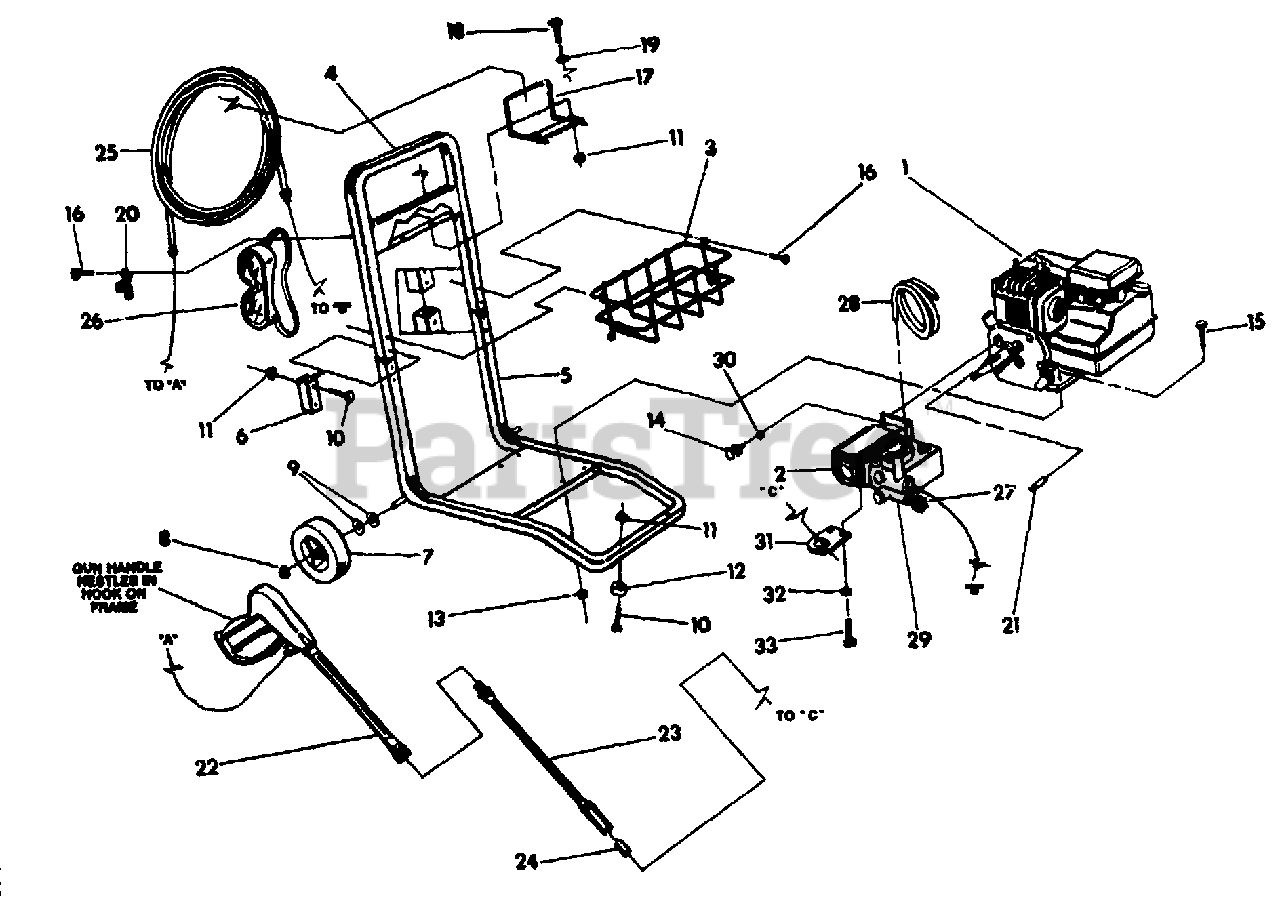

Pressure Washer & Cradle No. 93215 Parts Diagram

  • Title

1

Briggs & Stratton 87611

Briggs & Stratton 5 hp Engine

$

$

Currently unavailable

2

Briggs & Stratton 87822

Pump
(Superseded to 87822GS)

$562.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 87827

Wire Basket

$

$

Currently unavailable

4

Briggs & Stratton 94138

Guide Handle

$

$

Currently unavailable

5

Briggs & Stratton 94027

Cradle Assembly

$

$

Currently unavailable

6

Briggs & Stratton 88271

U-bracket

$

$

Currently unavailable

7

Briggs & Stratton 87280

Wheel Assembly
(Superseded to 197061GS)

$24.99

$

In Stock, Qty 11

0

8

Briggs & Stratton 75402

Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 51753

M6-1.0 x 40mm Capscrew
(Superseded to 51753GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 52857

M6-1.0 Flange Lock Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 87841

Shock Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 22336

5/16"-24 x 3/4" Capscrew with washer

$

$

Not available

15

Briggs & Stratton 39414

M8-1.25 x 35mm Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 86292

#10-16 Hex Head Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 94286

Wire Hook Support
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 47411

M5-0.8 x 16mm Capscrew

$

$

Not available

19

Briggs & Stratton 49811

M6 Flat Washer
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 89636

Gun Holder

$

$

Not available

21

Briggs & Stratton 89314

3/16" sq., 1-7/8" Key
(Superseded to 89314GS)

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 91628

Wand Handle

$

$

Not available

23

Briggs & Stratton 91030

Wand Extension (green)

$

$

Not available

24

Briggs & Stratton 92660

1.5mm I.D. Nozzle

$

$

Not available

25

Briggs & Stratton 91630

3/8" I.D. Hose Assembly

$

$

Not available

26

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 89647

Brass Garden Hose Connector

$

$

Not available

28

Briggs & Stratton 89800

Injector Tube & Filter Assm.
(Superseded to 89800GS)

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 89646

Aluminum Garden Hose Neck
(Superseded to 89646GS)

$76.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 92479

MB Conical Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 89602

Wand Holder

$

$

Currently unavailable

32

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 51754

M8 x 12mm Capscrew
(Superseded to 51754GS)

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 89358

Pump oil seals and rear cover gasket Kit
(Superseded to 89358GS)

Note: Contact Generac for quantity required.

$94.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 89359

Pump inlet and outlet check valves with O-rings Kit
(Superseded to 89359GS)

Note: Contact Generac for quantity required.

$68.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 89360

Pump piston guides and water seals kit

Note: Contact Generac for quantity required.

$

$

Not available

Briggs & Stratton 89361

O-rings seals, inlet water filter, etc. for combiset Kit
(Superseded to 89361GS)

Note: Contact Generac for quantity required.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 89363

Pump Inlet Water Filter Kit
(Superseded to 89363GS)

Note: Contact Generac for quantity required.

$7.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 89787

Spray Nozzle Assembly Kit
(Superseded to 89787GS)

Note: Contact Generac for quantity required.

$17.99

$

Usually ships in 2-12 days

0
