9560 E (1694589) - Simplicity 24" Snow Thrower, 9.5hp Engine and Frame Group without Power Boost Parts Diagram

24" Snow Thrower, 9.5hp

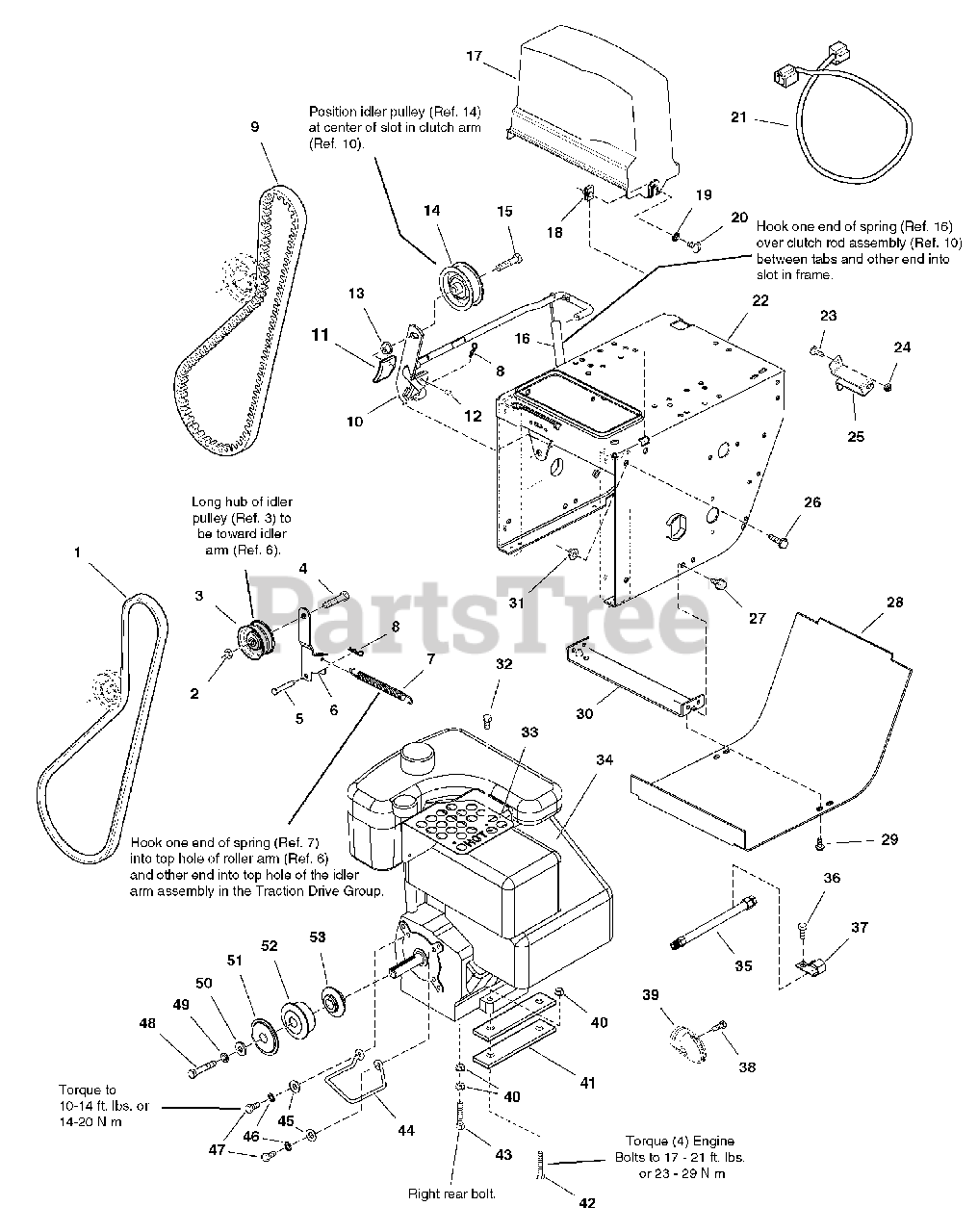

Engine and Frame Group without Power Boost Parts Diagram

  • Title

1

Simplicity 1700415SM

V-BELT, 3L (Used on all models Except 1390 Models)

$24.99

$

In Stock, Qty 6

0

1

Simplicity 1672732SM

V-BELT, 3L (Used Only on 1390 Models)

$20.99

$

In Stock, Qty 15

0

2

Simplicity 1928731SM

NUT, Hex, Toplock, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

3

Simplicity 1668477SM

PULLEY, Idler

$23.99

$

In Stock, Qty 20+

0

4

Simplicity 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

5

Simplicity 1665994SM

PIN, Flat Head Drilled
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

6

Simplicity 1703046ASM

ARM, Idler, 5-3/4 LG

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 1727149SM

SPRING, Extension
(Superseded to 703146)

$

$

Not available

8

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

9

Simplicity 1725416SM

V-BELT, HA (Used on all models Except 1390 Models)

$29.99

$

Usually ships in 2-12 days

0

9

Simplicity 1666655SM

V-BELT, HA (Used Only on 1390 Models)

$29.99

$

In Stock, Qty 7

0

10

Simplicity 1727058ASM

ROD AND ARM ASSEMBLY, Clutch, Brake w/Pad
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

11

Simplicity 1669313SM

PAD, Brake

$14.99

$

In Stock, Qty 5

0

12

Simplicity 2825160SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

13

Simplicity 1928352SM

NUT, Hex Flange, 3/8-16 Whiz Lock Large
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 1726348SM

PULLEY, Idler

$24.99

$

In Stock, only 4 left!

0

15

Simplicity 2860709SM

SCREW, Hex Whiz Lock Flange, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1727059SM

SPRING, Extension

$17.99

$

Usually ships in 2-12 days

0

17

Simplicity 1725287SM

COVER, Belt
(Superseded to 706414)

$

$

Not available

18

Simplicity 1935255SM

NUT, Speed, 5/16-18, Lug Type

$3.49

$

In Stock, only 2 left!

0

19

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 1918249SM

SCREW, Truss head Slotted, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1724064SM

CORD, Electric Extension

$40.99

$

Usually ships in 2-12 days

0

22

Simplicity 1726568D

FRAME ASSEMBLY, Chain/Tube Handles

$

$

Not available

23

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4 G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 1960685SM

NUT, Hex KEPS, 1/4-20, Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

25

Simplicity 1720404ASM

SUPPORT, Clutch Cable, 16GA
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

26

Simplicity 1930591SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

27

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1726870DSM

COVER, Bottom Frame, 20GA

$80.99

$

Usually ships in 2-12 days

0

29

Simplicity 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

30

Simplicity 41727004

SUPPORT, Tie Bar

$

$

Not available

31

Simplicity 1927557SM

NUT, Hex Flange, 5/16-18, Whiz Lock Large

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1725664ASM

GUARD, Muffler, 18GA

$25.99

$

Usually ships in 2-12 days

0

33

Simplicity 1929477SM

SCREW, Hex Washer Head Taptite, #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

34

ENGINE, 9.5HP Briggs & Stratton Electric Start Model: 20G4140 Type: 111E1

$

$

Not available

34

ENGINE, 9.5HP Briggs & Stratton Electric Start

Note: Model: 20G4160 Type: 110E1 (CE/Export)

$

$

Not available

35

Simplicity 1726942SM

HOSE, Oil Drain, w/Fittings

$28.99

$

Usually ships in 2-12 days

0

36

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1727068SM

CLIP, "J"

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 1727033SM

SCREW, Muffler Deflector

$3.49

$

Usually ships in 2-12 days

0

39

Simplicity 1727032SM

DEFLECTOR, Rain Guard, B&S Snow Muffler

$12.99

$

Usually ships in 2-12 days

0

40

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18, Whiz Lock Small (Quantity 4 used only on 9560 Models)
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

41

Simplicity 1725326C

SUPPORT, Engine Riser (Used on all models Except 1390 Models)
(Superseded to 1725326ASM)

$12.99

$

Usually ships in 2-12 days

0

42

Simplicity 1935159SM

CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 2-1/4 (Used on all models Except 1390 Models)

$2.49

$

Usually ships in 2-12 days

0

42

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 (Used only on 1390 Models)
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

43

Simplicity 2860551SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 2-1/2 (Used on all models Except 1390 Models)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 1922127SM

CAPSCREW, Hex Head 5/16-18 x 1-3/4 G5 (Used only on 1390 Models)
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

44

Simplicity 1668174SM

STOP, Belt
(Superseded to 703356)

$24.99

$

Usually ships in 2-12 days

0

45

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

46

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4 G5

$3.99

$

Usually ships in 2-12 days

0

48

Simplicity 1922128SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/2 G8

$4.49

$

Usually ships in 2-12 days

0

49

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

50

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

51

Simplicity 1726867SM

PULLEY, Engine Outside, Powdered Metal

$39.99

$

Usually ships in 2-12 days

0

52

Simplicity 1726866SM

PULLEY, Engine Middle, Powdered Metal

$52.99

$

Usually ships in 2-12 days

0

53

Simplicity 1726865SM

PULLEY, Half Powdered Metal

$42.99

$

Usually ships in 2-12 days

0
